Status Display and Error Messages of PS2
16 Status Display and Error
Messages of PS2

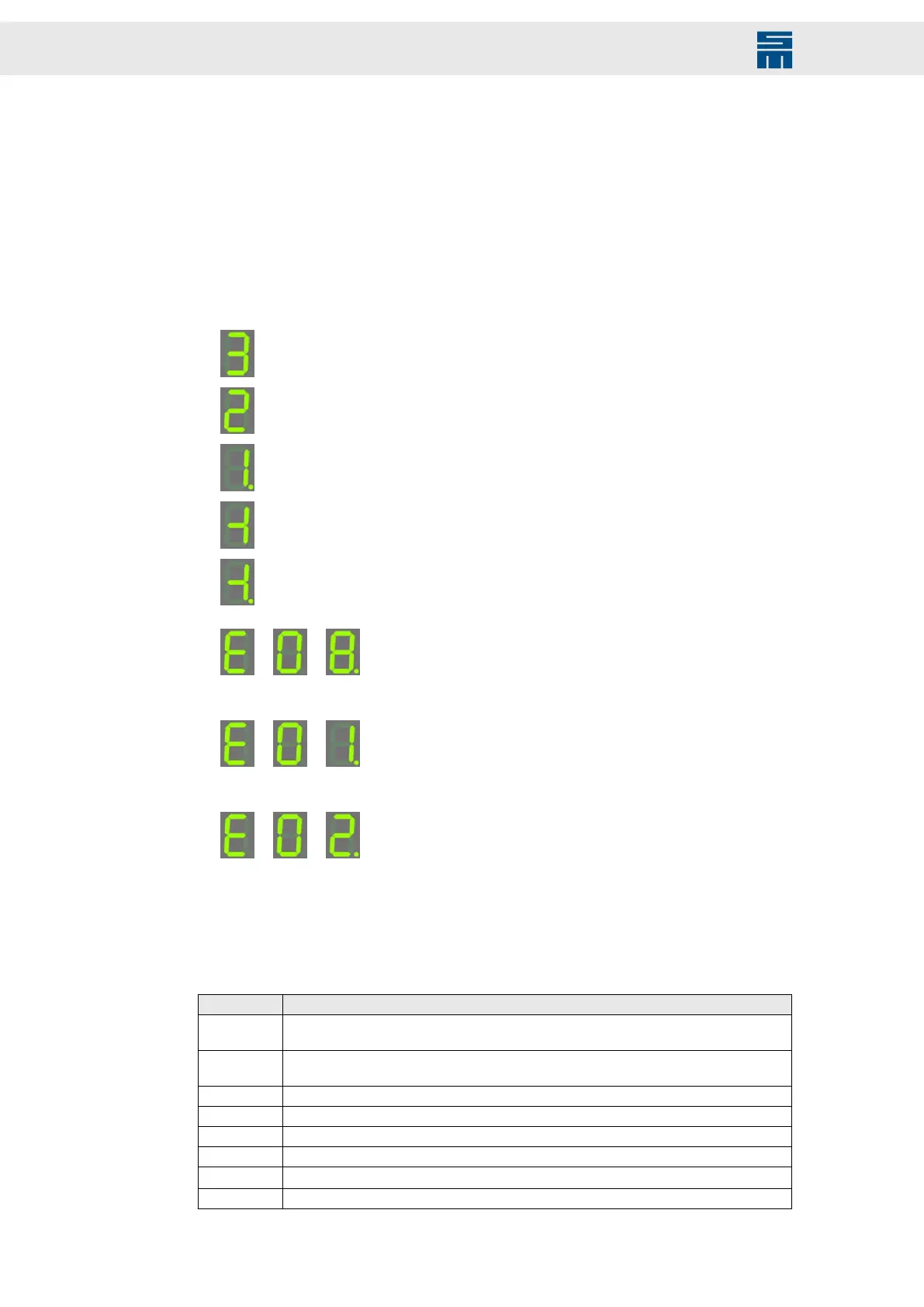

The 7-segment display shows status and error messages.
A status message is made up of 3 digits and displayed as sequence. All messages end
with dot behind the last digit. When the first digit is 'E.', there is a permanent error.
Examples:
1. Permanent display 3
▸
PS2 waits for mains supply.
2. Short-time display 2
▸
PS2 supply is in precharging mode of intermediate circuit.
3. Permanent display 1.
▸
PS2 is ready for operation.
▸
Dot indicates 'Mains phase monitoring OK'.
4.
▸
Mains supply disconnected, PS2 is still operating...
▸
Phase monitoring detected missing phase, parameterized switch-off
time is running.
5.
▸
Mains supply reconnected, PS2 is still operating ...
▸
All phases reconnected (indicated with dot), parameterized switch-
off time is running out, then the PS2 tries to switch on again with
precharging.
6.
→ →
Sequential display
▸
PS2 is not switched on due to error E08.
▸
Parameter set of PS2 is not valid. (delivery status, please enter valid
parameters)
7.
→ →
Sequential display
▸
PS2 is switched off due to error E01. Precharging of intermediate cir-
cuit failed in set time.
8.
→ →
Sequential display
▸
PS2 is switched off due to error E02. Overvoltage occurred.
16.1 List of the Operating States
Code Description
−1 Ready for operation, input voltage missing (Monitoring of mains phases has detected miss-
ing phase, the device is waiting for reconnection during the parameterized switch-off time.)
−1. Mains phases reconnected (Switch-off time is running out, afterward the device is switched
on again.)
1− Fix restart time delay of approx. 7 seconds (for device version 2.000 and higher)
1. Power supply unit is ready for operation
2 Precharging is active
3 Waiting for mains voltage
8 Discharge of DC link via ballast resistor is active (up to 7 s or UB < 20 V
DC
)
9 No valid parameters (Set the parameters, please.)
164 Drive System SD2 - Hardware Description
