Engineering and remote access
3.7 Web server
SITOP UPS1600 / UPS1100
150 Manual, 04.2017, A5E37775406-8-76
● OPC UA server activated
Define as to whether device can be accessed via the OPC UA interface. If the option is
activated, then the SITOP PSU8600 acts as OPC UA server.
● Unencrypted access activated
If the option is activated, then unencrypted access via the OPC UA client is possible.
Activating the option is not recommended.
● OPC UA server port
The preset port number is 4840. You can enter another port number.

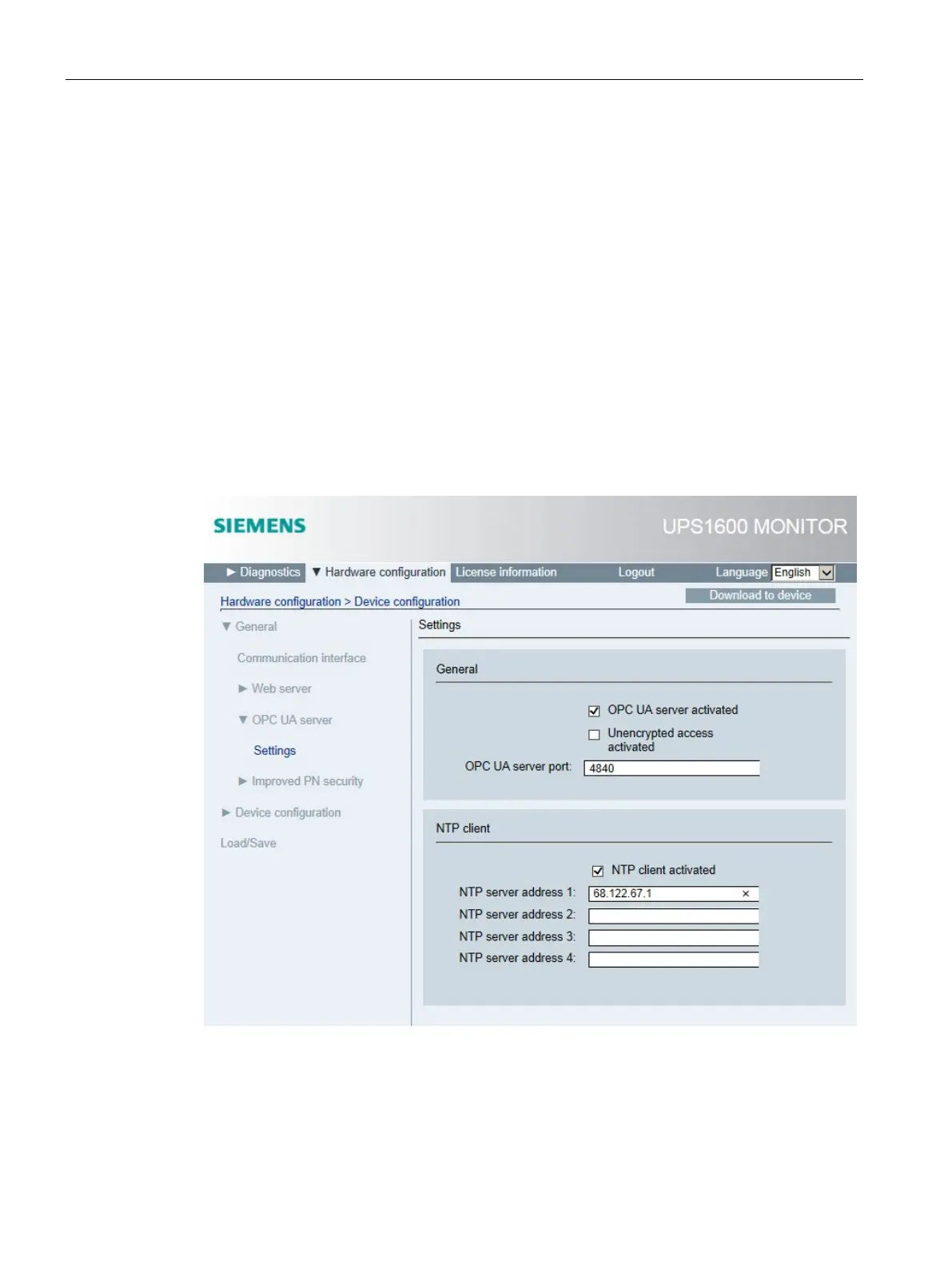

You configure the NTP client under "HW configuration > General > OPC UA server >
Settings".
If the NTP client is activated, then the local time is synchronized with the specified time of
the specified NTP server.
The NTP update interval is automatically and dynamically adapted between 64 seconds and
68 minutes 16 seconds.
