Mounting/removing
5.1 SITOP UPS1600
SITOP UPS1600 / UPS1100
188 Manual, 04.2017, A5E37775406-8-76

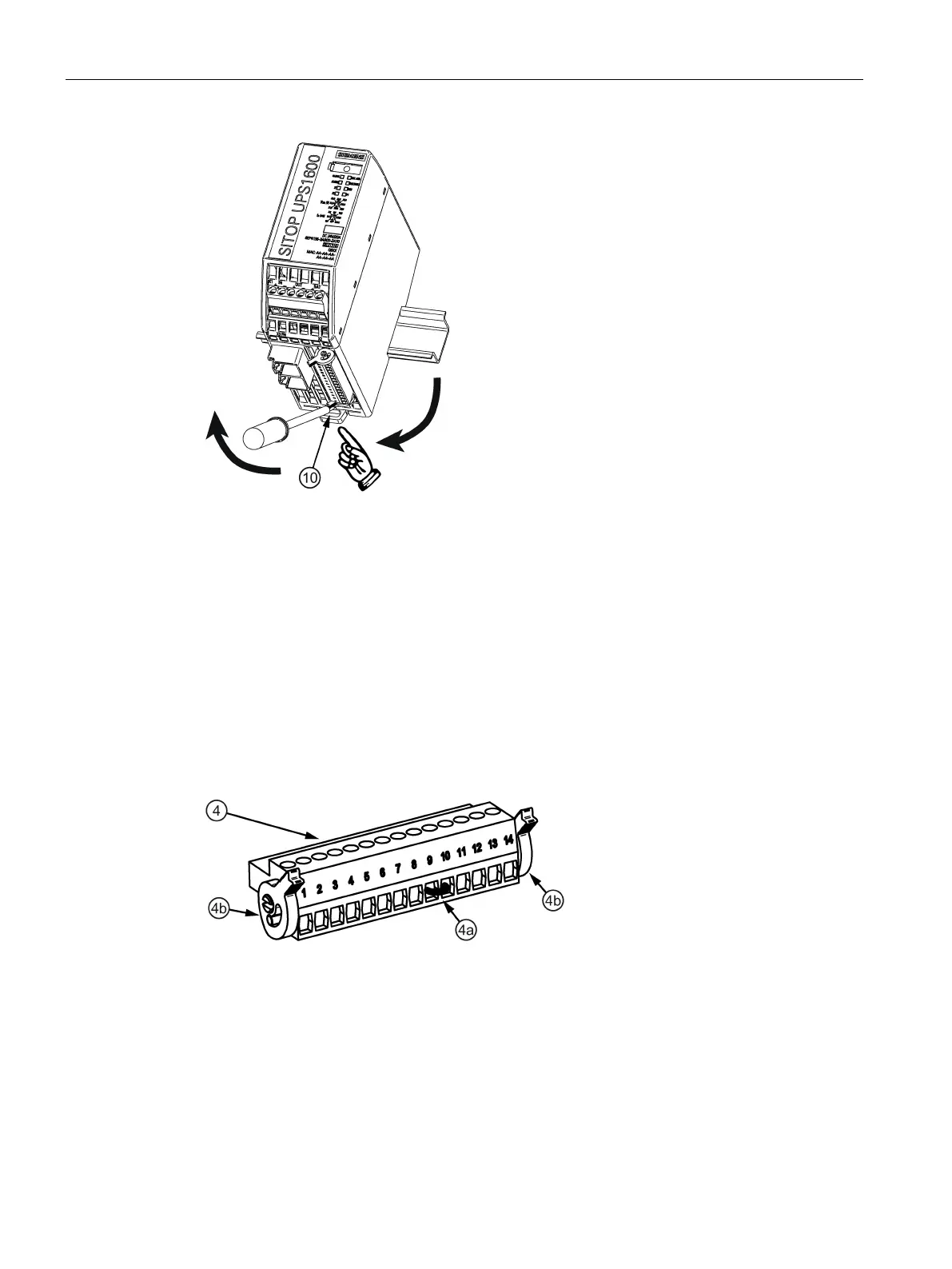

Figure 5-1 Removal (example 6EP4136-3AB00-2AY0)
Signal connector
Mounting
Push connector on socket ④ in the housing.
To remove the signal connector, press the release lever (4b) (see Figure 5-2
Mounting/removal: Signal connector (Page 188)) and then remove the connector.
Figure 5-2 Mounting/removal: Signal connector
