Engineering and remote access
3.3 SIMATIC STEP 7 in the TIA Portal
SITOP UPS1600 / UPS1100
54 Manual, 04.2017, A5E37775406-8-76

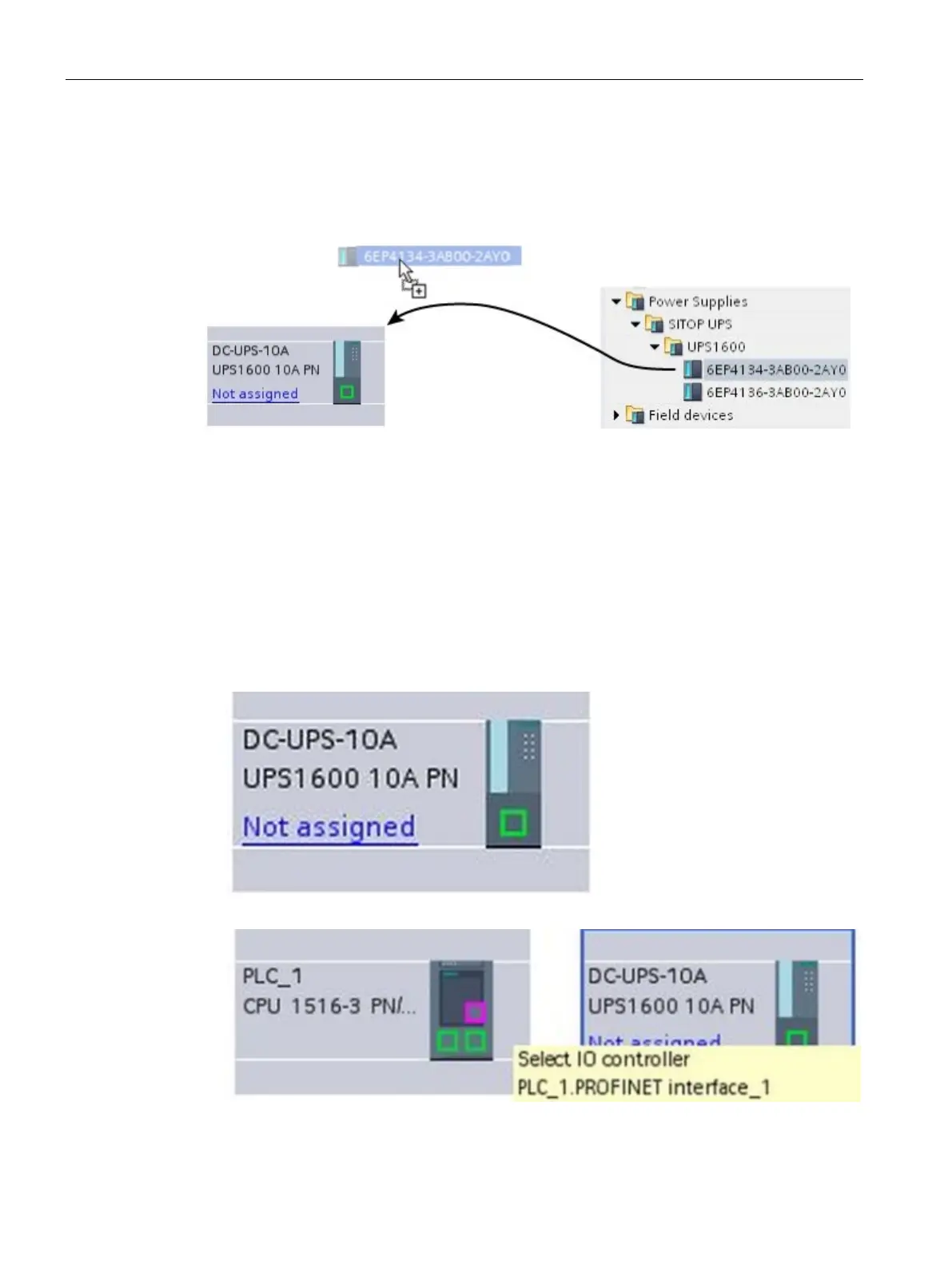

5. Select the required SITOP UPS1600 using a mouse click.
In the "Information" area you can see information about the selected SITOP UPS1600,
and if necessary change the preselected version.
6. Drag the SITOP UPS1600 and drop it into the Network view.
Alternatively, you can add the module to the Network view by double-clicking on the entry
in the hardware catalog.
You have now inserted the SITOP UPS1600 into the project. The rectangle displayed in
the network view symbolizes the SITOP UPS1600.
Assigning the SITOP UPS1600 to a controller
To be able to use the SITOP UPS1600 you must assign an IO controller as IO device.
1. Click in the network view on the blue lettering "Not assigned" at the left next to the symbol
of the SITOP UPS1600.
A menu opens with the available controllers.
2. Select a controller in the menu.
