Mounting/removing
5.1 SITOP UPS1600
SITOP UPS1600 / UPS1100
190 Manual, 04.2017, A5E37775406-8-76
PROFINET/Ethernet connector
For use in a hazardous zone, a PROFINET/Ethernet connector with strain relief must be
used.
Push the connector onto the socket in the housing until the strain relief (5b) snaps into the
housing (5a).
To remove the PROFINET/Ethernet connector, press to release the strain relief (5b) (see
Figure 5-4 Mounting/removal: Ethernet (Page 190)) and then remove the connector.

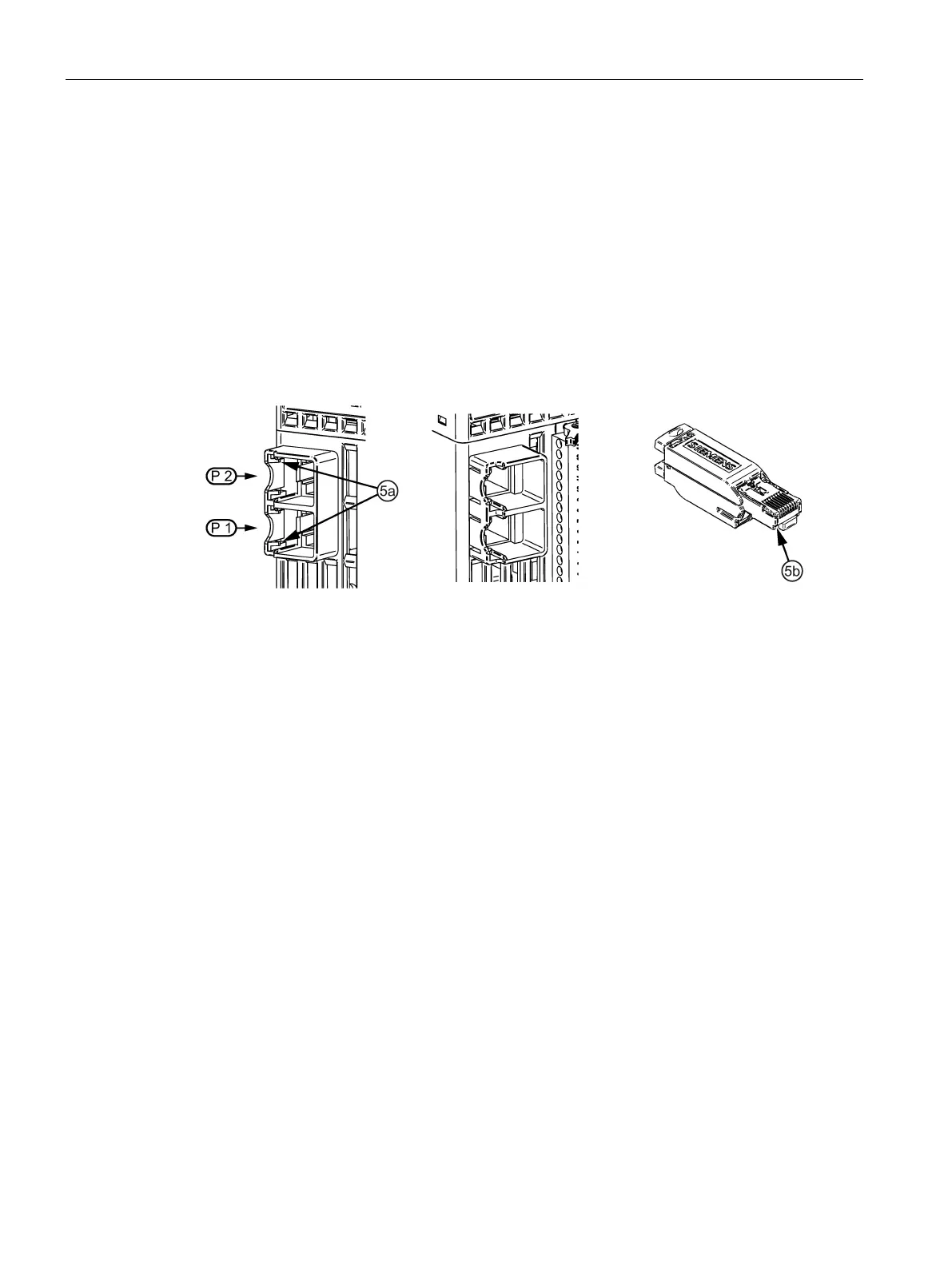

Figure 5-4 Mounting/removal: Ethernet
