Siemens 6EP4135-0GB00-0AY0

Description, device design, dimension drawing
2.1 Device description
SITOP UPS1600 / UPS1100
Manual, 04.2017, A5E37775406-8-76
17
①
DC input X1
②
DC output X1
③
BAT X1
④
Signal connector X2
⑤
PROFINET (Ethernet) interface X3 (only for ... - 2AY0)
⑥
USB interface X3 (only for ... - 1AY0)
⑦
Rotary coding switch, switch-in threshold
⑧
Rotary coding switch, buffer time
⑨
Signaling (LEDs)
⑩
DIN rail slider
⑪
Convection
⑫
Clearance above/below

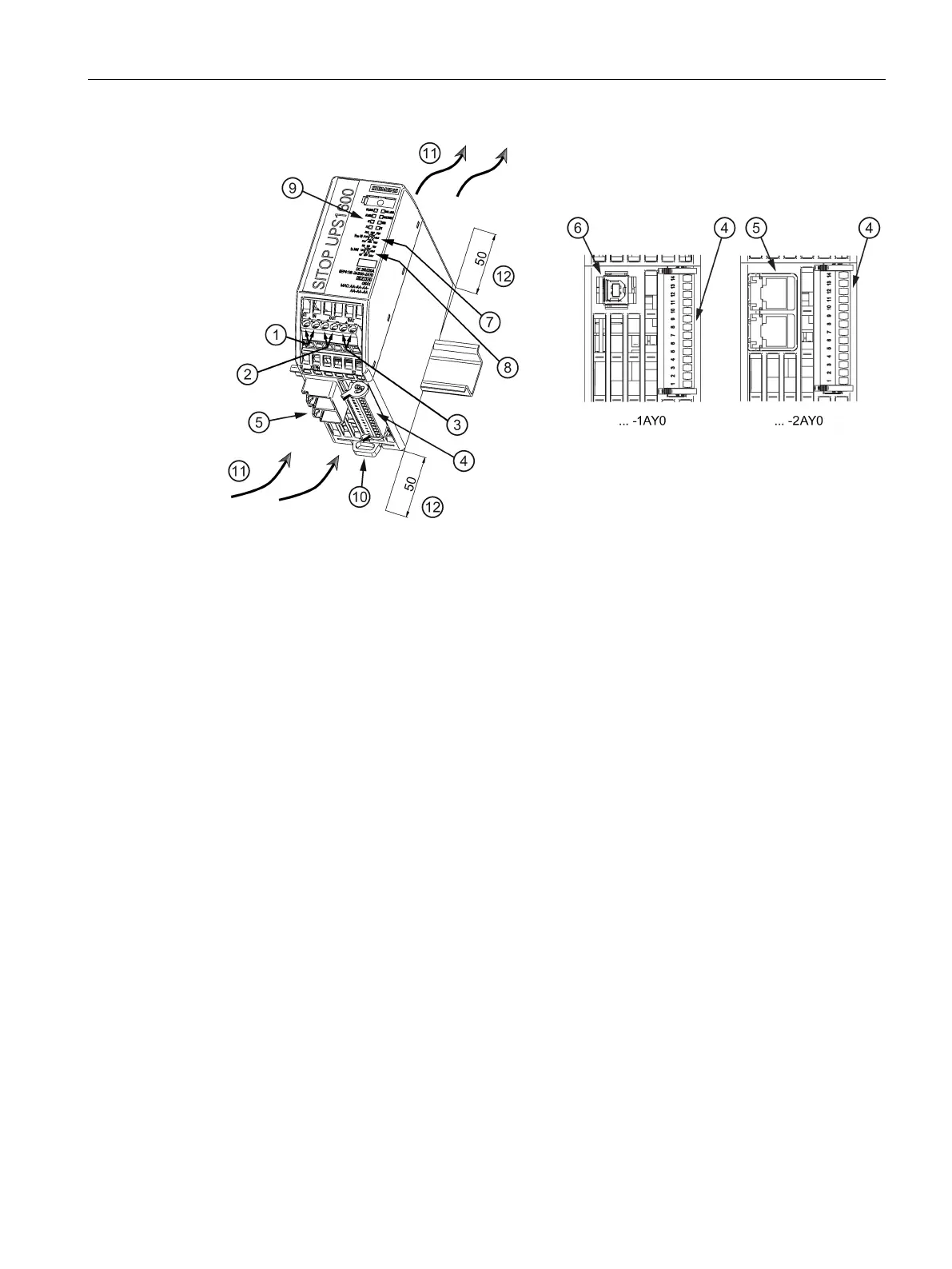

Figure 2-1 SITOP UPS1600 design (example 6EP4136-3AB00-2AY0)
