3.3 SIMATIC STEP 7 in the TIA Portal
SITOP UPS1600 / UPS1100
Manual, 04.2017, A5E37775406-8-76
59

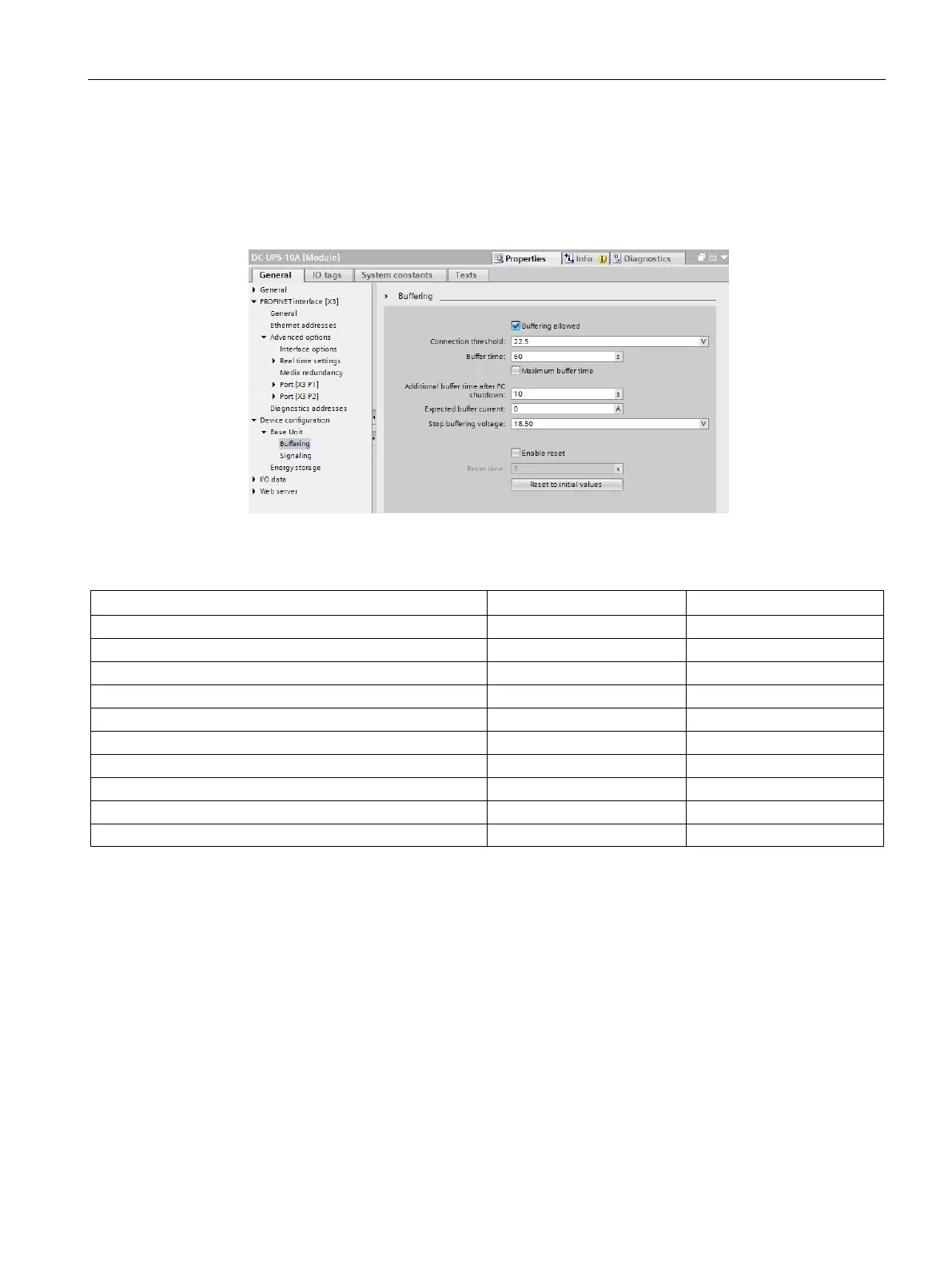

Proceed as follows
1. Select the SITOP UPS1600 in the Device view.
2. In the inspector window select "Properties > General > Device configuration".
Entries for parameterization are provided in the navigation area.
"Buffering" parameters
Parameter
Value range
Initial value
Buffering allowed
Yes / No
Yes
Connection threshold
21 - 25 V
22.5 V
Buffer time
1 - 32767 s
600 s
Maximum buffer time
1)
Yes / No
No
Additional buffer time after PC shutdown.
3)
1 - 300 s
60 s
Expected buffer current
1)
0 - 40 A
0 A
Stop buffering voltage
18 - 23 V
18.5 V
Enable reset
Yes / No
No
Reset time 1 - 120 s 5 s
Battery test interval
2)
1 - 65535 h
4 h
1)
Parameter only available from SW version V2.0 and higher
2)
Parameter only available from SW version V2.1 and higher
3)
valid from V2.0.4 or V2.1
●
Buffering permitted
When the connection threshold is fallen below, selects whether the system is buffered or
the output is shut down.
●
Switch-in threshold
Setting the switch-in threshold.
●
Buffer time
Length of time during which the system should be buffered by the SITOP UPS1600.
