Engineering and remote access
3.4 SIMATIC STEP 7
SITOP UPS1600 / UPS1100
Manual, 04.2017, A5E37775406-8-76
75

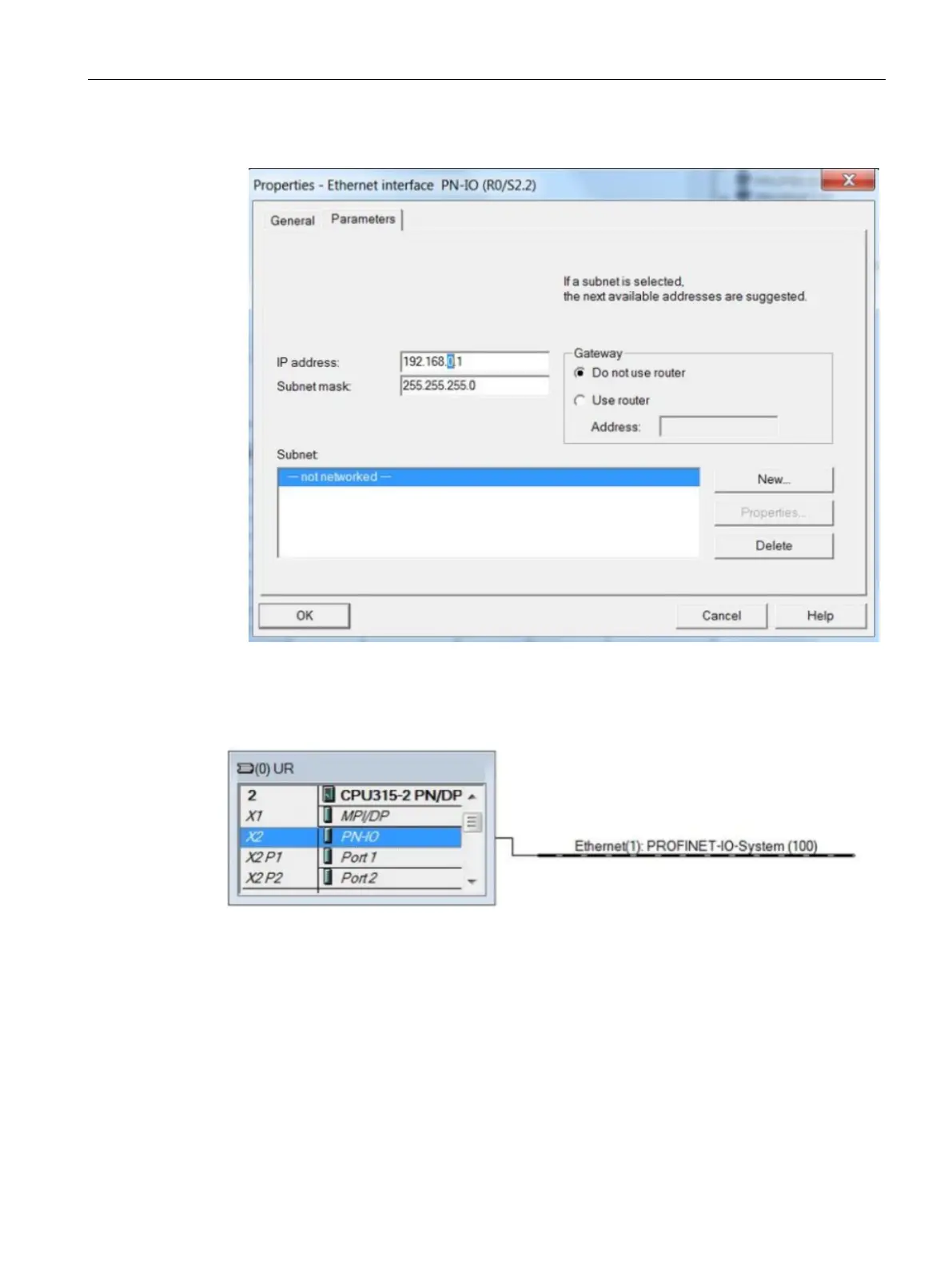

6. Create a new subnet.
7. Confirm the properties of the new subnet.
8. Close the "Properties - Ethernet interface PN-IO" dialog box.
The subnet is displayed as a horizontal line in the hardware view.
Inserting SITOP UPS1600 from the hardware catalog
1. Select the subnet.
2. Open the "Catalog" window using the "View > Catalog" menu command.
