Engineering and remote access
3.4 SIMATIC STEP 7
SITOP UPS1600 / UPS1100
84 Manual, 04.2017, A5E37775406-8-76

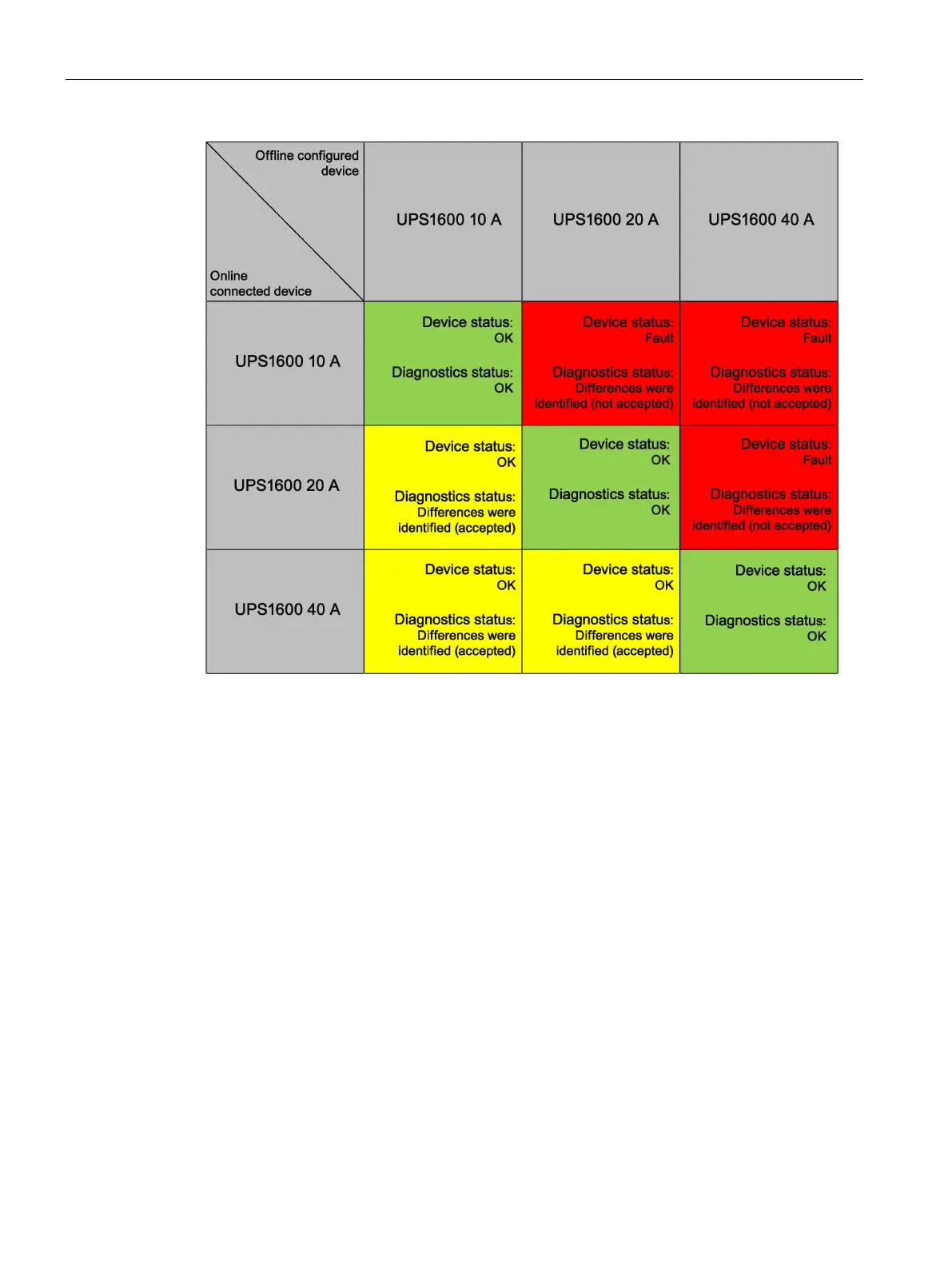

Figure 3-2 Online / offline
Allocating the SITOP UPS1600 a device name (online)
In order that the configured IO controller can address the SITOP UPS1600, you must assign
each individual IO device (including SITOP UPS1600) the configured device name.
For the procedure described below, the SITOP UPS1600 and the station for the PG/PC must
be accessible online on the Ethernet.
1. Open HW Config.
2. In the "Target system > Ethernet" menu, click on "Assign device name".
3. In the "Assign device name" dialog, in the "Device name" field, select SITOP UPS1600.
4. In the "Available devices" select the SITOP UPS1600. Using the "Flash" button, you can
flash the LED on the SITOP UPS1600 so that the device can be uniquely identified.
5. Click on the "Assign name" button.
After the name assignment, you can bring the IO controller into the RUN operating state.
When powering up, the IO controller distributes the configuration information to the
SITOP UPS1600 and then goes into cyclic operation.
