Commissioning
3.3 Preparing the connection to the SINAMICS
Connection of the SINAMICS S120 to the Technology CPU
28 Product Information, 09/2011, A5E00480378-04
SINAMICS S120: configuring the hardware
1. In HW Config, insert a SINAMICS S120 drive on PROFIBUS-DP (DRIVE).
To do this, select a SINAMICS S120 in the hardware catalog under
"SIMATIC-Technology \PROFIBUS DP (DRIVE) \Drives\SINAMICS".
2. In the "Properties" dialog, assign a PROFIBUS address (for example 4) and set
the device version to the current firmware version of the SINAMICS S120.
Note
The device version cannot be changed later in HW Config. A change can only be made in
S7T Config. To do this, mark the SINAMICS_S120 with the right mouse button and select
Target device > Device version.

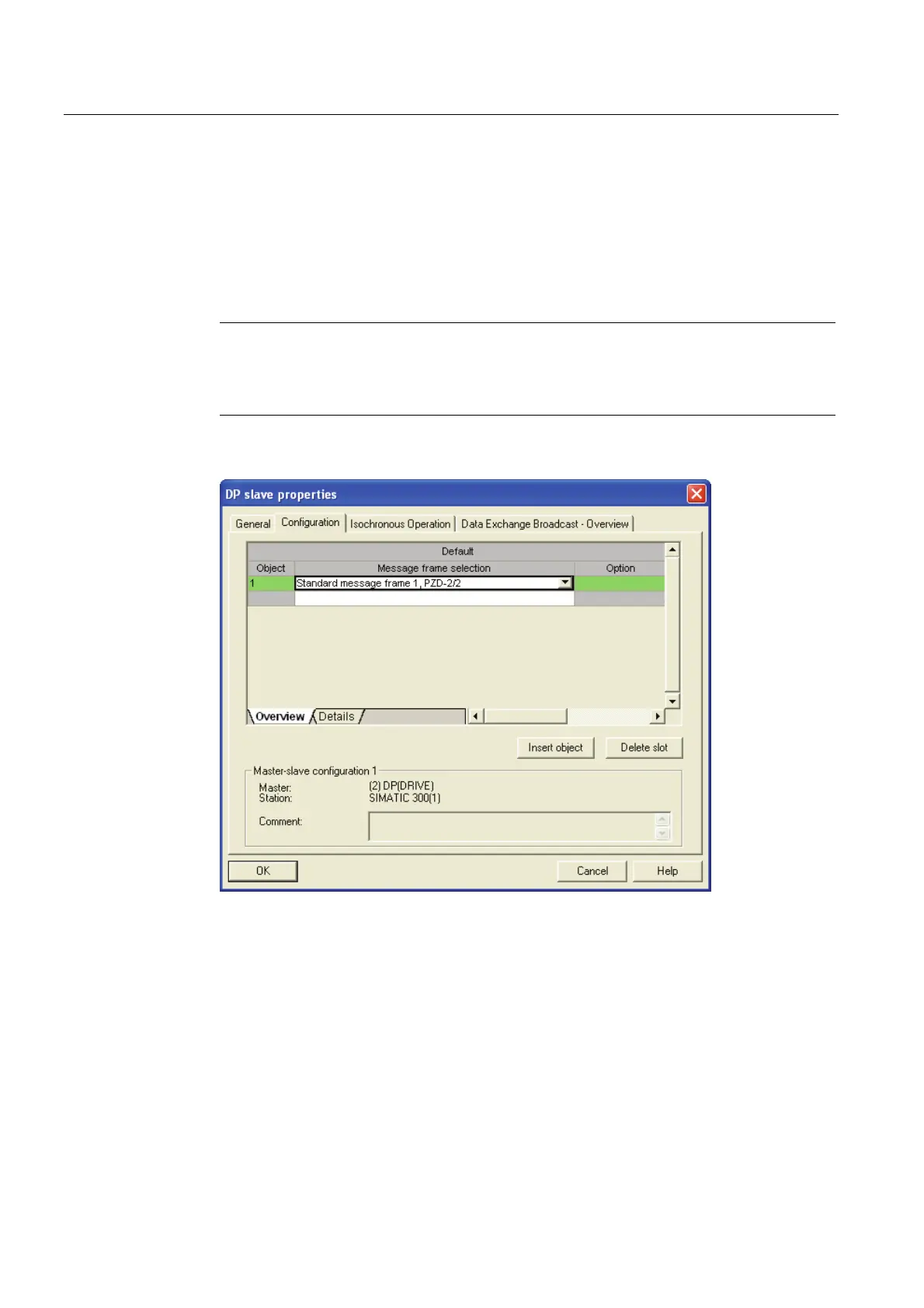

3. Accept the properties without change in the "DP Slave Properties" dialog in the
"Configuration" tab. The properties can be entered at a later time using S7T Config.
