6.1 Instructions for EMC-compliant drive installation
SINAMICS DCM DC Converter
100 Operating Instructions, 12/2018, A5E34763375A
Connecting shields on the SINAMICS DC MASTER

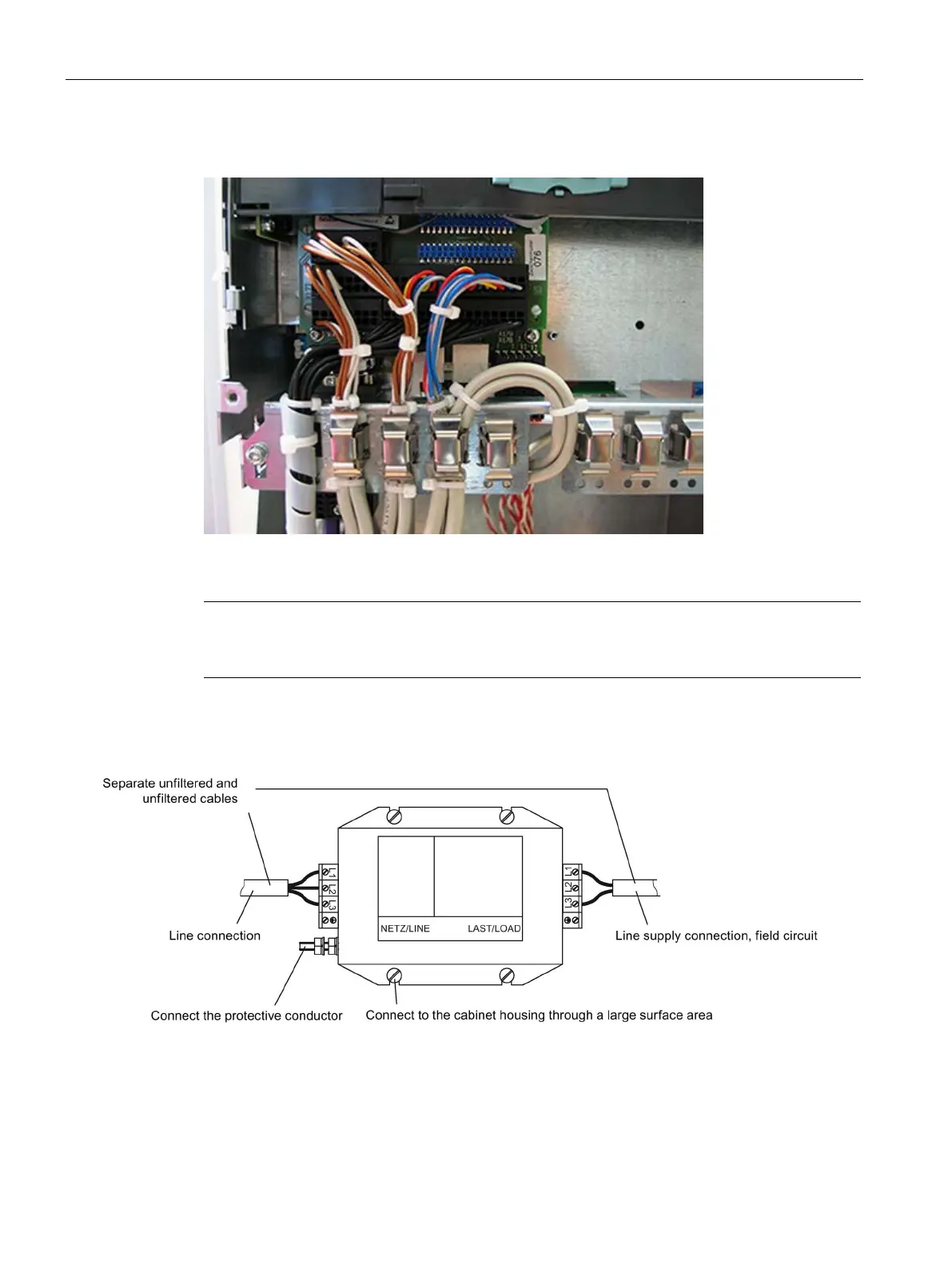

Figure 6-6 Connecting shields
Note
The strain relief of shielded cables and th
e shield support must be mechanically decoupled
Radio interference suppression filters for the field circuit
Figure 6-7 RFI suppression filter
