Descriptions of functions
10.28 Connecting units in parallel and in series
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
609
12-pulse parallel connection
Note
12-pulse applications
The circu
it diagrams in this chapter are block diagrams.
You can find detailed information on interconnecting, dimensioning and parameterizing in the
application document
"12-pulse applications".
Support is also available through our Technical Support organization
(for contact address,
"Preface (Page 3)").

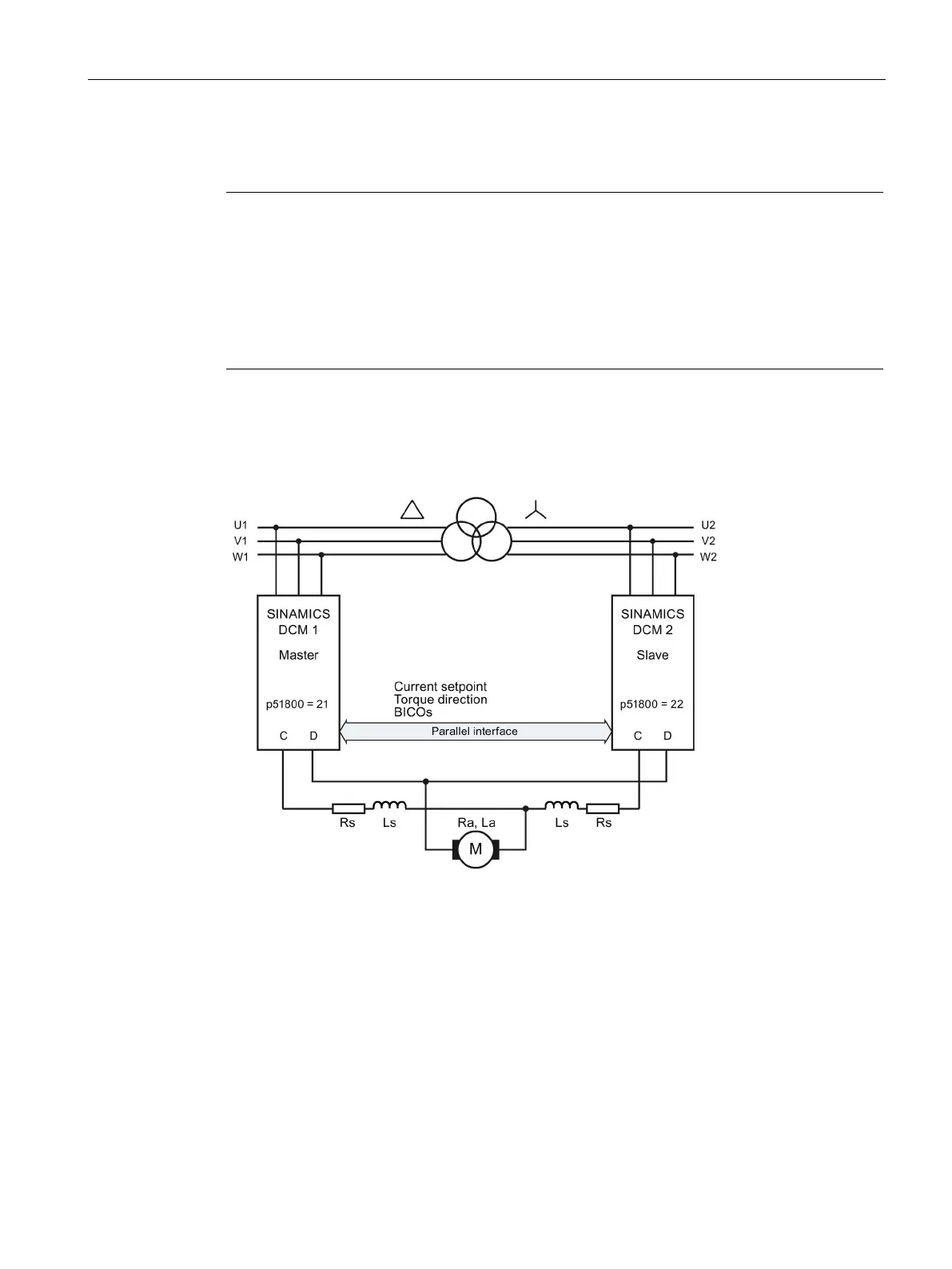

The following diagram shows the topology of a 12-pulse parallel connection.
Figure 10-77 12-pulse parallel connection (1), block diagram
The following diagram shows the topology of a 12-pulse parallel connection, where an
additional 6-pulse converter is connected in parallel to each of the two 12-pulse converters
connected in parallel.
