Descriptions of functions
10.4 Communication via PROFIBUS DP
SINAMICS DCM DC Converter
472 Operating Instructions, 12/2018, A5E34763375A
Commissioning of the PROFIBUS slave-to-slave communication
The commissioning of direct data exchange between two SINAMICS drives using the
additional Drive ES Basic package is described below.
The project below is used to describe the settings in HW Config.

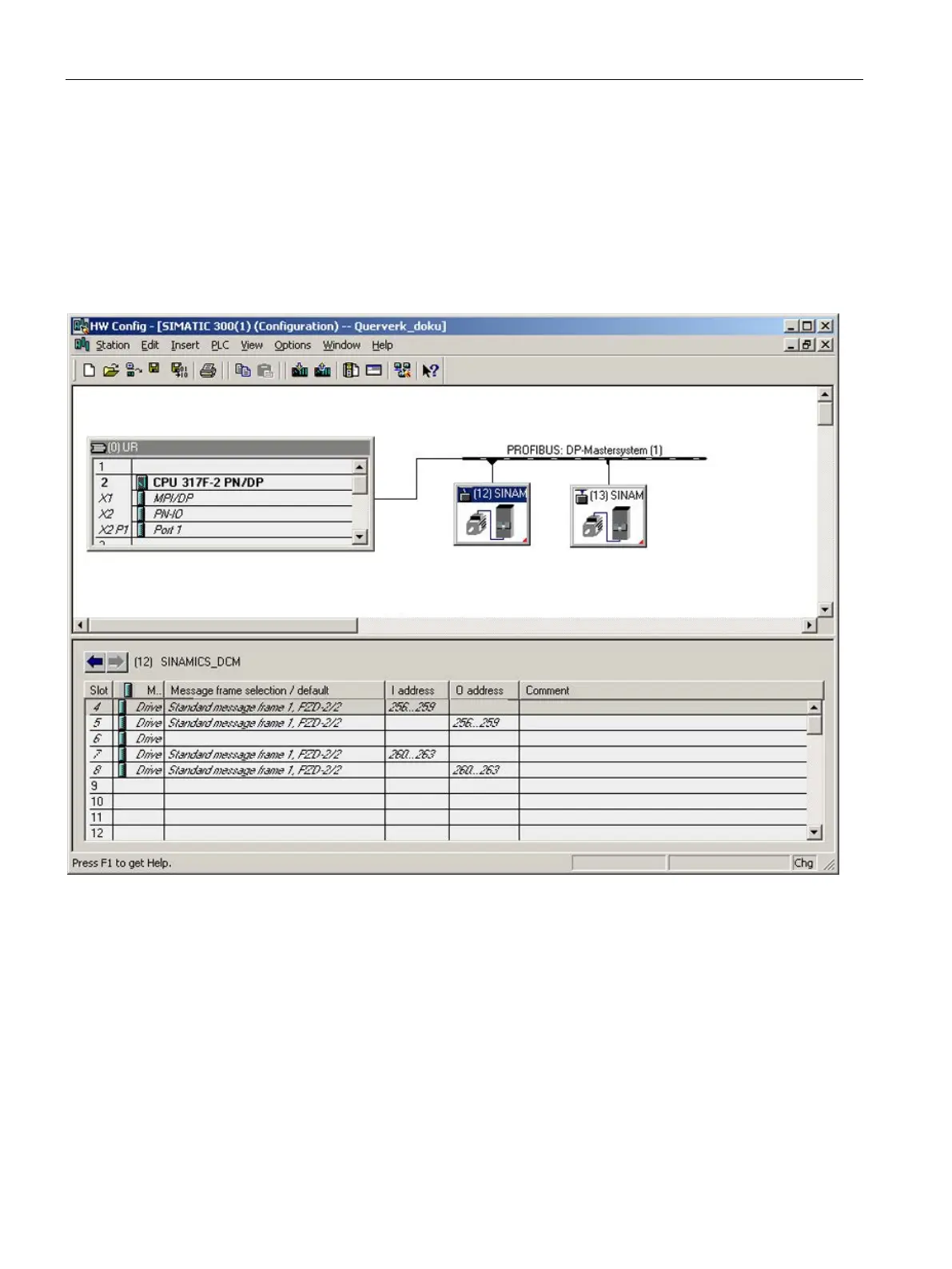

Figure 10-19 Example project of a PROFIBUS network in HW Config
