SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
349
Parameter
Parameter types
The following adjustable and display parameters are available:
● Adjustable parameters (can be written and read)
These parameters have a direct effect on how a function responds.
Example: Ramping time of a ramp-function generator
● Display parameters (can only be read)
These parameters are used to display internal variables.
Example: Actual motor current

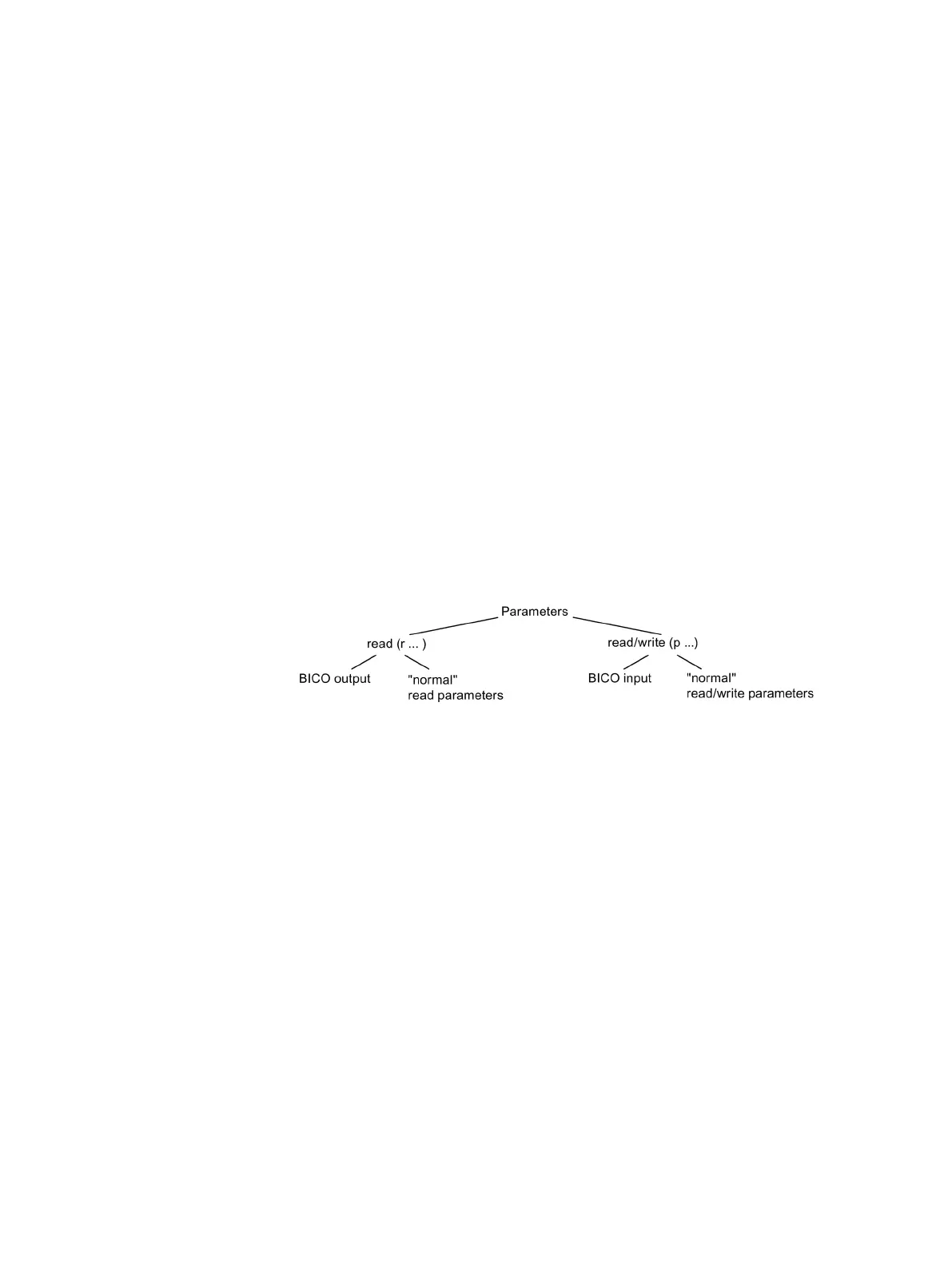

Figure 9-1 Parameter types
All these drive parameters can be read via PROFIBUS and changed by means of p
parameters using the mechanisms defined in the PROFIdrive profile.
