6.2 Cable routing into the unit
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
111
Note: PROFINET is only available with Communication Board(s) CBE20
PROFINET cable (4 connections on each CBE20)

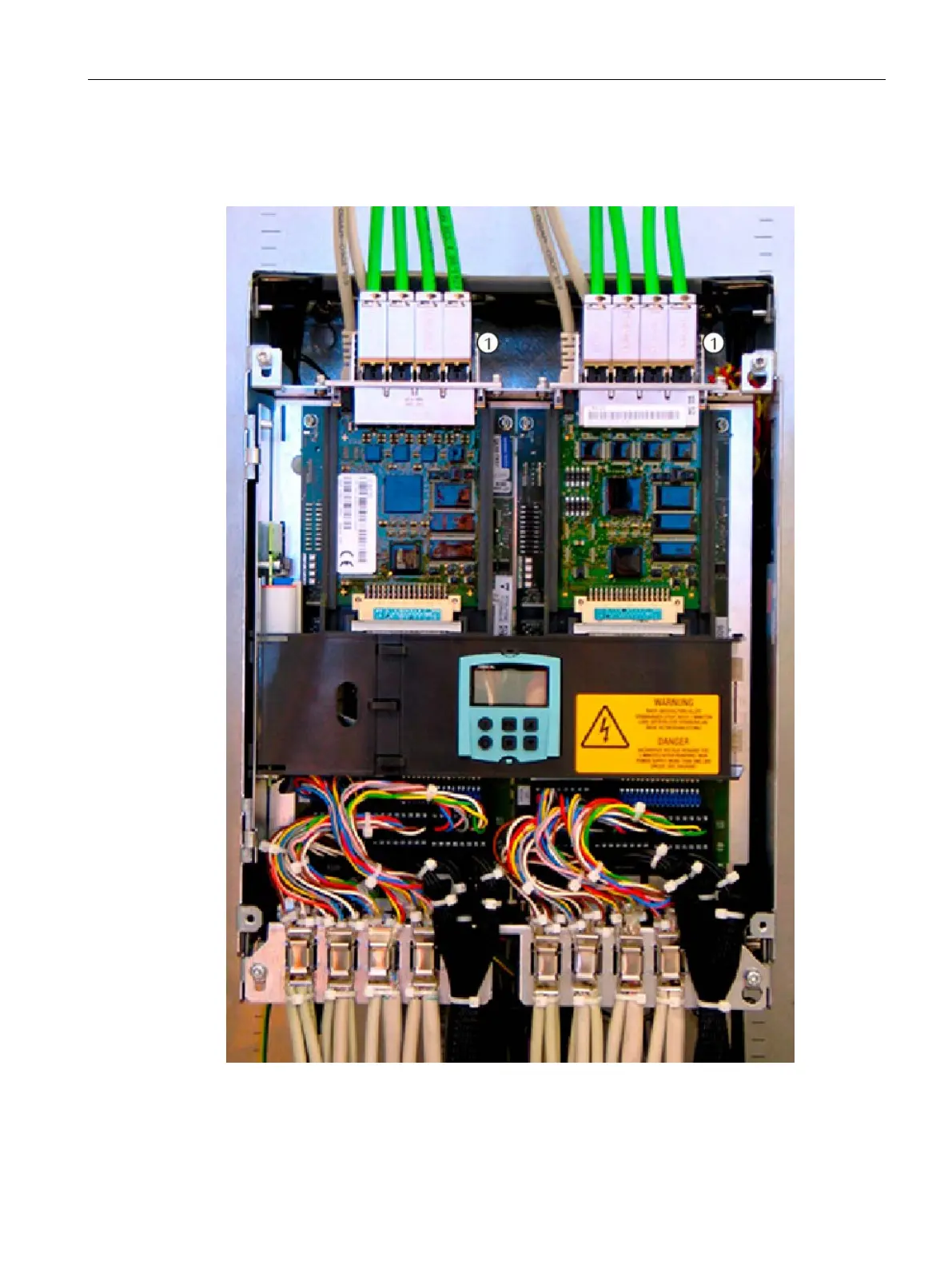

Figure 6-14 Routing PROFINET cables in devices ≤ 280 A
