Connecting
6.4 Power connections
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
139

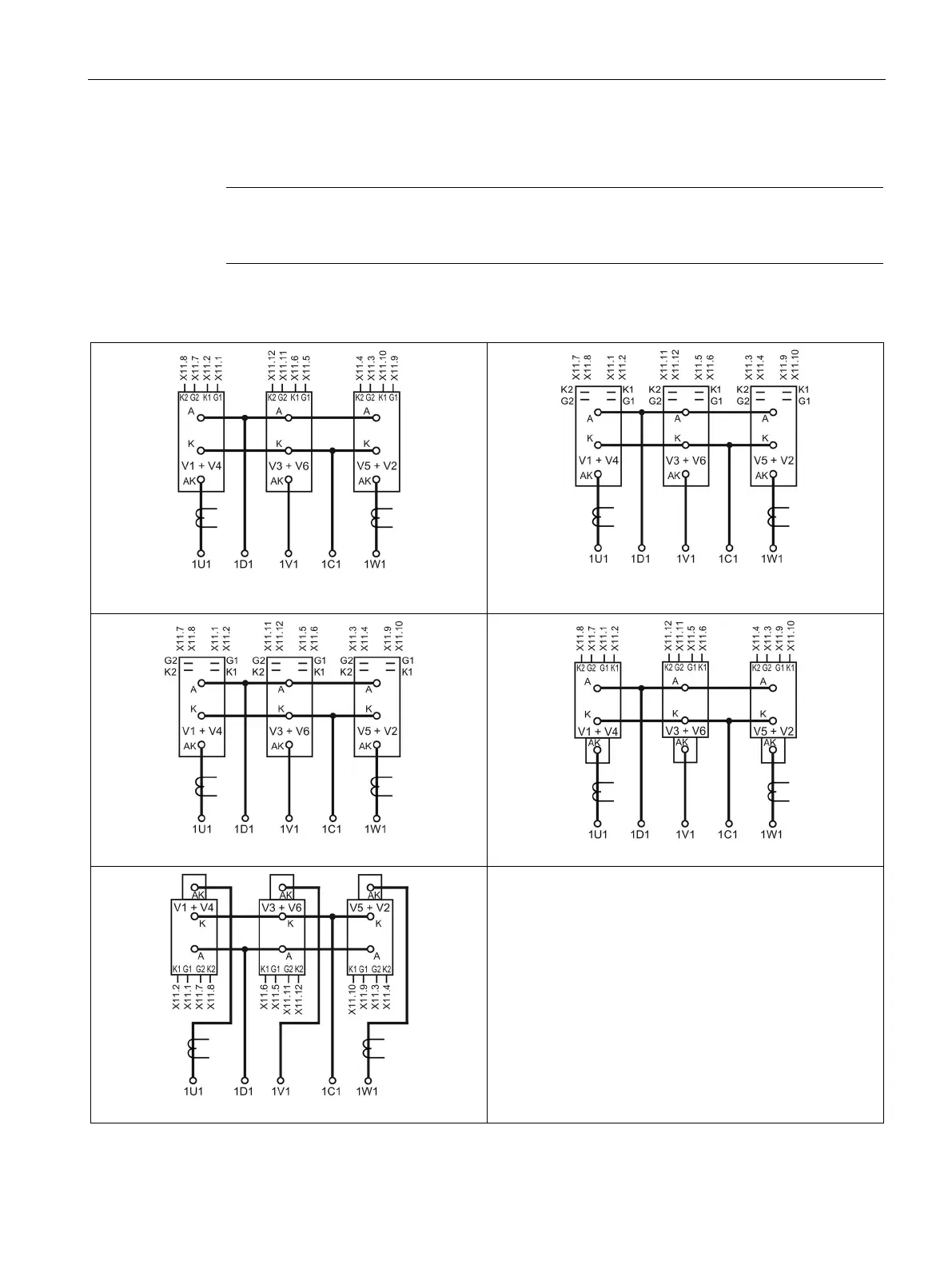

Arrangement of thyristor modules
Note
The following drawings only show how the thyristor modules are arranged and the positions
of the connections. They do not take into account the frame sizes of the modules.
2Q devices
60 A, 400 V/90 A, 125 A, 210 A,
480 V/90 A, 125 A, 575 V/125 A, 210 A
480 V / 210 A
575 V / 400 A
480 V/280 A, 575 V/280 A, 400 V/400 A
480 V/450 A, 400 - 575 V/600 A
720 - 850 A
