6.8 Arrangement of terminals and connectors
SINAMICS DCM DC Converter
166 Operating Instructions, 12/2018, A5E34763375A

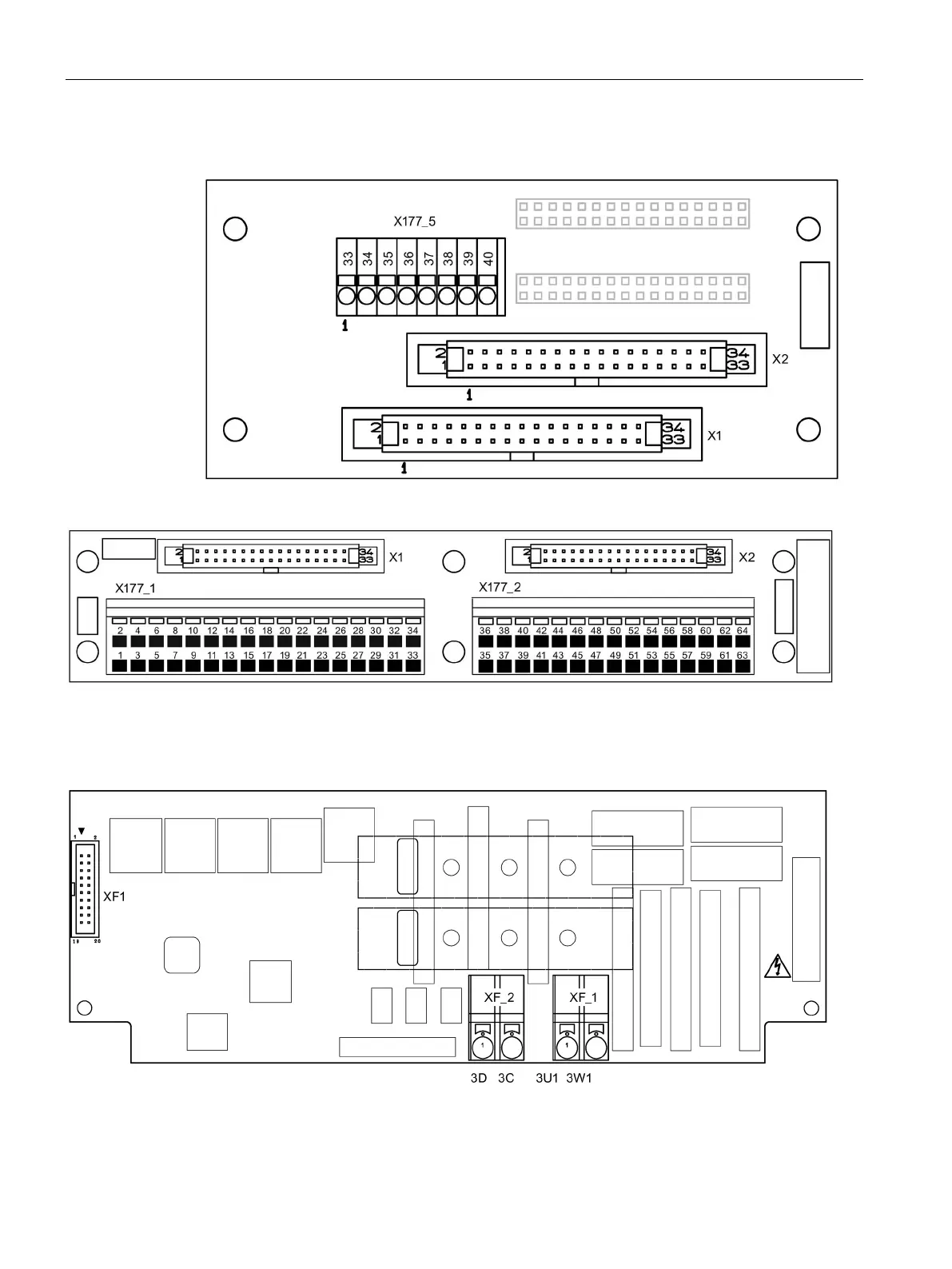

Figure 6-54 Terminal/connector arrangement on the "Cabinet Board"
Figure 6-55 Terminal arrangement on the "Terminal Module Cabinet (TMC)"
Module – 10 to 30 A field module
Figure 6-56 Terminal/connector arrangement on the "10 to 30 A field module"
