Additional system components
7.2 SMC10 Sensor Module Cabinet-Mounted
SINAMICS DCM DC Converter
198 Operating Instructions, 12/2018, A5E34763375A
SMC10 Sensor Module Cabinet-Mounted
7.2.1
The Sensor Module Cabinet-Mounted SMC10 is an expansion module for snapping on to a
standard mounting rail acc. to EN 60715. It evaluates encoder signals and transmits the
speed, actual position value and the rotor position via DRIVE-CLiQ to the Control Unit.
The SMC10 is used to evaluate sensor signals from resolvers.
Interface description
7.2.2.1

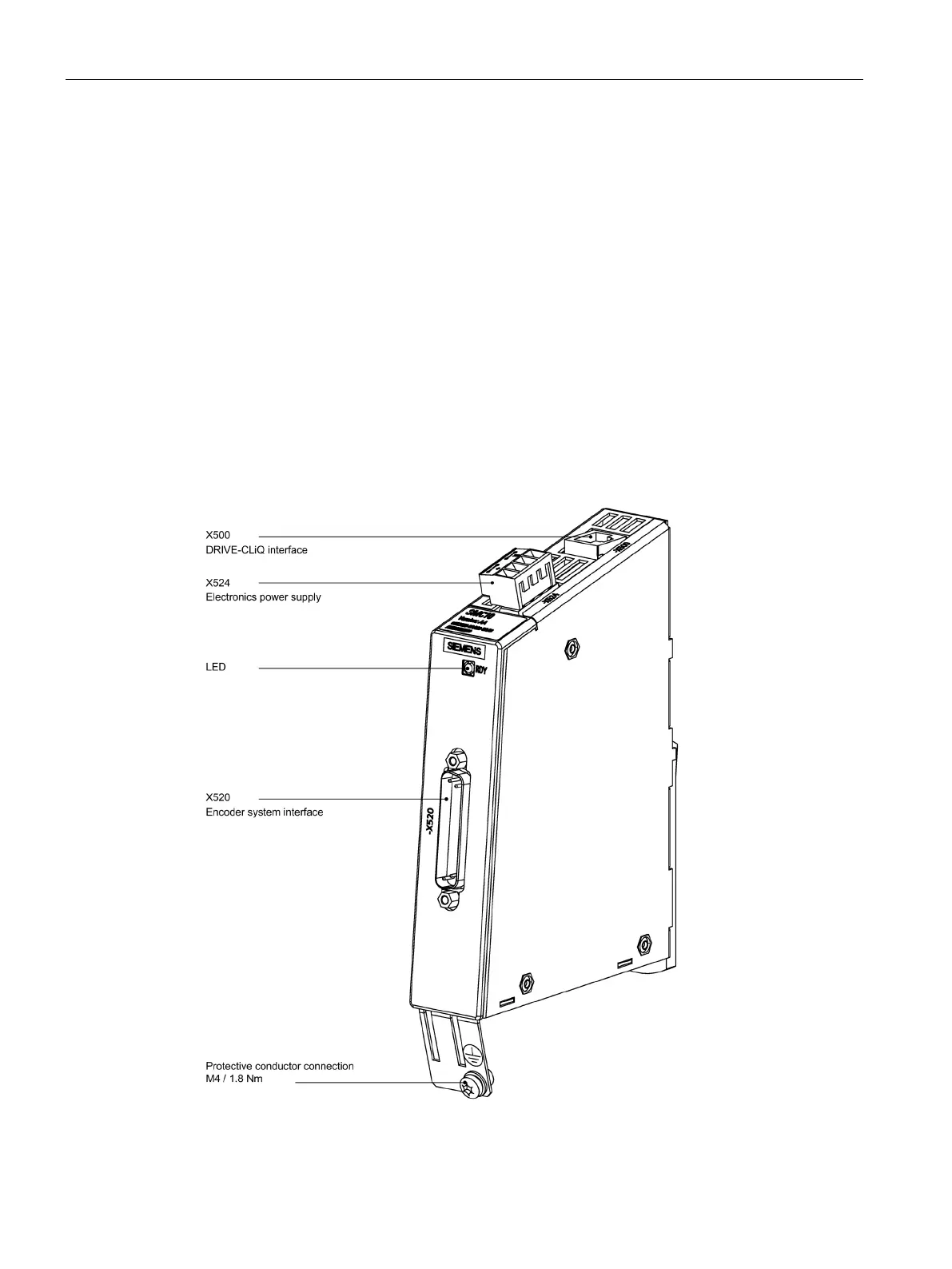

Figure 7-2 Interface overview for the SMC10
