Additional system components
7.3 Sensor Module Cabinet-Mounted SMC30
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
215

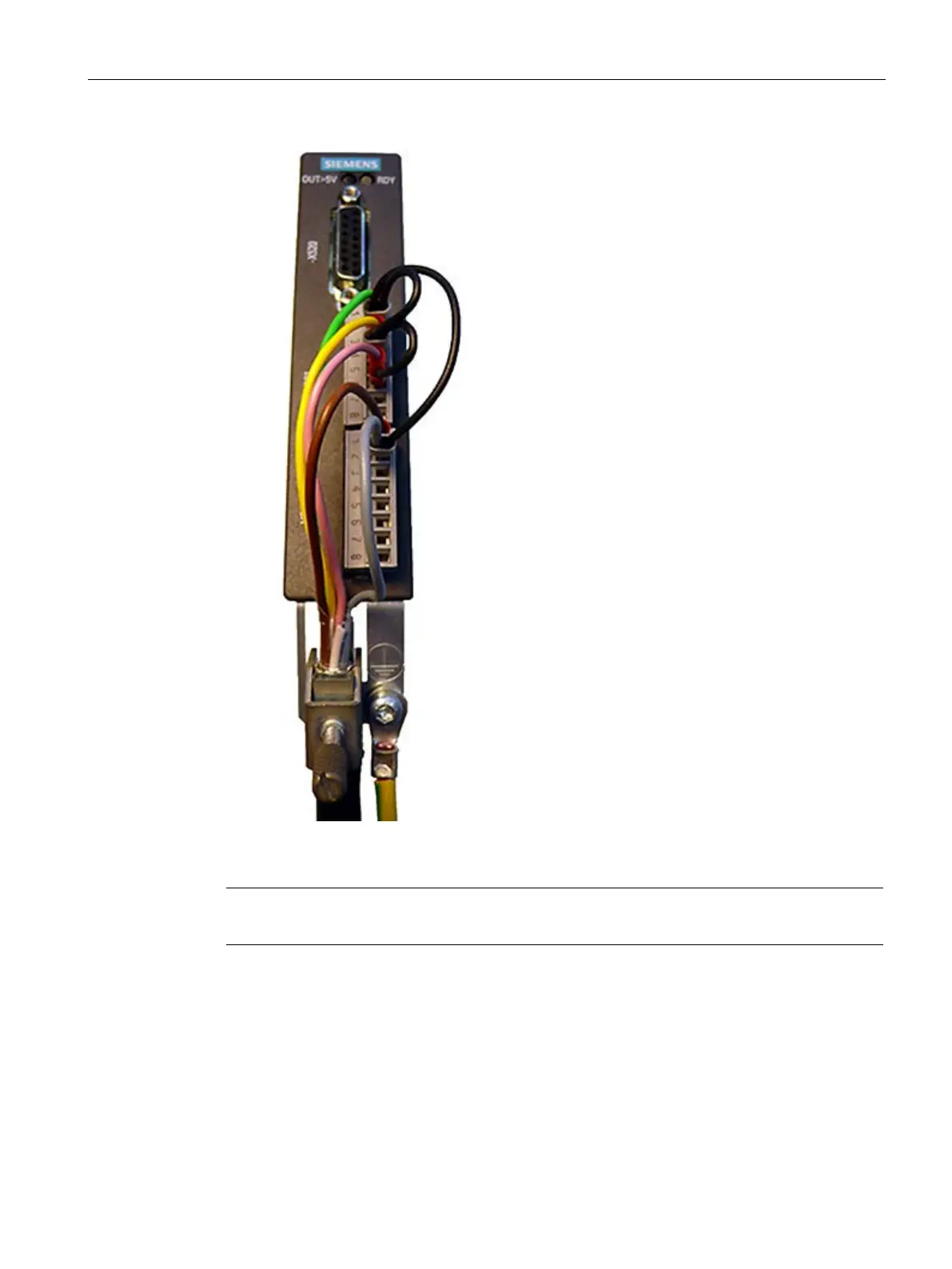

Figure 7-10 Connection example 2
Note
Diagram of the wire jumpers for connecting unipolar HTL encoders with reference signal.
