Additional system components
7.5 Terminal Module TM31
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
253
To ensure that identical connectors are assigned correctly on the TM31, the connectors are
coded as shown in the diagram below.

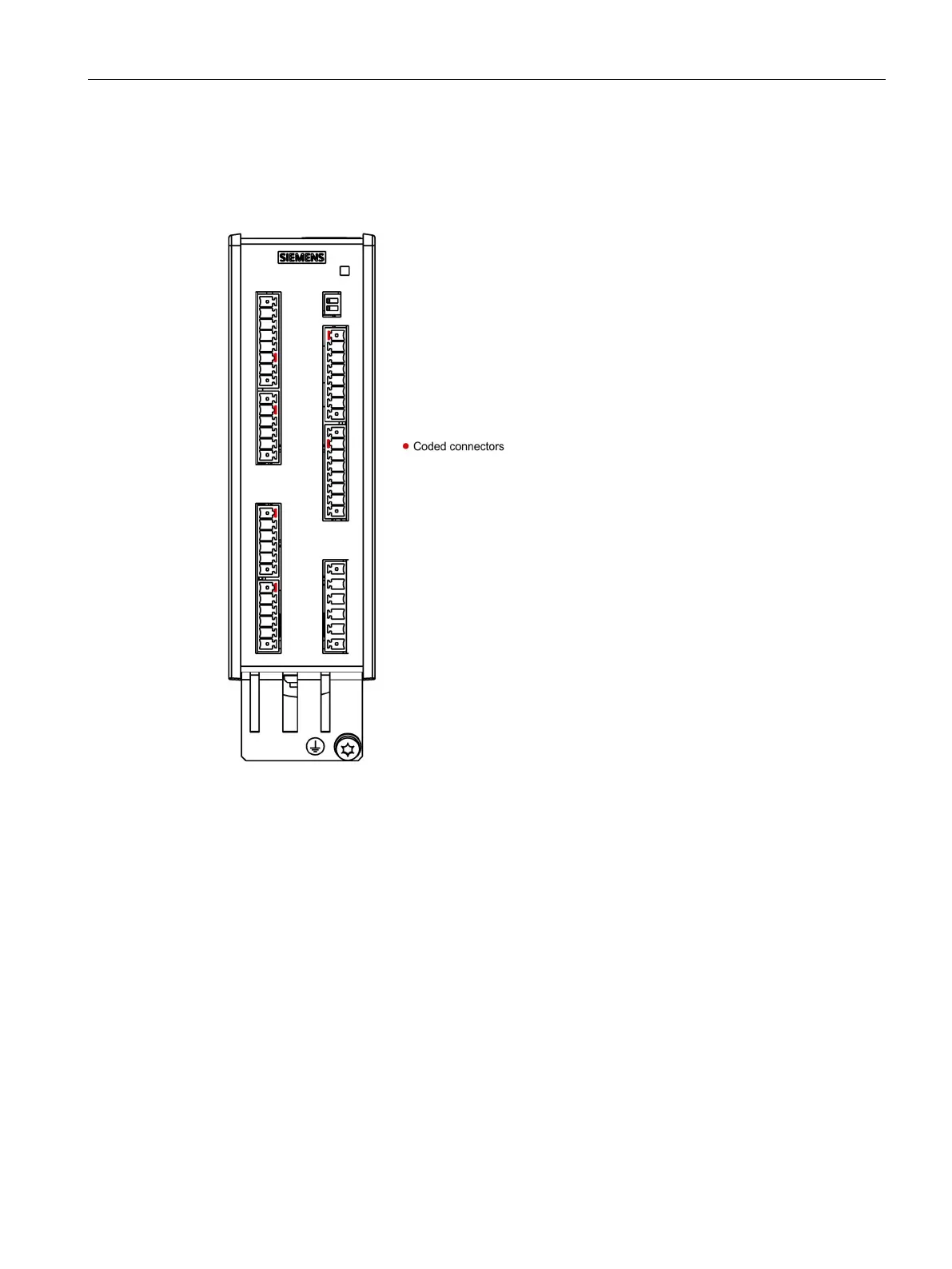

Figure 7-29 Example of connector coding at the TM31
The bending radii of the cables must be observed (see MOTION-CONNECT description).
