Siemens 6RA8018-6DV62

Commissioning
8.5 Commissioning with the STARTER commissioning tool
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
311

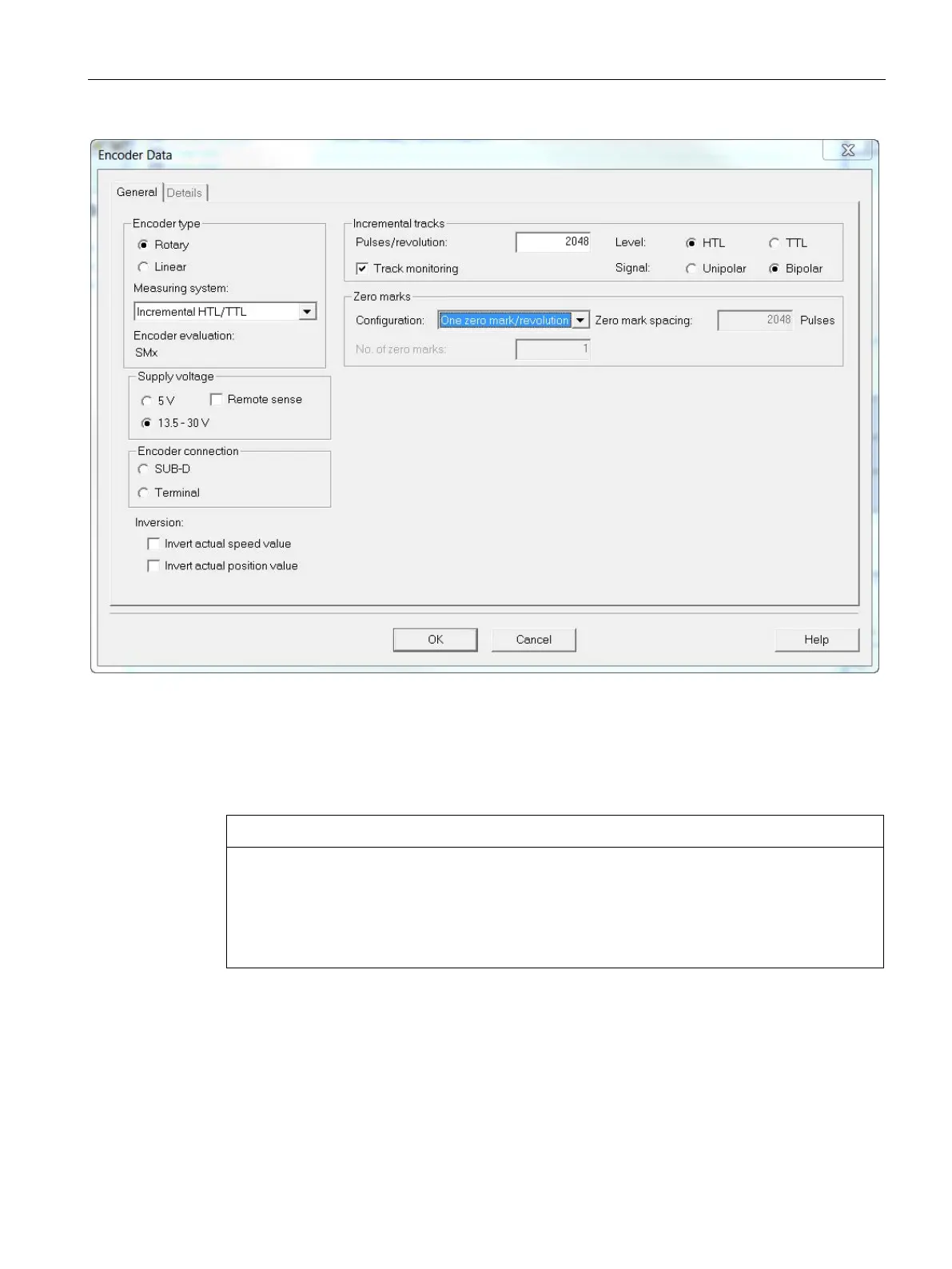

Figure 8-26 Entering encoder data – Pulse encoder via SMC30
⇒ Select the
encoder connection
(SUB-D /terminal).
⇒
Enter the required encoder data.
⇒ Click on
OK
NOTICE
Material damage when selecting the incorrect encoder supply voltage
Once the encoder has been commissioned, the supply voltage (5 V / 13.5 - 30
V) set for the
encoder is activated on the SMC30 Module. If a 5 V encoder is connected and the supply
voltage has not been set correctly, the encoder may be damaged.
• Set the correct supply voltage for the connected encoder.
⇒ Click on
Next
>
