3. Then go to the detail view.
Slots 4/5 contain the actual value / setpoint for the drive object.
Slots 7/8 are the telegram portions for the actual value / setpoint of the CU.

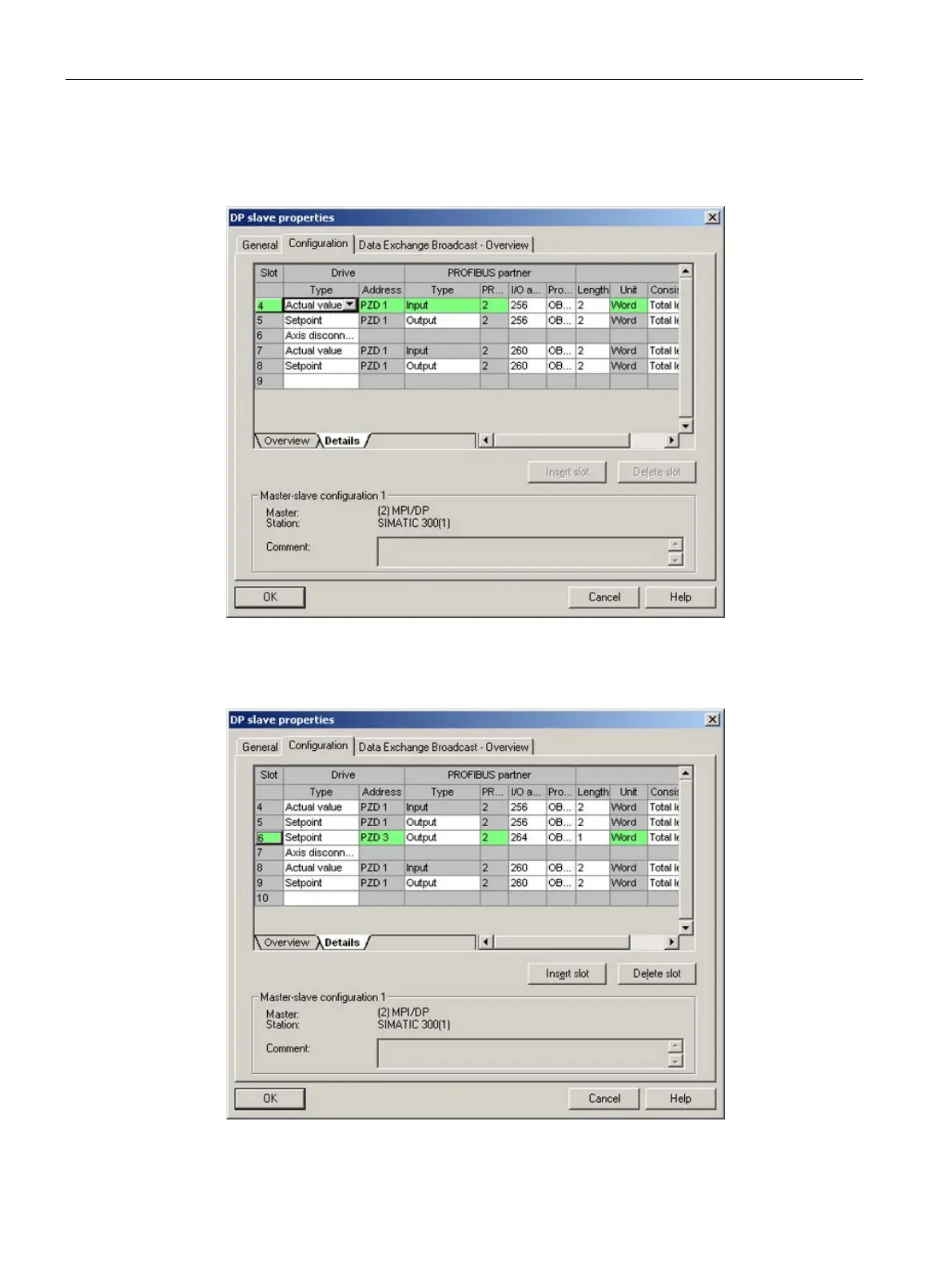

Figure 10-21 Detail view of slave configuration
4. The "Insert slot" button can be used to create a new setpoint slot for the SINAMICS DCM
drive object.
Figure 10-22 Insert new slot
