Descriptions of functions
10.4 Communication via PROFIBUS DP
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
479

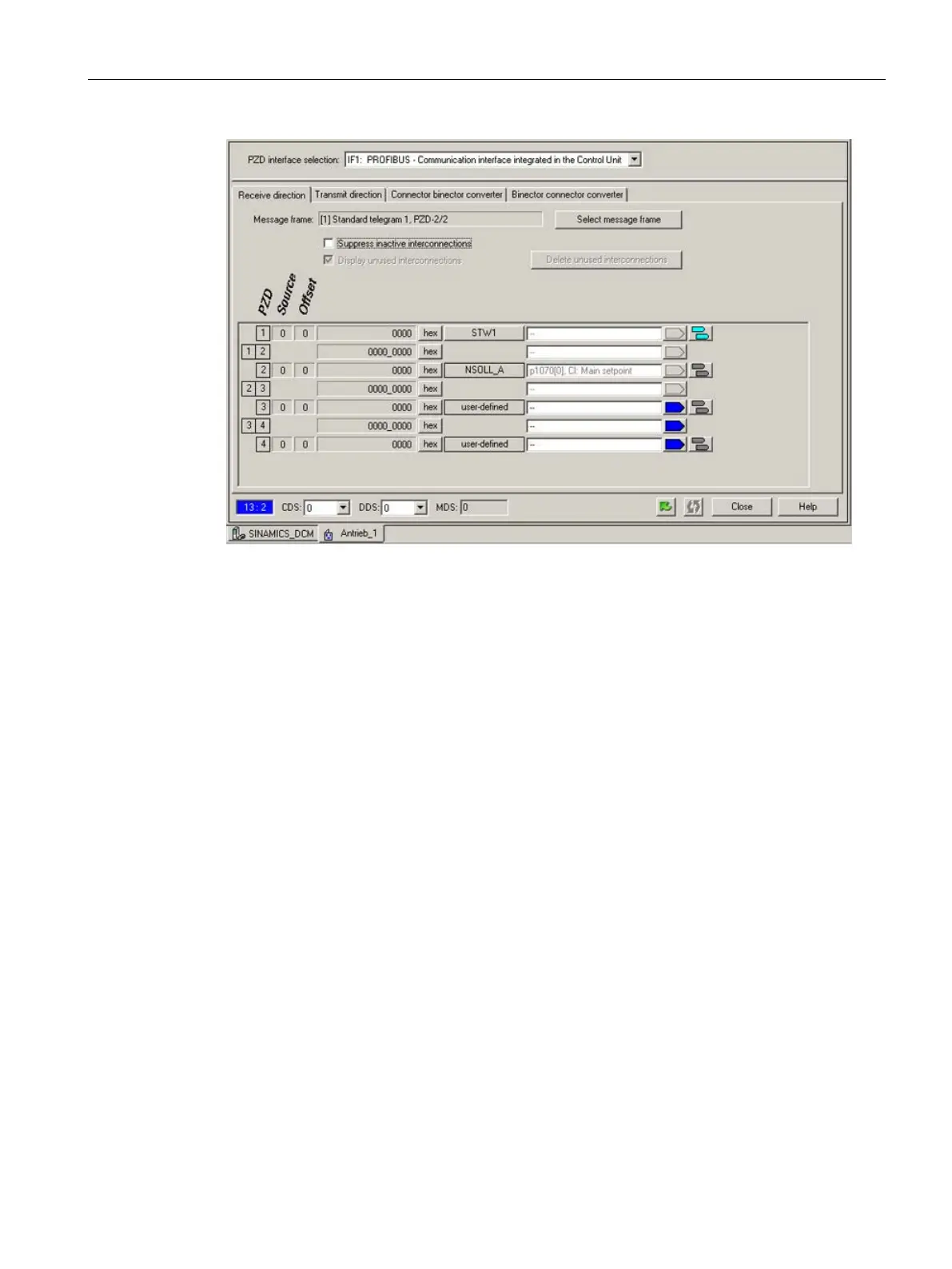

Figure 10-29 Configuring the PROFIBUS direct data exchange in STARTER
To connect the drive objects to the process data which is received via direct data exchange,
you also need to connect the appropriate connectors to the corresponding signal sinks. A list
for the connector shows all signals that are available for interconnection.
