Descriptions of functions
10.5 Communication via PROFINET IO
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
487
Setting the interface in STARTER
In STARTER, you set communication via PROFINET as follows:
1. Call the menu "Tools > Set PG/PC interface ...".
2. Select the "Access point of the application", and therefore the interface parameter
assignment (in the example we use the access point "S7ONLINE (STEP 7)" and the
interface parameterization "TCP/IP(Auto) -> Belkin F5D 5055").

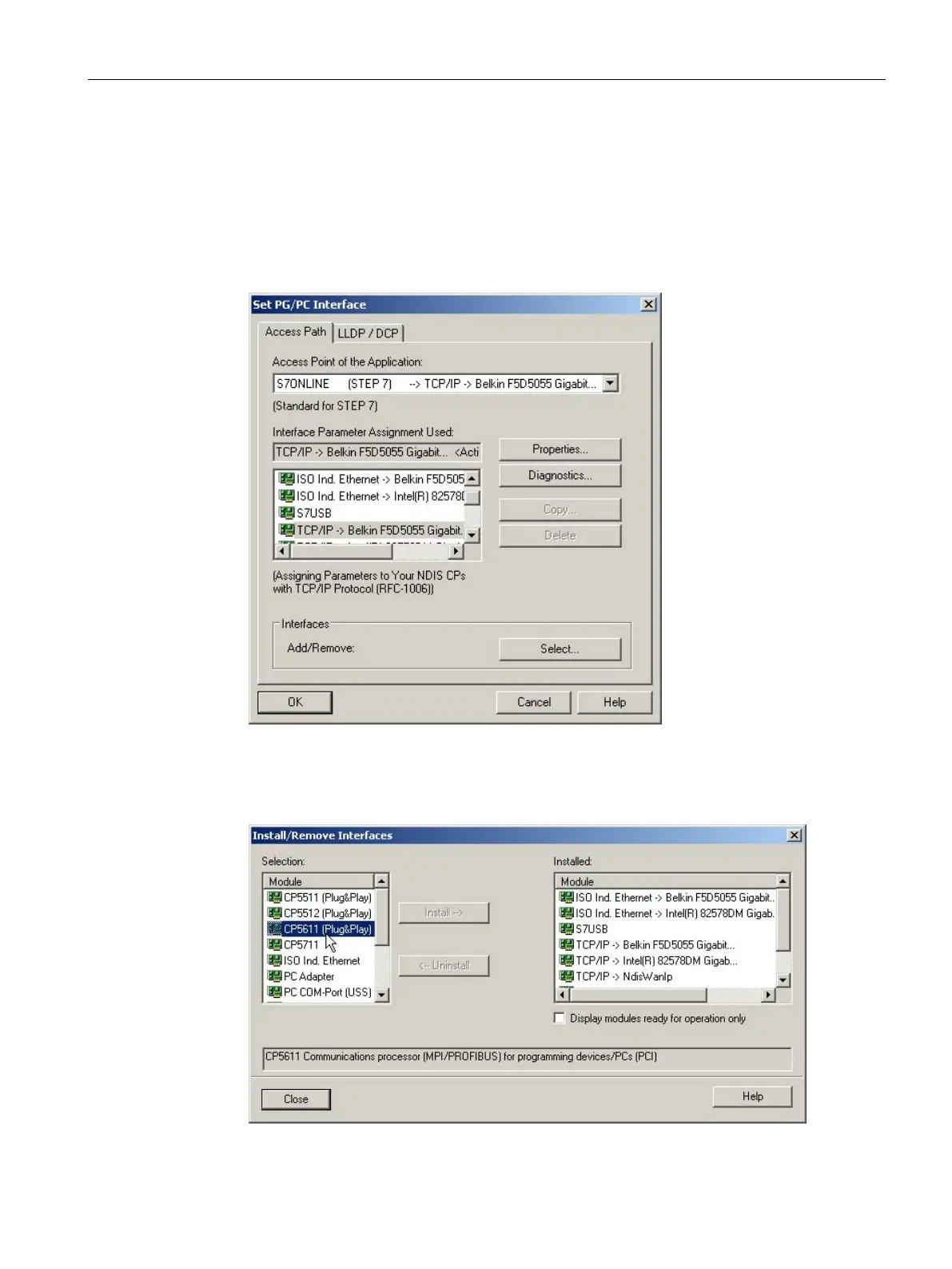

Figure 10-34 Setting the PG/PC interface
If the desired interface does not yet exist in the selection list, you can create it.
3. Click the "Select" button.
Figure 10-35 Installing the interface
