Descriptions of functions
10.14 Speed controller
SINAMICS DCM DC Converter
570 Operating Instructions, 12/2018, A5E34763375A
Example

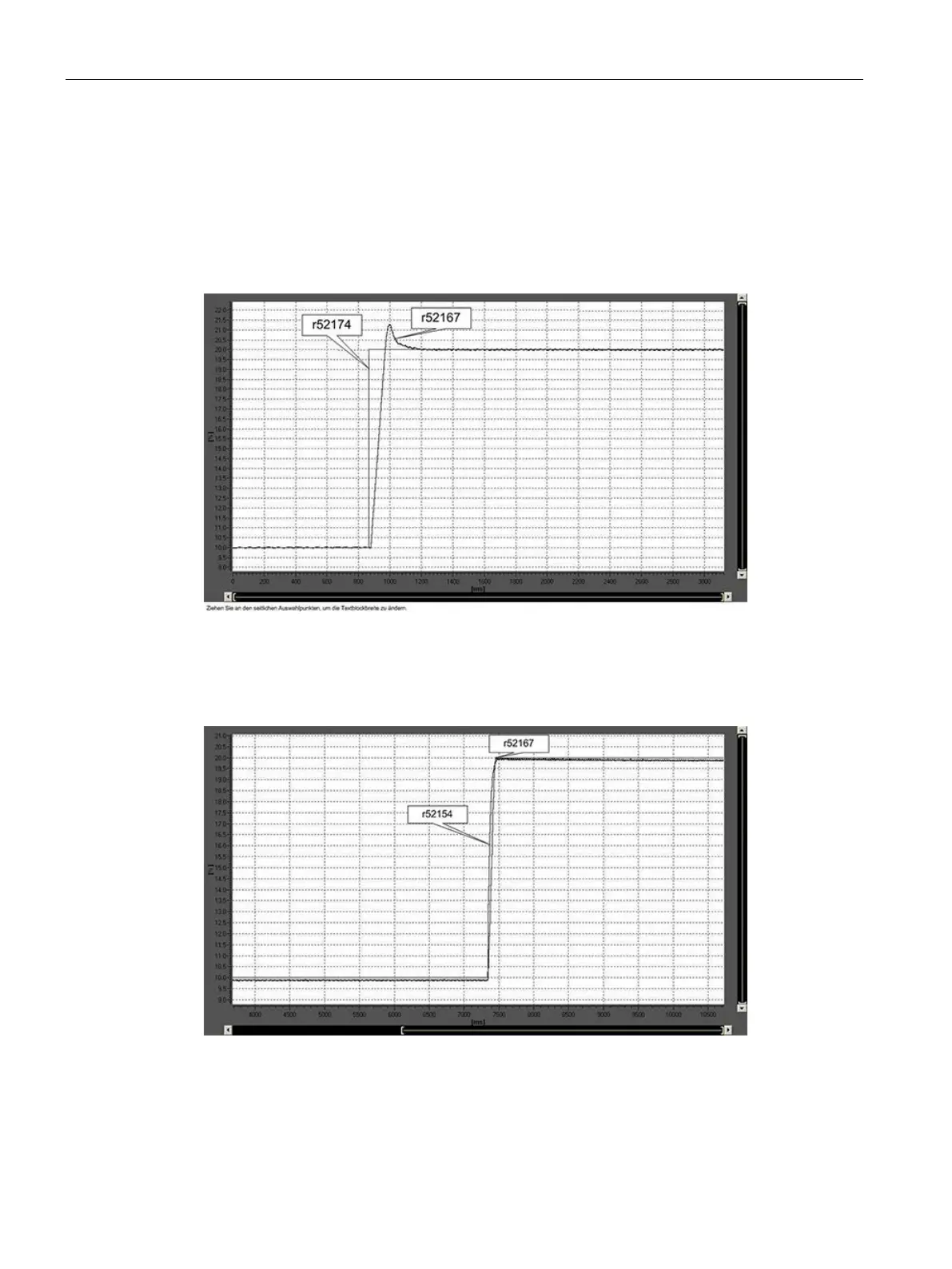

The following diagram shows the step response of the speed controller after carrying out the
optimization run, if the reference model is not activated.
r52174
Speed setpoint
r52167
Actual speed value
The following diagram shows the setting of the reference model.
r52154
Reference model output
r52167
Actual speed value
