Transportation, unpacking, installation
5.2 Installation
SINAMICS DCM DC Converter
78 Operating Instructions, 12/2018, A5E34763375A

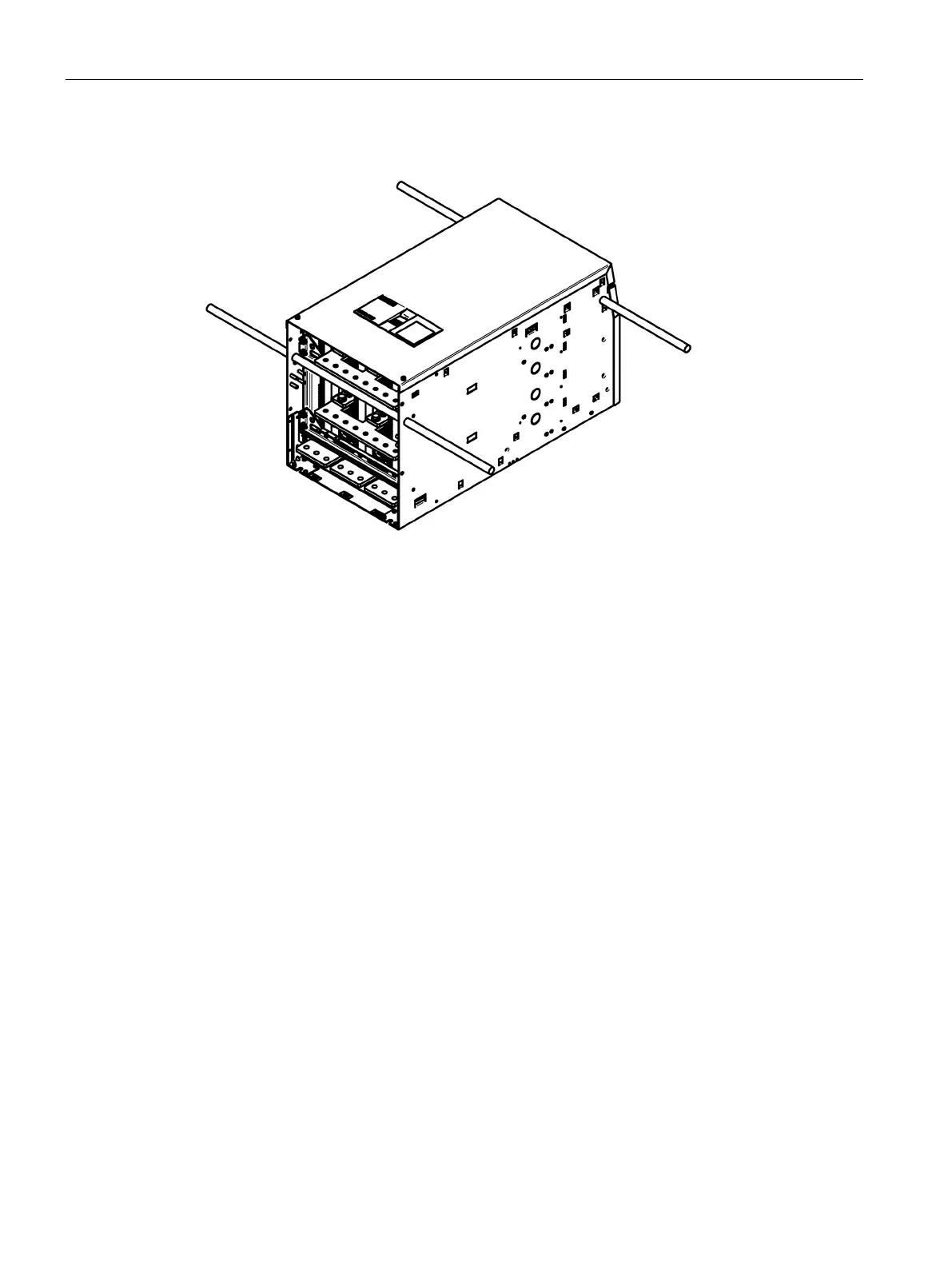

Options for lifting units with a 1500 to 3000 A rated DC current
Figure 5-1 Options for lifting units with 1500 - 3000 A currents
UL-508C-compliant cabinet installation for a SINAMICS DC MASTER
● If this unit is to be installed in a cabinet, the cabinet must be sufficiently ventilated and of
"type 1" in accordance with standard UL 508C.
● To install the unit, the cabinet must have minimum dimensions of 600 mm x 2200 mm x
600 mm (W x H x TD).
