Accessories
7.3 Braking Resistor
Power Module PM240
112 Hardware Installation Manual, 07/2009, A5E00807525B AD
Braking resistor for Power Module FSGX (132 kW … 200 kW)
0
0
7\SHSODWH
*URXQGFRQQHFWLRQ
0
77
6FUHZWHUPLQDO
PPt
[
7KUHDGHGEROW
0

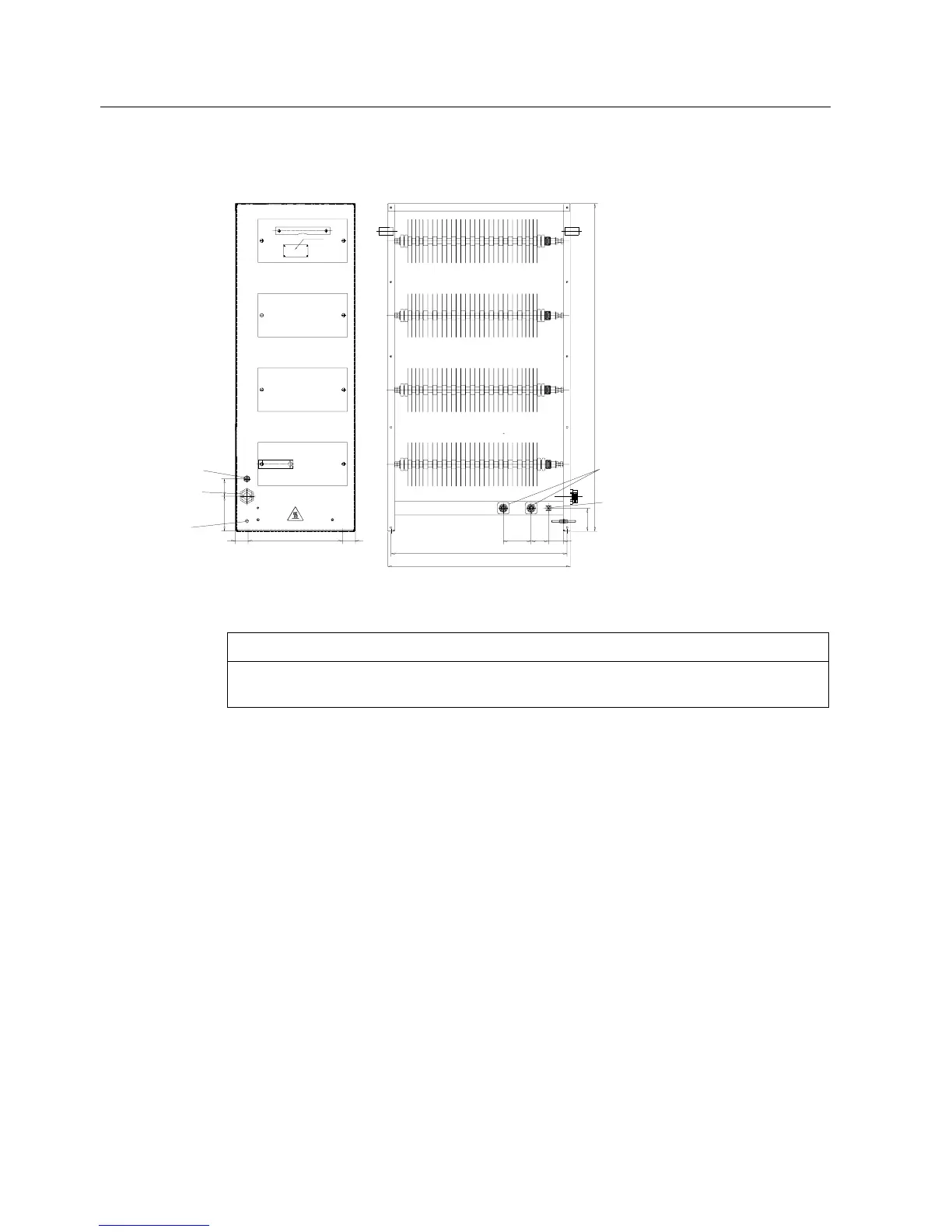

Figure 7-16 Dimensions of the braking resistor FSGX, order-no. 6SL3000-1BE32-5AA0
CAUTION
A ventilation clearance of 200 m must be maintained on all sides of the braking resistor
(with ventilation grilles).
The braking resistor FSGX is suitable for thePower Modules with the following order-no.:
6SL3224-0XE41-3UA0
6SL3224-0XE41-6UA0
6SL3224-0XE42-0UA0
The braking resistor should not be installed in the vicinity of the converter. The following
points must be taken into account:
● The braking resistors are only suitable for floor mounting.
● The maximum cable length between the Power Module and braking resistor is 100 m.
● The braking resistor must be installed as a free-standing unit.
● Objects must not be placed on or anywhere above the braking resistor.
