Accessories
7.1 Reactor and filter
Power Module PM240
Hardware Installation Manual, 07/2009, A5E00807525B AD
85
7.1.2 Line filter
Installing the line filter as base component
The line filters associated with the Power Modules of a rated power (HO) up to 11 kW are
designed as base components. The line filter is attached to the mounting surface and the
Power Module is mounted directly on the line filter.
The cables to the Power Module are already connected to the line filter. The line filter is
connected to the line supply through terminals.
0
0RWRU
/LQH
0RXQWLQJ
VXUIDFHRU
FDELQHWZDOO
&RQQHFWLRQ
FDEOH
/LQHILOWHU
3RZHU0RGXOH
/
/
/
3(
8
9
:
3(
8
9
:
3(

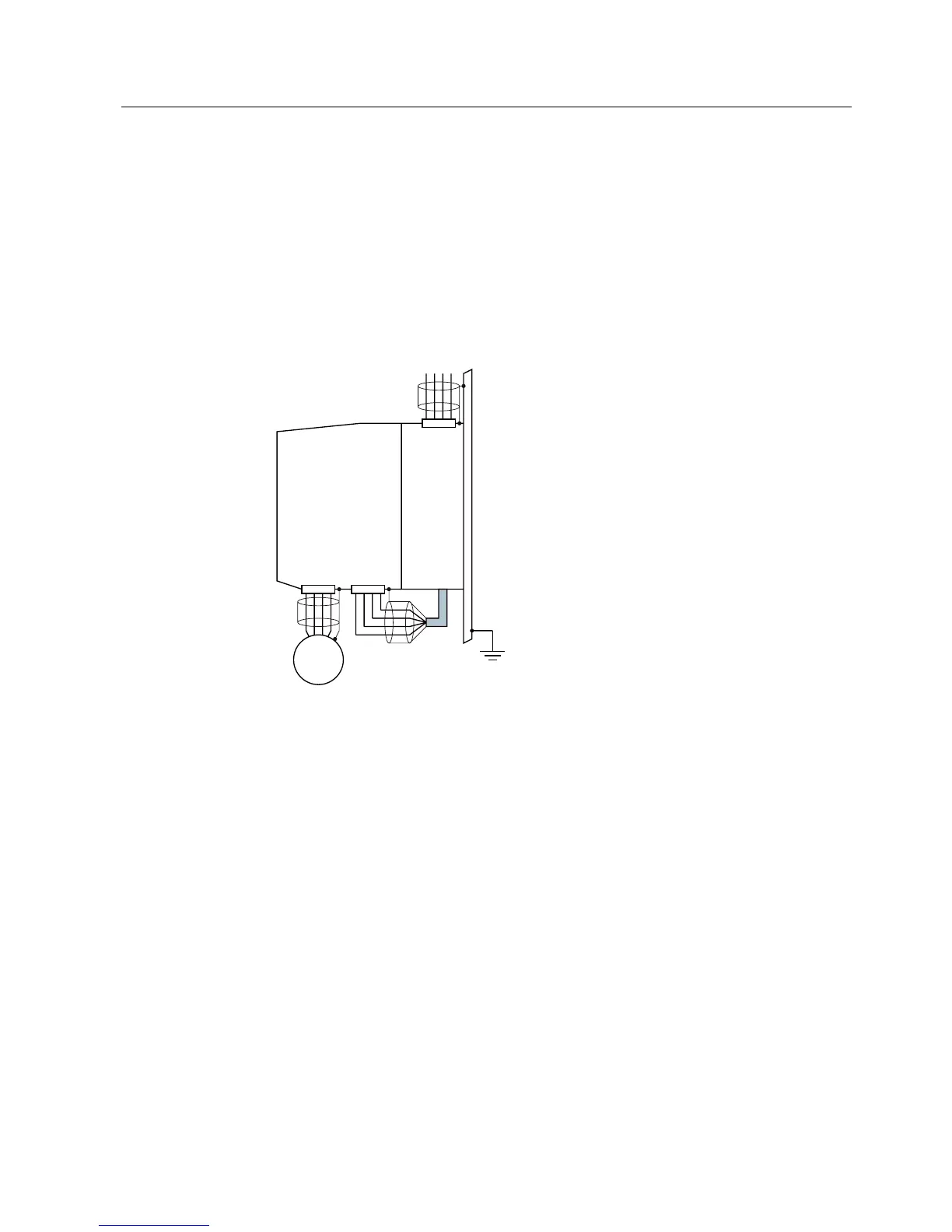

Figure 7-4 Connecting the line filter as base component
The overall and mounting dimensions of the line filter are written in the technical
specifications.
