7.2 Brake chopper (FSGX)
Power Module PM240
Hardware Installation Manual, 07/2009, A5E00807525B AD
101
7.2 Brake chopper (FSGX)
The function of the brake chopper
The brake chopper controls the external braking resistor.
● The brake chopper is integrated in the Power Module FSA … FSF
● The Power Module FSGX does not contain a brake chopper. The brake chopper is
available as an accessory only for the Power Module FSGX
5
5
;
7KUHVKROGVZLWFK
6
'&3$
'&1$
5HWDLQLQJVFUHZV

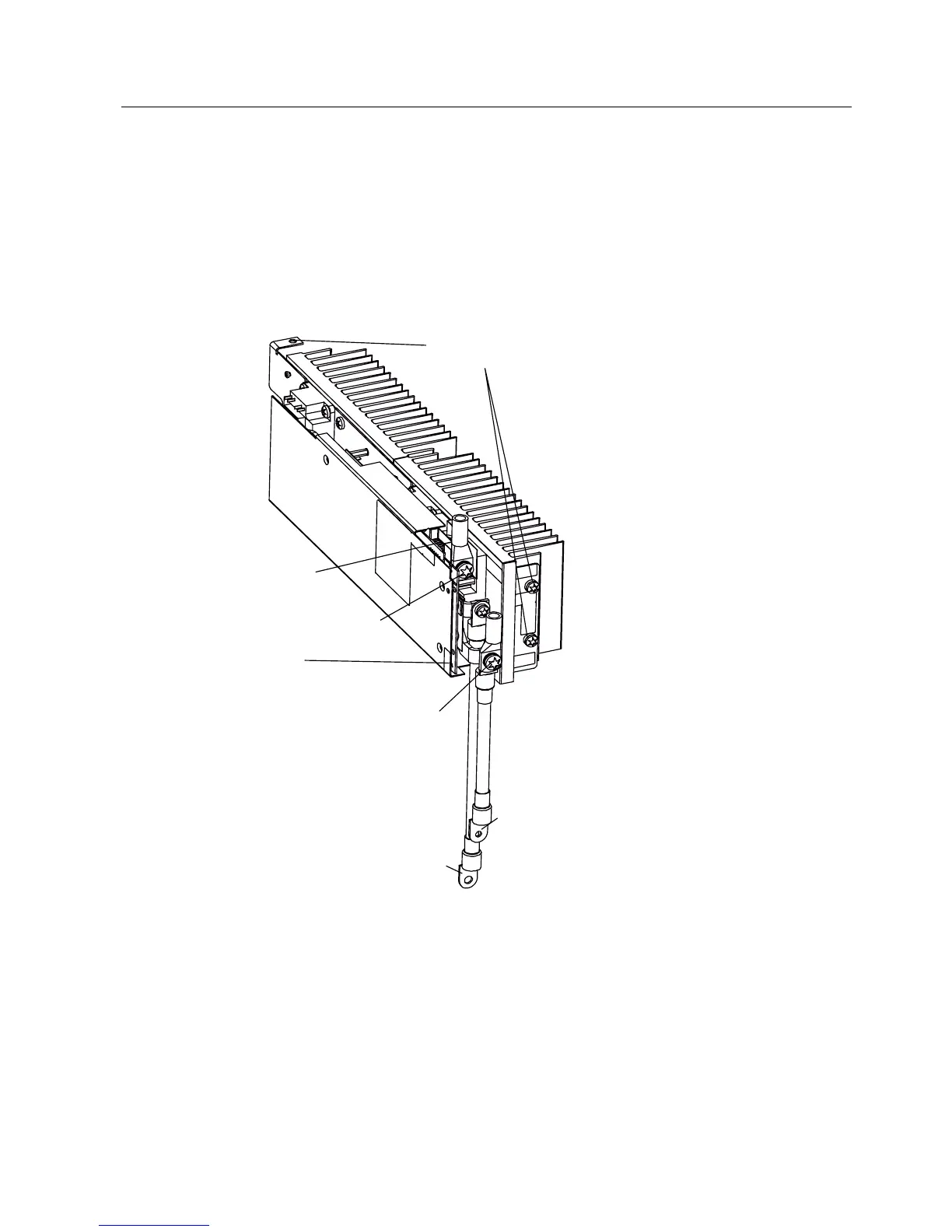

Figure 7-10 Brake chopper for Power Module FSGX
