Installing/Mounting
3.3 Control Unit installation
Power Module PM240
32 Hardware Installation Manual, 07/2009, A5E00807525B AD
3.3 Control Unit installation
Fitting the CU to the PM FSA ... FSF
The Control Unit is snapped onto the Power Module as shown in the figure below. To
disconnect the CU push the release button on top of the PM.
The process of fitting the Control Unit to the Power Module is the same technique
independent from the type of Control Unit or Power Module.

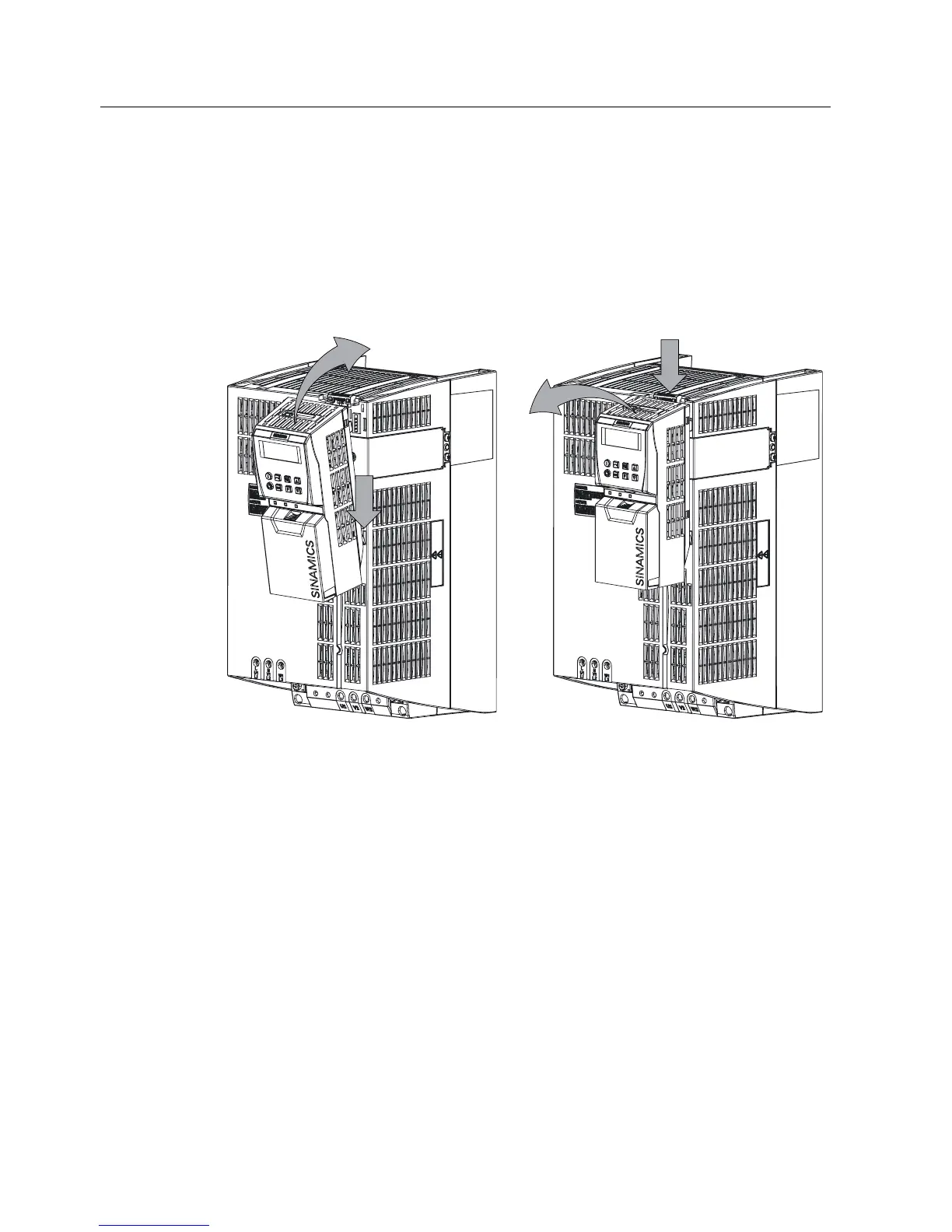

Figure 3-12 Fitting the Control Unit CU240S to the Power Module FSC
