Accessories
7.1 Reactor and filter
Power Module PM240
Hardware Installation Manual, 07/2009, A5E00807525B AD
89
7.1.3 Output reactor
Installing the output reactor as base component
The output reactors for Power Modules with a rated power (HO) up to 11 kW are designed
as base components. The output reactor is attached to the mounting surface and the Power
Module is mounted directly on the output reactor.
The cables to the Power Module are already connected to the output reactor. The output
reactor is connected to the motor through terminals.
0
0RWRU
/LQH
0RXQWLQJ
VXUIDFHRU
FDELQHWZDOO
&RQQHFWLRQ
FDEOH
2XWSXW
UHDFWRU
3RZHU0RGXOH
8
9
:
3(
8
9
:
3(
8
9
:
3(

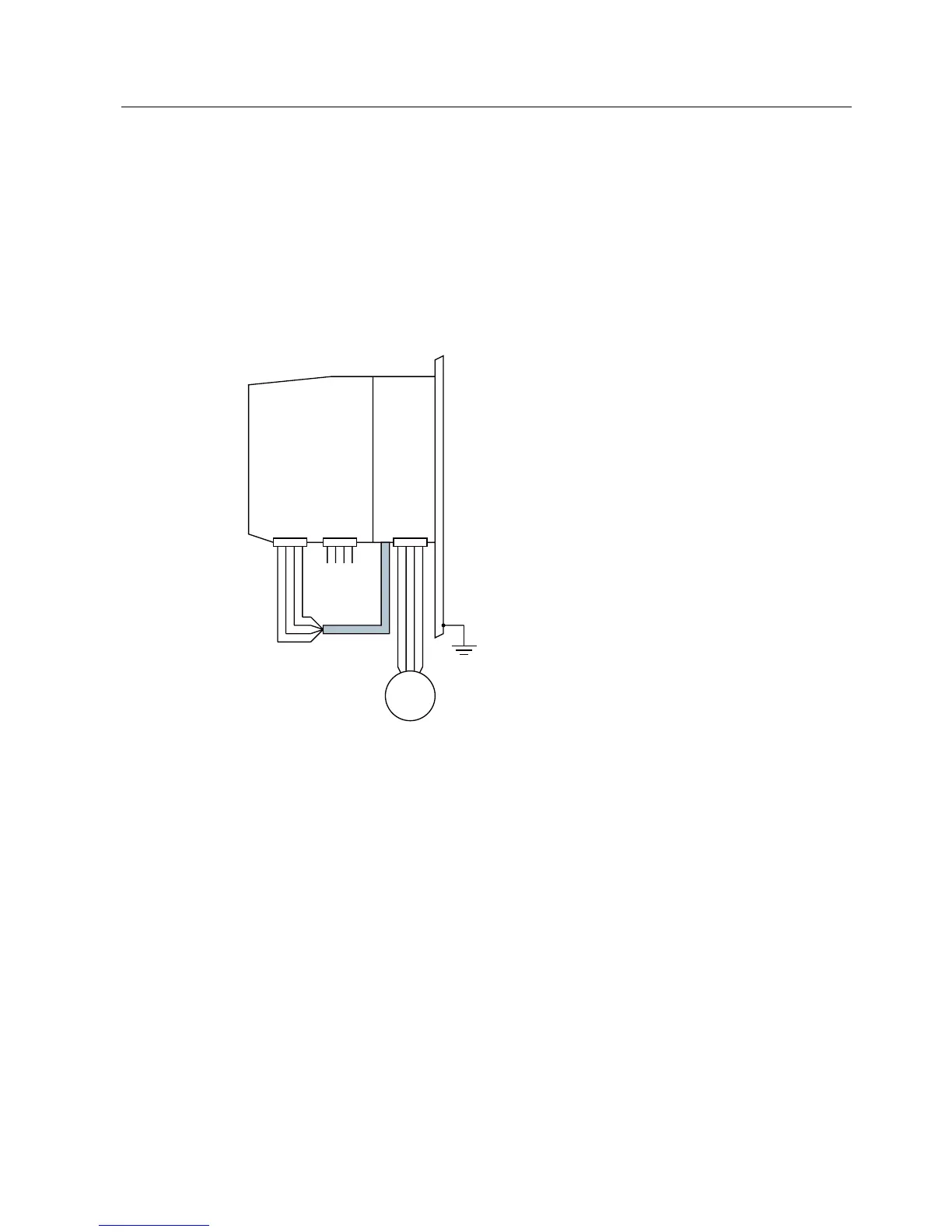

Figure 7-6 Connecting the output reactor as base component
The overall and mounting dimensions of the output reactor are written in the technical
specifications.
