Accessories
7.1 Reactor and filter
Power Module PM240
Hardware Installation Manual, 07/2009, A5E00807525B AD
79
7.1.1 Line reactor
Installing the line reactor as base component
The line reactors for PM240 Power Modules of frame sizes FSA to FSE (0.37 kW … 37 kW)
are designed as base components. The line reactor is attached to the mounting surface and
the Power Module is mounted directly on the line reactor. The cables to the Power Module
are already connected to the line reactor. The line reactor is connected to the line supply
through terminals.
0
0RWRU
/LQH
0RXQWLQJ
VXUIDFHRU
FDELQHWZDOO
&RQQHFWLRQ
FDEOH
/LQH
UHDFWRU
3RZHU0RGXOH
/
/
/
3(
8
9
:
3(
8
9
:
3(

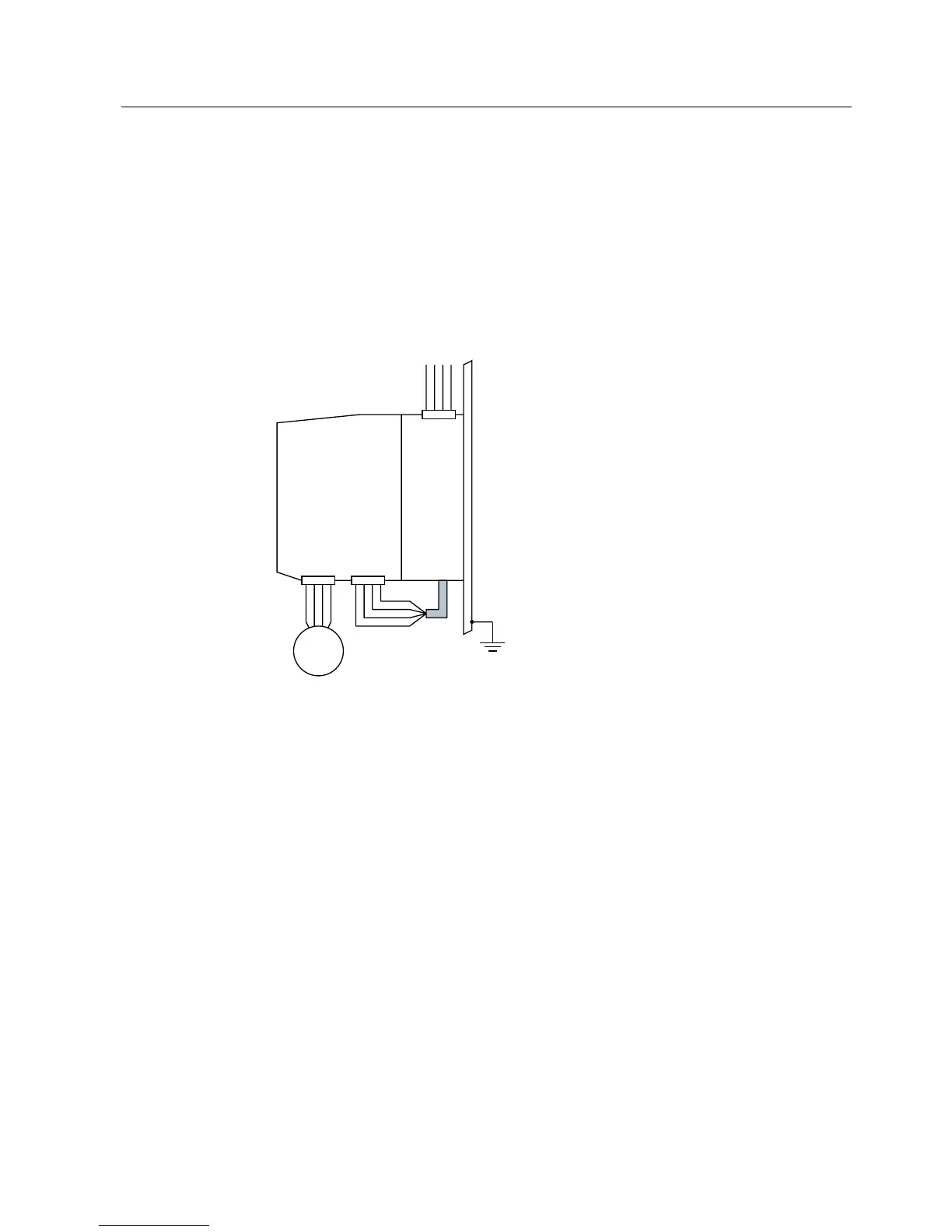

Figure 7-2 Connecting the line reactor as base component
The overall and mounting dimensions of the line reactor are written in the technical
specifications. For more information see
http://support.automation.siemens.com/WW/view/en/23623183
