Accessories
7.1 Reactor and filter
Power Module PM240
80 Hardware Installation Manual, 07/2009, A5E00807525B AD
Installing the line reactor as lateral mounting component
The line reactors for PM240 Power Modules of frame sizes FSF and FSGX
(45 kW … 200 kW) have to be mounted laterally.
/LQHUHDFWRU
0RXQWLQJ
VXUIDFHRU
FDELQHWZDOO
/LQH
0RWRU
8 9 : 3(
3(:98
8
9
:
3(
0
3RZHU0RGXOH
8 9 : 3(
8 9 : 3(

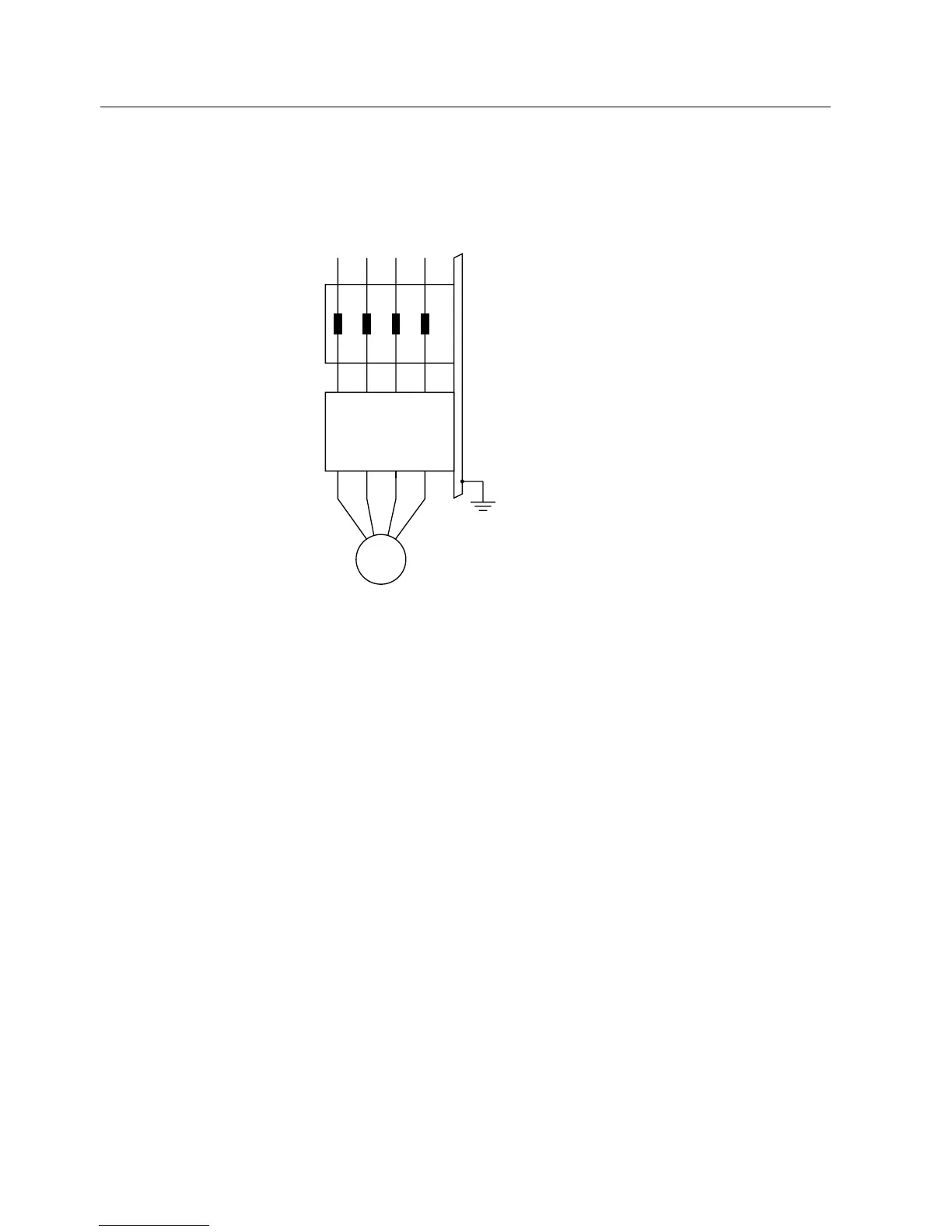

Figure 7-3 Connecting the line reactor as lateral mounting component
Technical specifications of the line reactors
The major electrical specification of the line reactors is the same as for the suitable Power
Module. This applies to:
● line voltage
● line frequency
● rated current
The admissible ambient conditions of the line reactors are the same as for the suitable
Power Module. This applies to:
● storage and transport temperature
● operating temperature
● relative humidity
● shock and vibration load
