Accessories
7.1 Reactor and filter
Power Module PM240
78 Hardware Installation Manual, 07/2009, A5E00807525B AD
Mounting base components
Many system components for the Power Modules are designed as base components, that is,
the component is mounted on the cabinet wall and the Power Module above it in a space-
saving construction. Up to two base components can be mounted above one another. Every
further system component has to be mounted laterally.
3RVLWLRQ 3RVLWLRQ
3RZHU0RGXOH
0RXQWLQJ
VXUIDFHRU
FDELQHWZDOO
%DVHFRPSRQHQWV

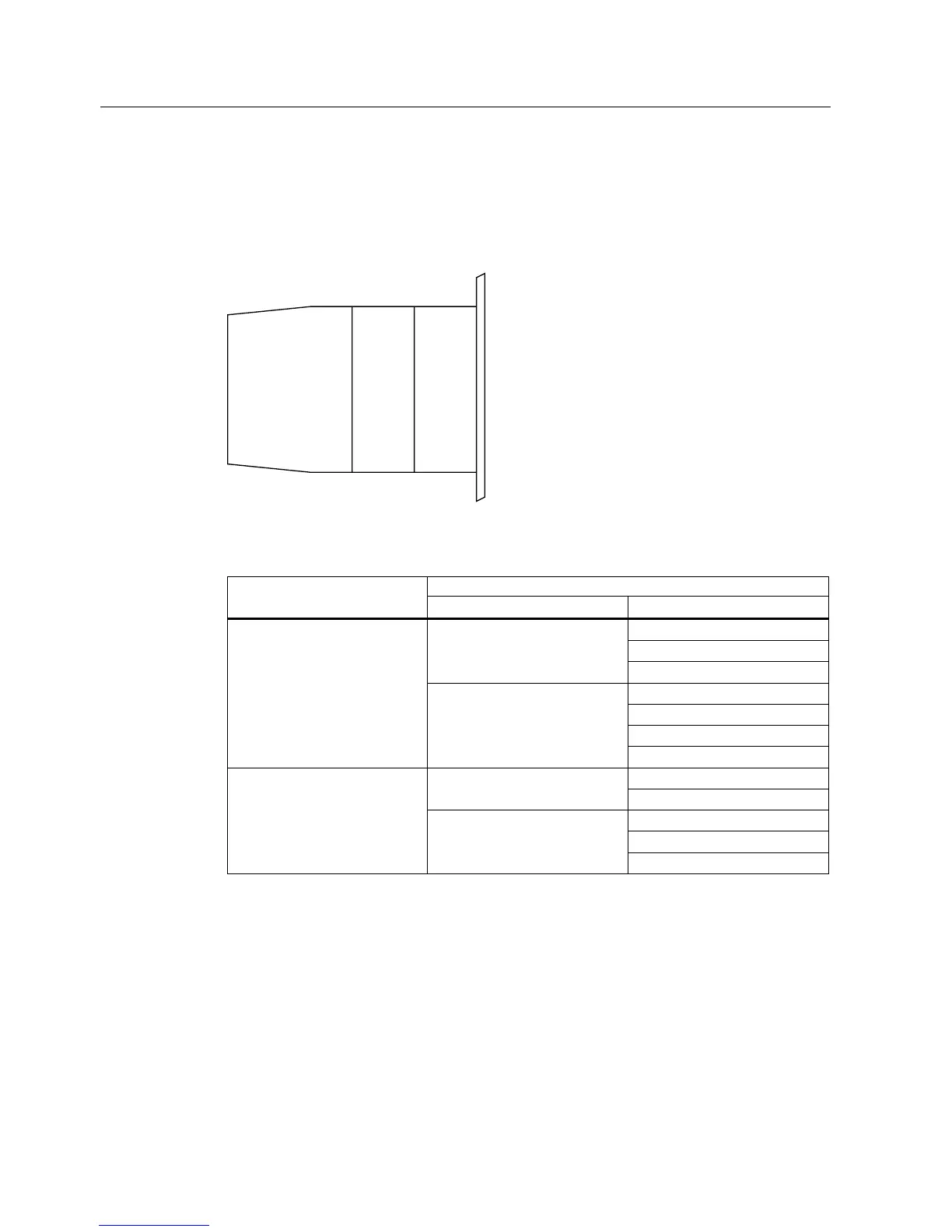

Figure 7-1 Mounting base components
Table 7- 1 Possible combinations of two base components
Base component on … Power Module frame size
… position 1 … position 2
Output reactor
Sine-wave filter
Line reactor
Braking resistor
Line reactor
Output reactor
Sine-wave filter
FSA and FSB
0.37 kW … 4 kW
Line filter
Braking resistor
Output reactor Line reactor
Sine-wave filter
Line reactor
Output reactor
FSC
5.5 kW … 11 kW
Line filter
Sine-wave filter
