Accessories
7.3 Braking Resistor
Power Module PM240
114 Hardware Installation Manual, 07/2009, A5E00807525B AD

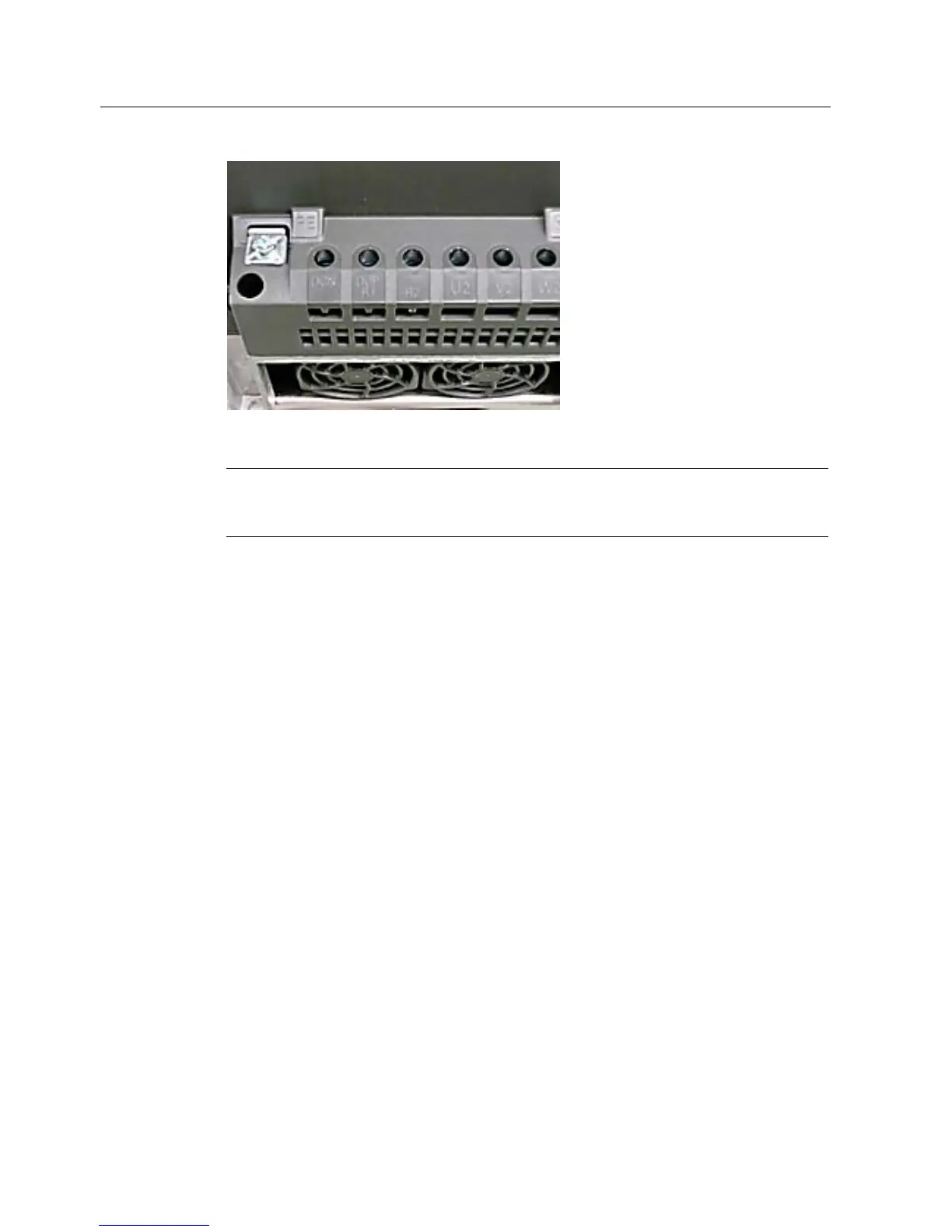

Figure 7-19 PM240 FSC spades
Note
With the cutout cover removed and no connections fitted to the spades, the inverter has only
IP00 protection.
