Connecting
4.5 Access to power and motor terminals
Power Module PM240
Hardware Installation Manual, 07/2009, A5E00807525B AD
43

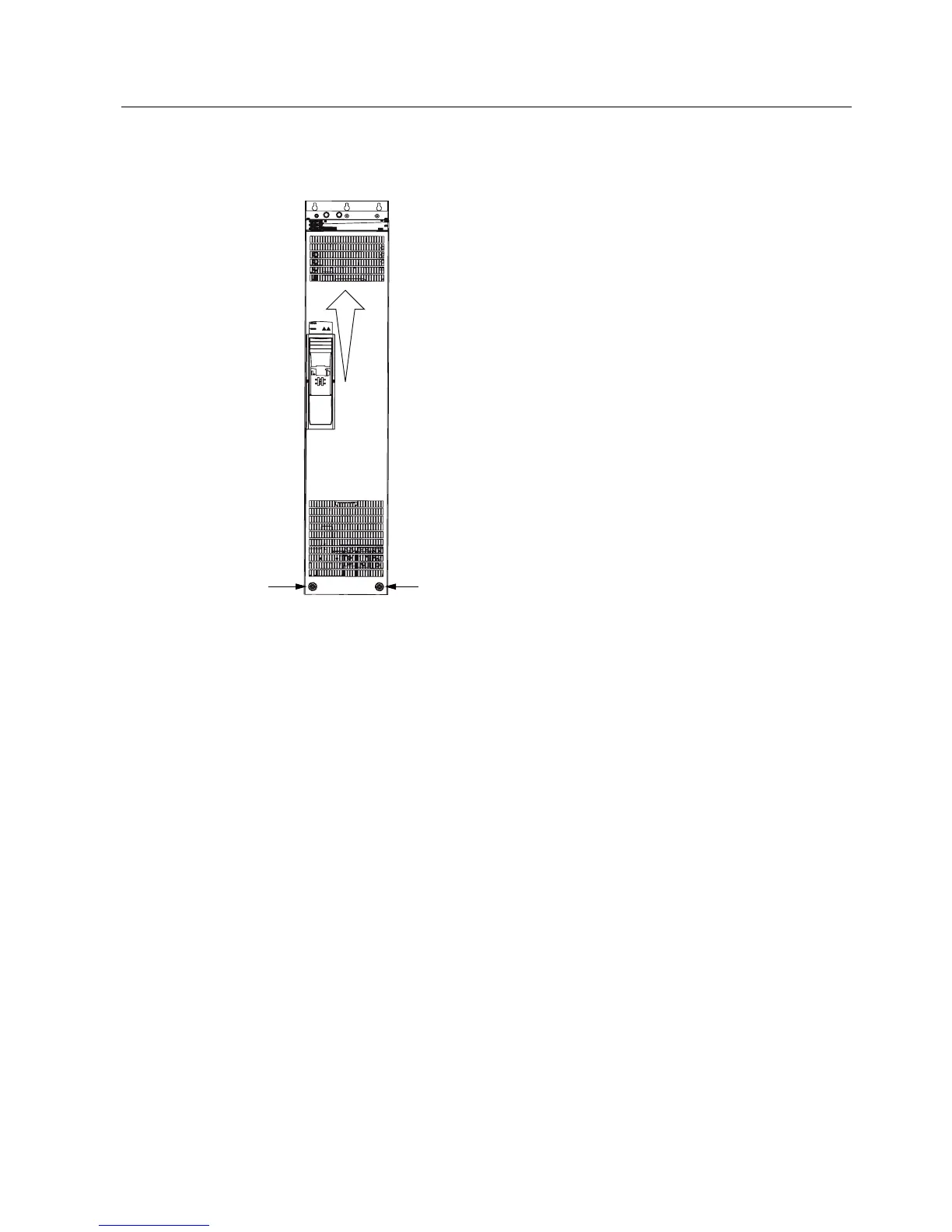

The terminals of FSGX are accessed by removing the front cover:
1.
Unscrew the two fixing screws at the bottom of the
front cover
2.
Push the cover upward
s and remove it
42
44
