The screen forms to commission the basic positioner in Startdrive and STARTER essentially have
the same structure. Commissioning using Startdrive is described in this manual.
0RWRUFRQWURO
,QWHUIDFHWRWKHFRQWUROV\VWHP
%DVLFFRPPLVVLRQLQJ
0HFKDQLFDOV\VWHP
/LPLWV
3RVLWLRQFRQWUROOHU
0RQLWRULQJIXQFWLRQV
+RPLQJ
-RJJLQJ
6HOHFWLQJ
WUDYHUVLQJEORFNV
0','LUHFWO\
HQWHUVHWSRLQW
&RPPLVVLRQLQJ
(QGRIFRPPLVVLRQLQJ
(SRV
① Assign encoders to the axes.
→ Operating instructions
② Set the communication via the eldbus.
PROFIdrive interface (Page 19)
③ Optimize the speed control
→ Operating instructions
④ Normalizing the encoder signal (Page 37)
⑤ Setting limits (Page 43)
⑥ Setting the position controller (Page 47)
⑦ Setting the monitoring functions
(Page 52)
⑧ Referencing (Page 56)
⑨ Jogging (Page 70)
⑩ Traversing blocks (Page 74)
or
Direct setpoint input (MDI) (Page 88)
Commissioning

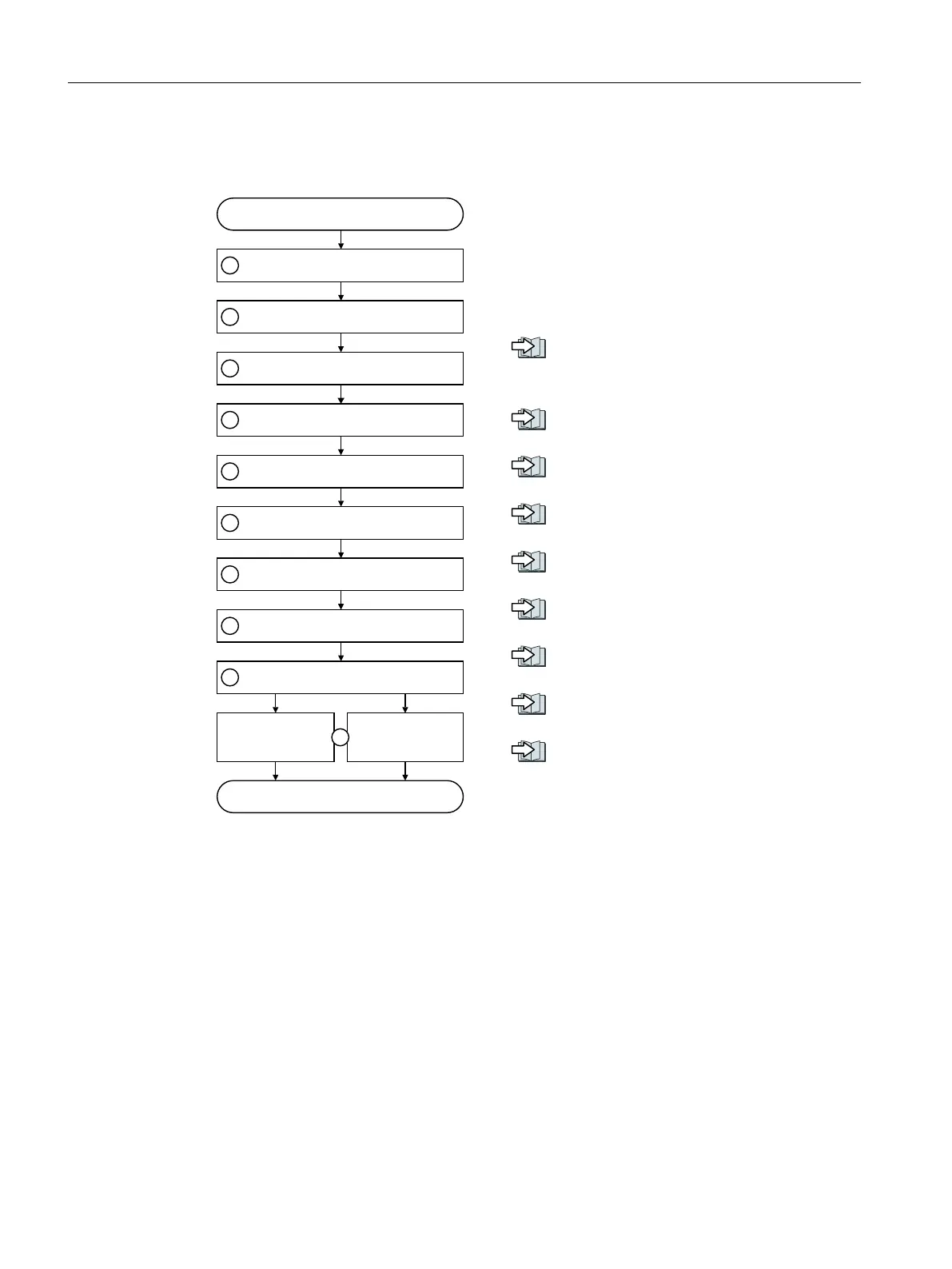

6.1 Commissioning sequence
Basic positioner
36 Function Manual, 09/2020, FW V4.7 SP13, A5E34257659B AG
