Job Parameter Meaning
Set, reset 1 Set output 1 Set or reset internal signals in the converter:
• Output 1: r2683.10
• Output 2: r2683.11
You can interconnect the signals with digital outputs of
the converter or with bit 10 and 11 of the positioning
status word of the eldbus.
Control and status word for the positioner
(Page 24)
Control and status word 2 for the positioner
(Page 28)
2 Set output 2
3 Set outputs 1 and 2
Jerk 0 Inactive Activate or deactivate jerk limiting.
Limiting the traversing prole (Page 50)
1 active
Conditions for advance

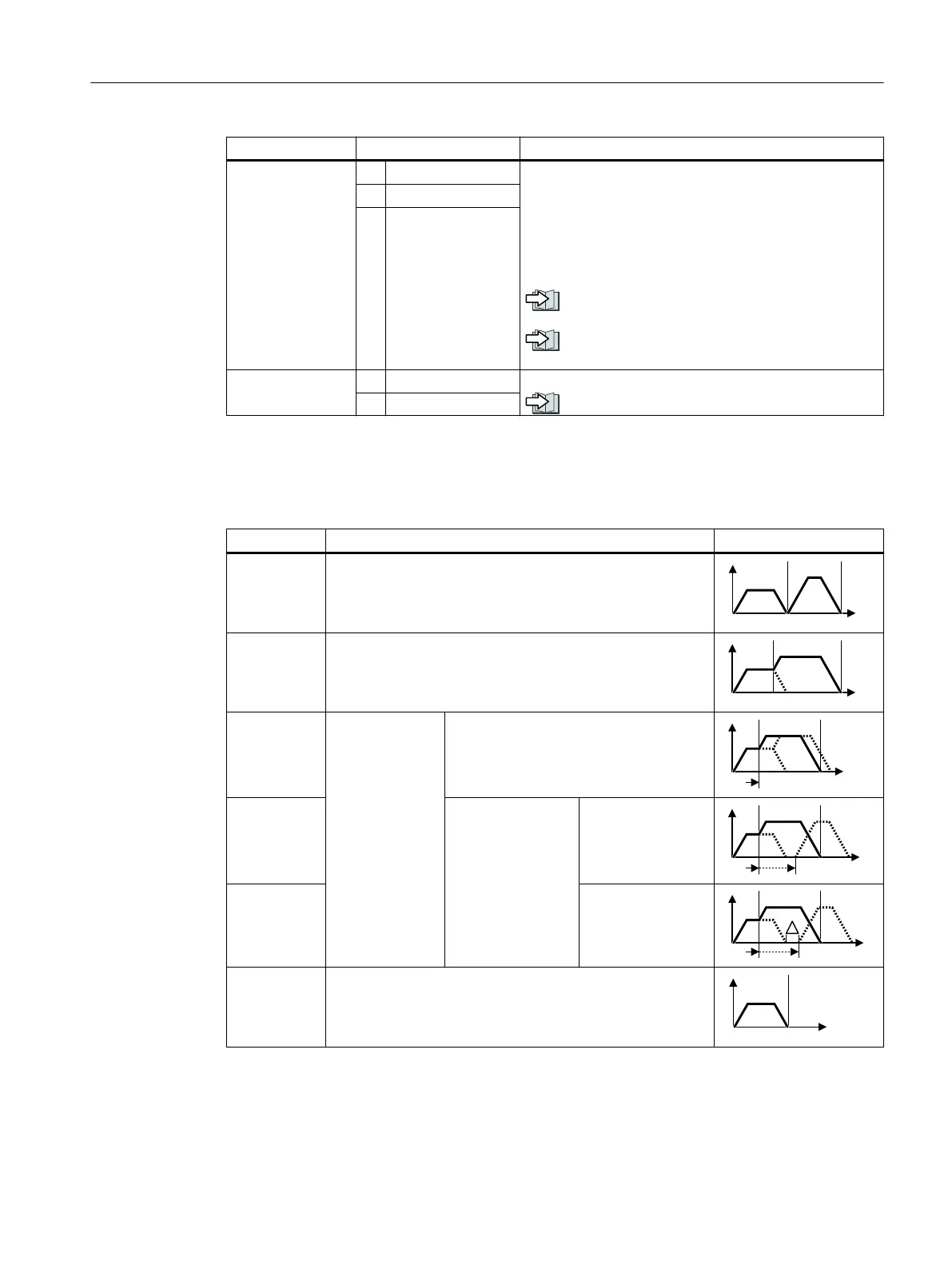

Table 6-3 Advance: Jump condition to the next traversing block
Condition Meaning Traversing block
CONTINUE
WITH STOP
If the axis has reached the setpoint position and has come to
a standstill, the converter executes the next traversing block.
CONTINUE
FLYING
The converter goes to next traversing block at the braking
instant.
CONTINUE
EXTERNAL
At the external E
signal, the con‐
verter goes to
the next travers‐
ing block.
If the E signal is not present, the drive
behaves just the same as for "CONTINUE
FLYING".
CONTINUE
EXTERNAL
WAIT
If the E signal is not
present, the con‐
verter exits the ac‐
tual traversing
block and contin‐
ues to wait for the
signal.
---
CONTINUE
EXTERNAL
ALARM
As long as the axis
is at a standstill, the
converter signals
alarm A07463.
END The converter exits the actual traversing block if the target
position has been reached. The converter does not go to the
next traversing block.
Commissioning
6.8 Traversing blocks
Basic positioner
Function Manual, 09/2020, FW V4.7 SP13, A5E34257659B AG 75
