5.10 Configuring safety functions and PROFIsafe with Startdrive
5.10.1 Configuring safety functions
Precondition
You are offline with Startdrive.
Procedure with Startdrive
Proceed as follows to configure the safety functions:

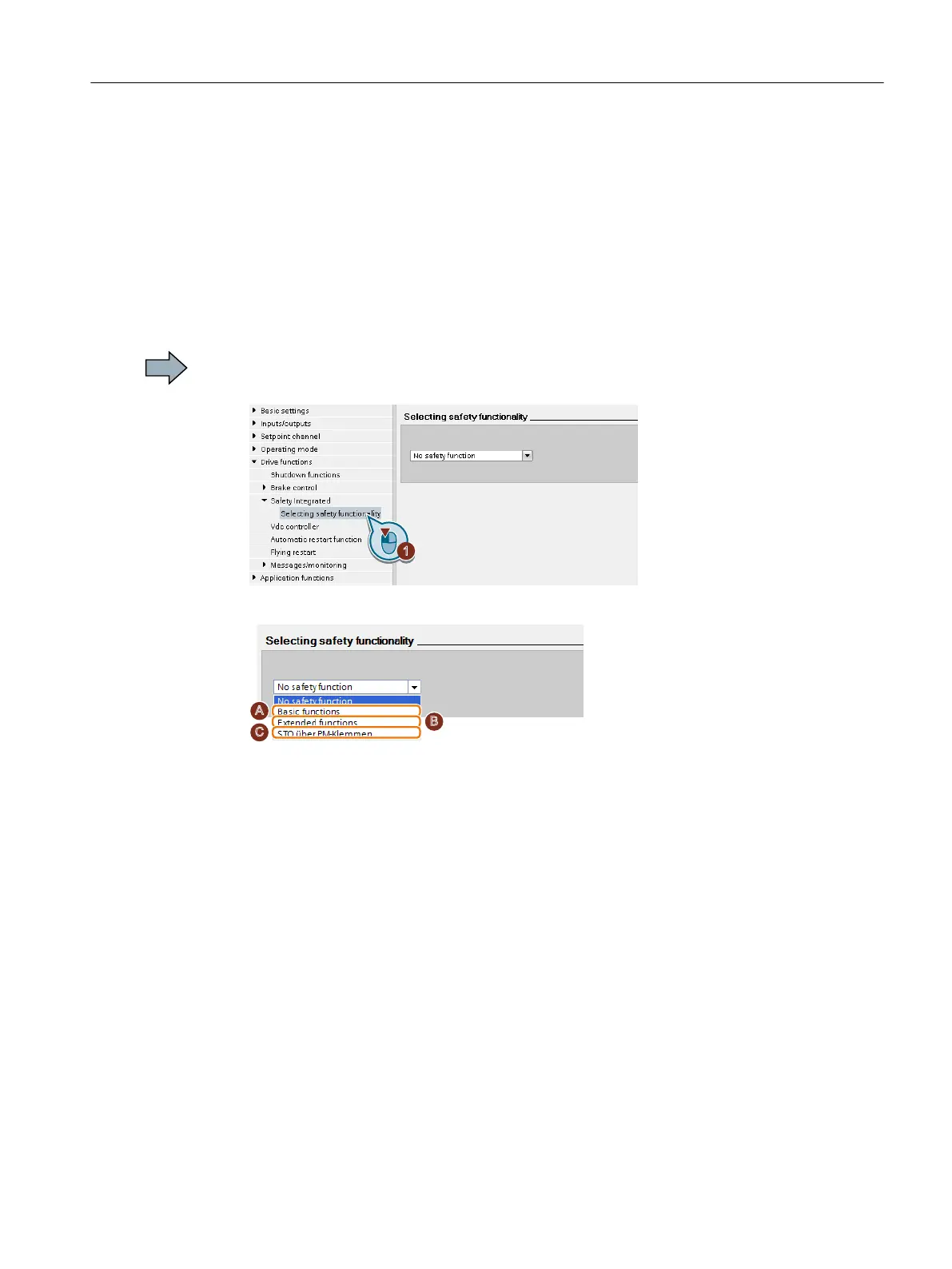

1. Select "Select safety functionality".
2. Define the configuration of the safety functions:
– (A) You want to exclusively use the basic inverter functions.
– (B) You want to use the extended safety functions.
– (C) This option is only available with a PM240‑2 or PM240P‑2 FSD ... FSF Power
Module. Select this option if you only use the "STO via Power Module terminals" function.
Commissioning
5.10 Configuring safety functions and PROFIsafe with Startdrive
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 119
