Siemens CU240B-2 Function Manual

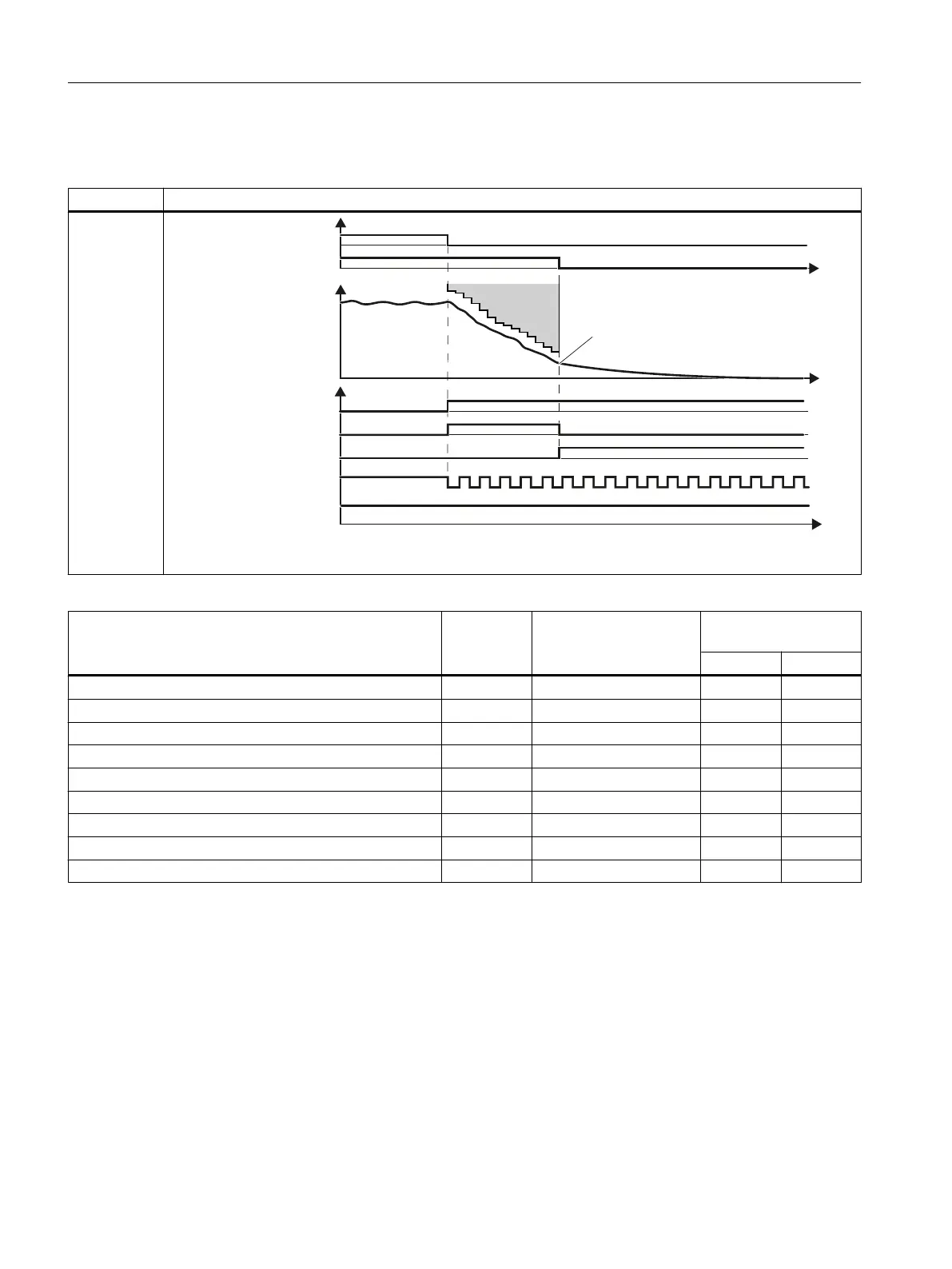

6.12.1 Selecting STO when SS1 is active
Select STO
SS1 is active
0RWRUUXQVGRZQ
WRVWDQGVWLOO
6SHHG
*UHHQRQ
6$06%5DFWLYH
66DFWLYH
672DFWLYH
<HOORZRQ<HOORZIODVKHVVORZO\
W
'HVHOHFW672
'HVHOHFW66
6$0
W
W
/('5'<
/('6$)(
Example: SS1 with acceleration monitoring
Inverter signals Parameters Included in the PROFI‐
safe telegram
Can be interconnected
with
F-DI F-DO
STO active (basic functions) r9773.1 ✓ --- ✓
STO deselection (basic functions) r9773.0 ✓ ✓ ---
STO cause, selection via terminal on the Power Module r9772.25 --- --- ---
STO active (extended functions) r9722.0 ✓ --- ✓
Deselect STO (extended functions) r9720.0 ✓ ✓ ---
SS1 active (extended functions) r9722.1 ✓ --- ✓
Deselect SS1 (extended functions) r9720.1 ✓ ✓ ---
SAM/SBR active r9723.16 --- --- ---
ON/OFF1 r0054.0 --- --- ---
Operation
6.12 Selecting safety function when a safety function is active
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
304 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD
