You have set the "STO via Power Module terminals" function.
Parameter Description
p9601.7 Enable functions integrated in the drive (factory setting: 0)
1 signal: STO via the Power Module terminals has been enabled
p9650 F-DI switchover discrepancy time (Factory setting: 500 ms)
p9661 Forced checking procedure STO via PM terminals time (Factory setting: 8 h)
r9662 Forced checking procedure STO via PM terminals remaining time
r9773 SI status
.1 1 signal: STO is active in the drive
.30 1 signal: The forced checking procedure (test stop) for the "STO via Power
Module terminals" function is required.
5.12.4 Setting a fail-safe digital output
5.12.4.1 Setting the forced dormant error detection (test stop)
Requirements
You are online with STARTER or Startdrive.
You have selected the extended functions via onboard terminals.

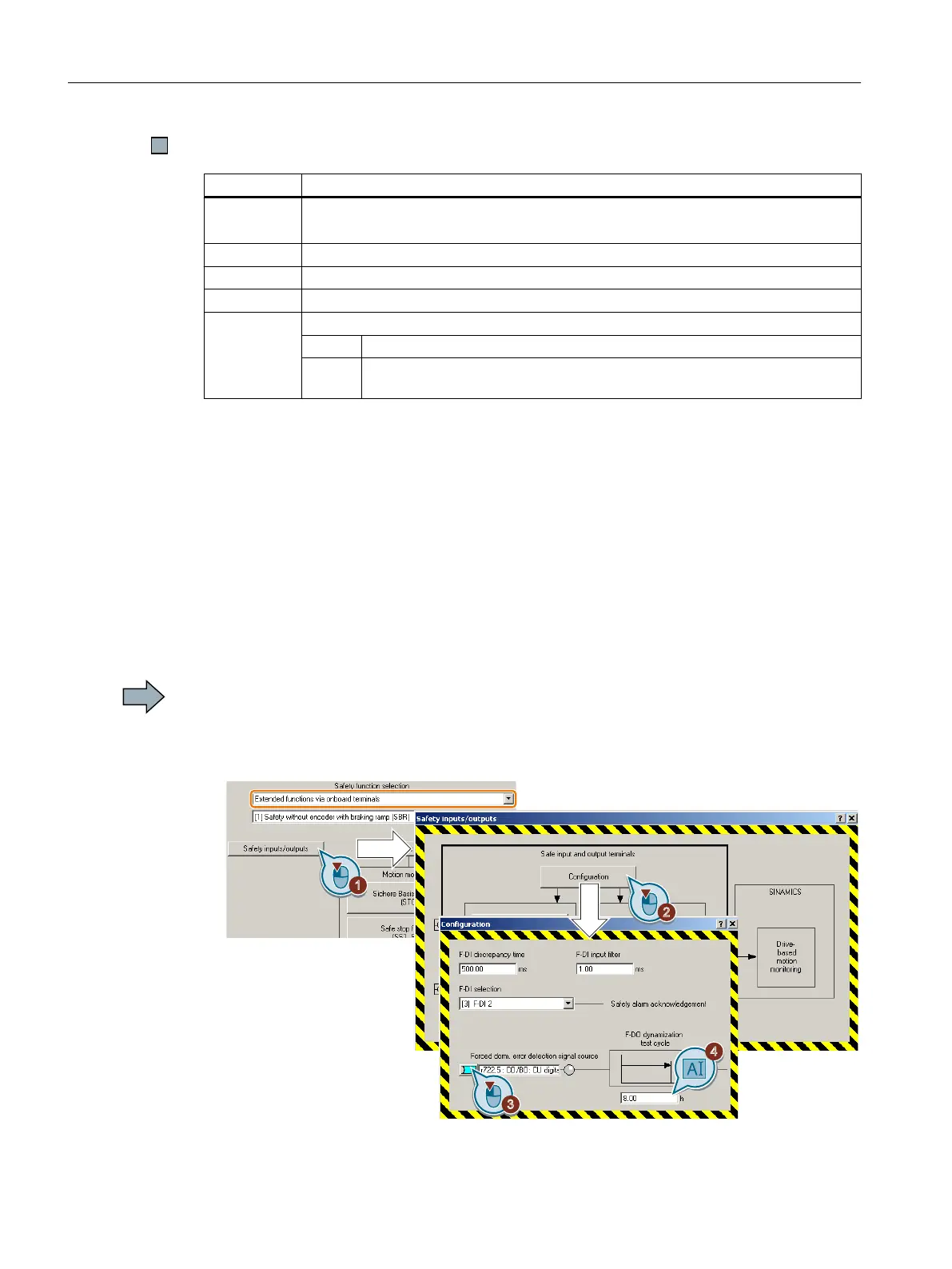

Procedure with STARTER
To set the forced checking procedure (test stop) of the fail-safe digital output, proceed as
follows:
1. Press the "Safety inputs/outputs" button.
2. Press the "Configuration" button.

Commissioning
5.12 Setting extended functions
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
166 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD
