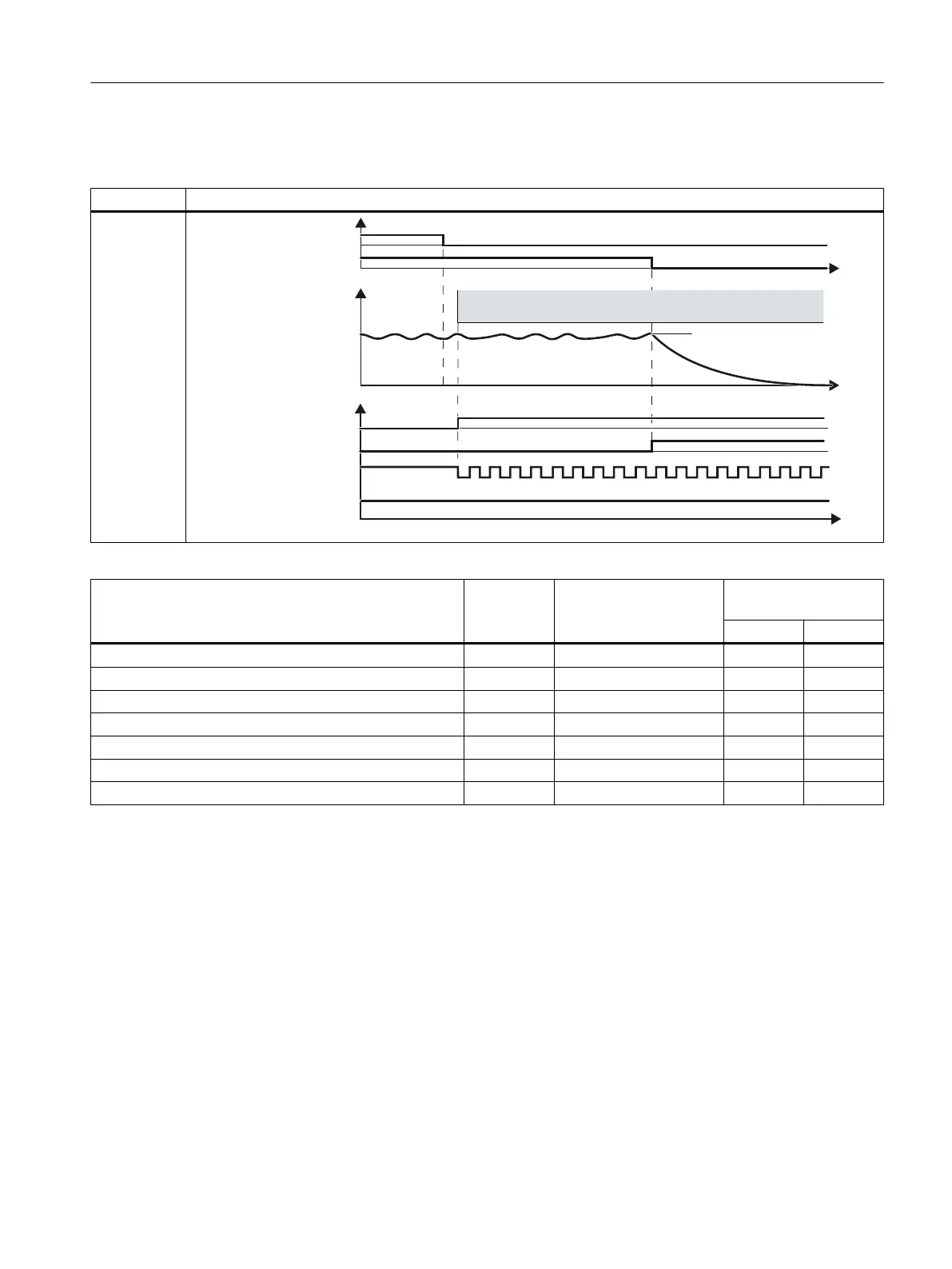

6.12.2 Selecting STO when SLS is active
Select STO
SLS is active
0RWRUUXQVGRZQWR
VWDQGVWLOO
6SHHG
*UHHQRQ
6/6DFWLYH
<HOORZRQ<HOORZIODVKHVVORZO\
672DFWLYH
'HVHOHFW672
'HVHOHFW6/6
W
6/6
W
W
/('5'<
/('6$)(
Inverter signals Parameters Included in the PROFI‐
safe telegram
Can be interconnected
with
F-DI F-DO
STO active (basic functions) r9773.1 ✓ --- ✓
STO deselection (basic functions) r9773.0 ✓ ✓ ---
STO cause, selection via terminal on the Power Module r9772.25 --- --- ---
STO active (extended functions) r9722.0 ✓ --- ✓
Deselect STO (extended functions) r9720.0 ✓ ✓ ---
SLS active r9722.4 ✓ --- ✓
Deselect SLS r9720.4 ✓ ✓ ---
Operation
6.12 Selecting safety function when a safety function is active
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 305
