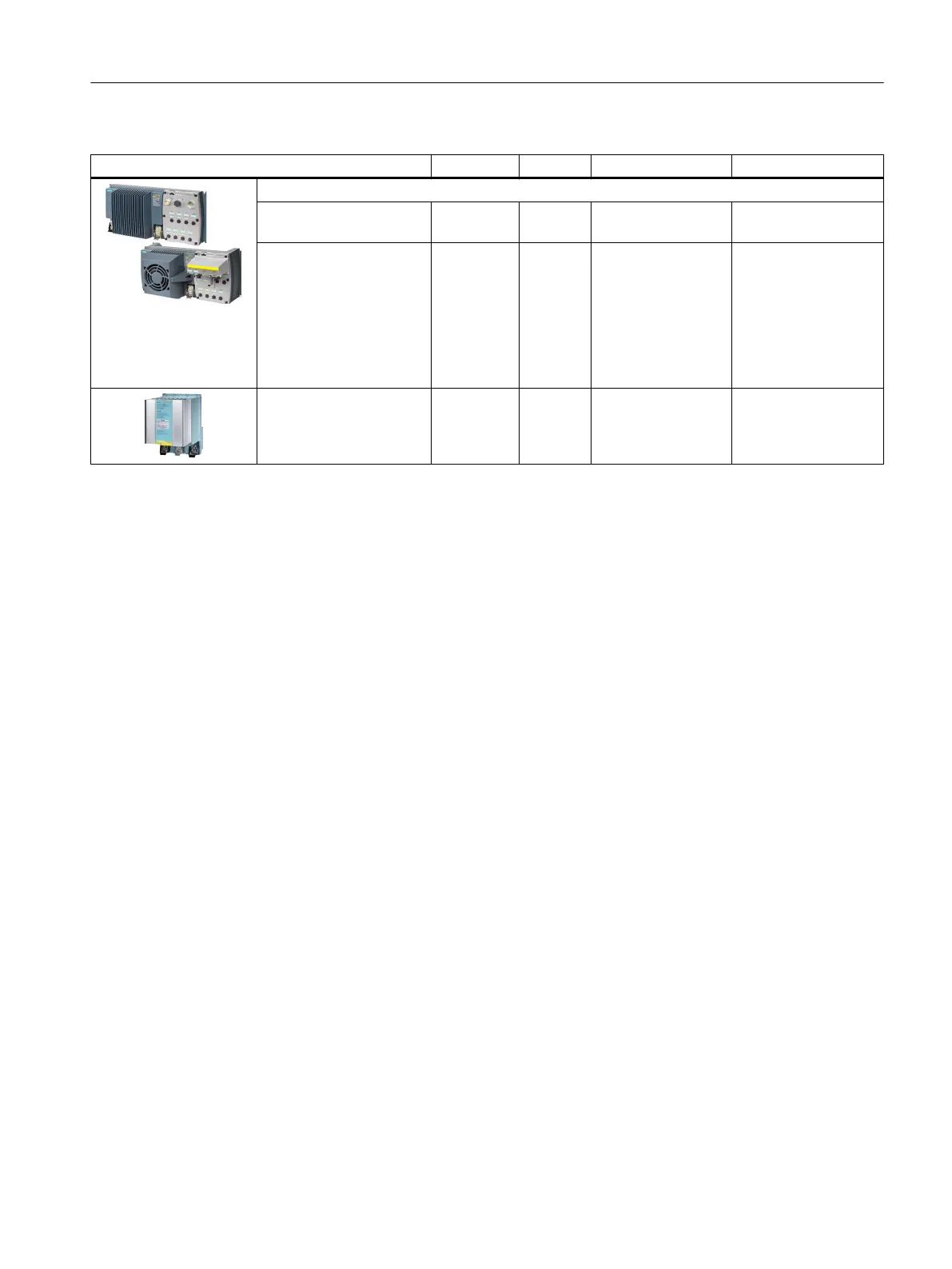

Inverter F-DI F-DO PROFIsafe Safe brake control
SINAMICS G120D with Control Unit …
CU240D‑2 DP
CU240D‑2 PN
1 --- Telegram 30
3)
---
CU240D‑2 DP‑F
CU240D‑2 PN‑F
CU240D‑2 PN‑F PP
CU240D‑2 PN‑F FO
CU250D‑2 DP‑F
CU250D‑2 PN‑F
CU250D‑2 PN‑F PP
CU250D‑2 PN‑F FO
3 1 Telegram 30
3)
, Tele‐
gram 900
4)
---
SIMATIC ET 200pro FC‑2 Via
ET 200pro
system
2)
--- Via ET 200pro sys‐
tem
2)
---
2)
The inverter evaluates the F0 rail in the backplane bus of the ET 200pro system via an internal fail-safe digital input. The
ET‑200pro F‑RSM and F‑Switch modules control the F0 rail.
3)
Telegram 30 for control and for the status feedback signal from the safety functions
4)
Telegram 900: Function as for telegram 30 and additional feedback signal of the F-DI status
Description
3.3 Interfaces to select the safety functions
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 25
