5.3 PN Basic connection module
5.3.1 Description
The connection module Basic PN was specially developed for installation in the control cabinet.
The terminating connector protrudes through the panel of the control cabinet so that the HT 8
can be connected from the outside.
6\VWHPQHWZRUN
6WDWXVVLJQDOV
(PHUJHQF\6WRS
3DQHOSUHVHQW
6DIHW\
FRPELQDWLRQ
7.
&RQQHFWLQJFDEOH
)DFWRU\QHWZRUN
&RQWUROV\VWHPV
1&8
1&8
1&8
31%DVLFFRQQHFWLRQPRGXOH
(PHUJ6WRSFLUFXLWV
0DFKLQHFRQWUROSDQHO
2SHUDWRUSDQHO
+7
+7
3
3
3

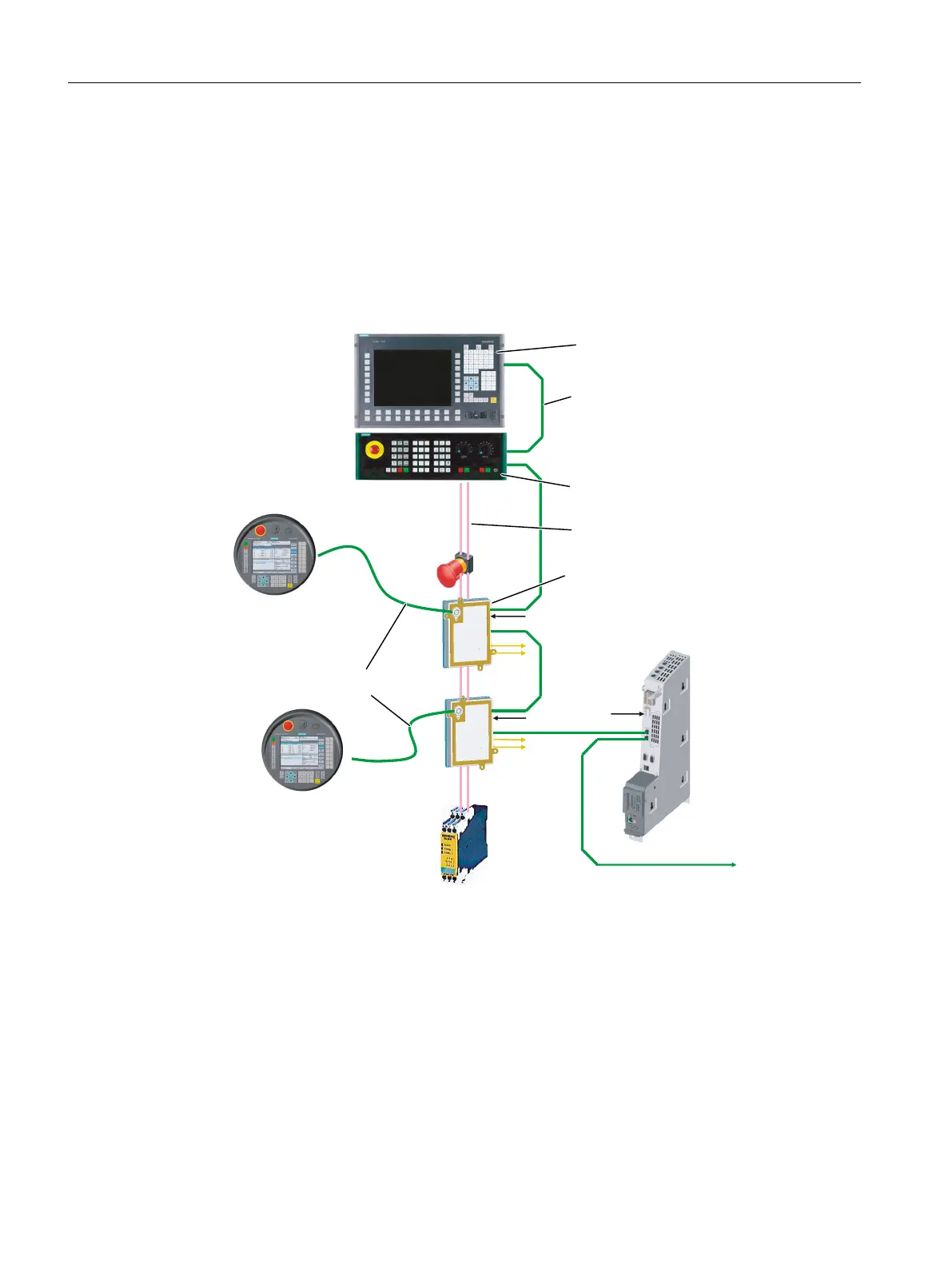

Figure 5-5 System configuration (example)
The connection module Basic PN is not hot plug-capable.
The HT 8 can either be connected directly to the NCU or to the PCU as thin client.
5.3.2 interfaces
The connector for the HT 8 is provided at the front of the PN connection module.
The other interfaces of the connection module are located at the rear:
Connecting
