Technical Instructions LMV Series
Document No. LV5-1000
Section 1 Page 10 SCC Inc.

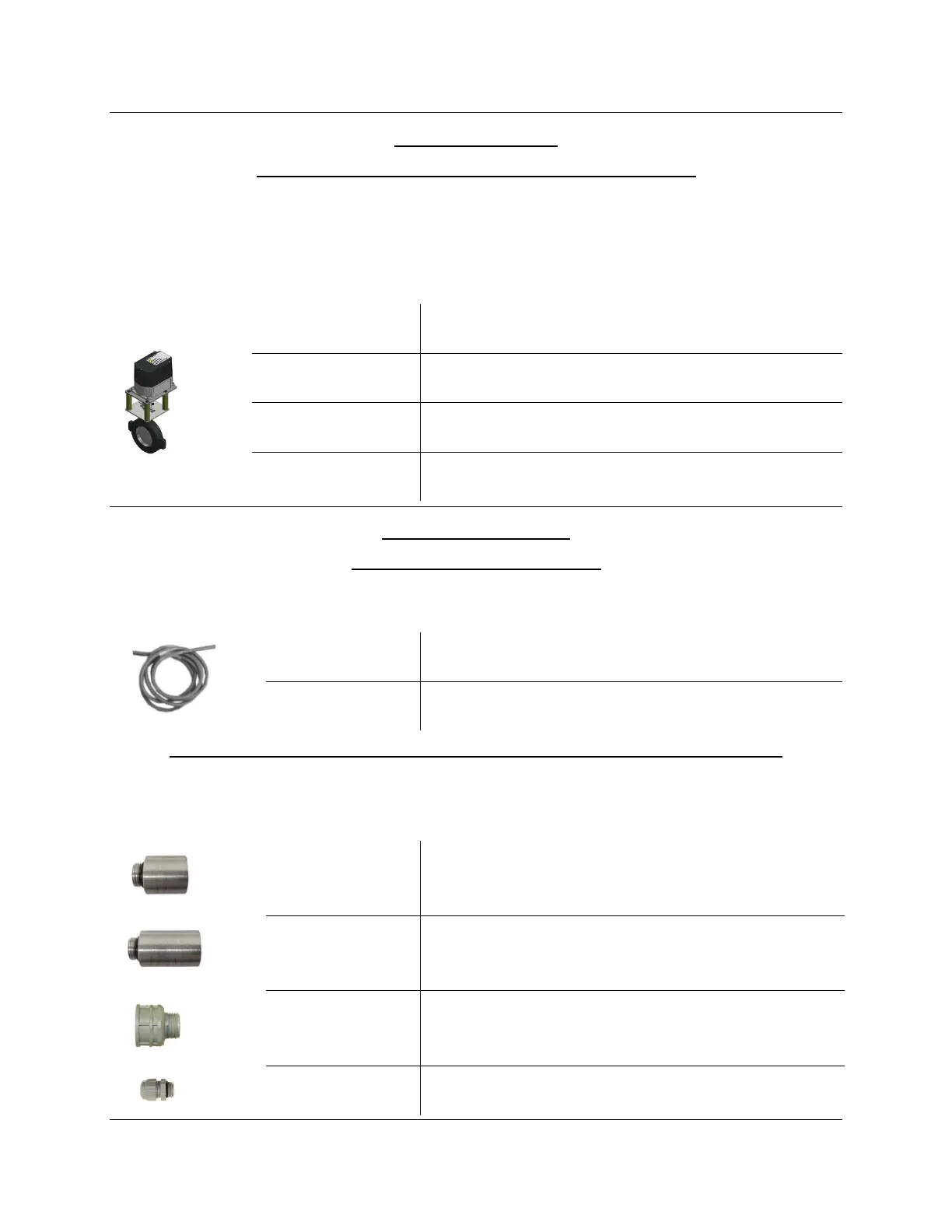

FGR Control Valve
Valve Actuator Assemblies – Qty (1) Required if Using FGR
Pre-built FGR valve actuator assemblies are available to mount an SQM45… or SQM48…
actuator to a high-temperature VKF… butterfly valve. The most commonly used assemblies are
listed below. For a list of all assembly options, see Document No. VA-3000. For more
information on VKF valves, refer to Document No. CVLV-1000. Contact SCC if an FGR valve
actuator assembly larger than 8” is required.
VA48.4-3.0VKF-HT
SQM48 to 3” high-temp VKF valve assembly
VA48.4-4.0VKF-HT
SQM48 to 4” high-temp VKF valve assembly
VA48.4-6.0VKF-HT
SQM48 to 6” high-temp VKF valve assembly
VA48.4-8.0VKF-HT
SQM48 to 8” high-temp VKF valve assembly
Actuator Accessories
CANbus Cable – Qty (1) Required
Special cable is used to connect the actuators and O
2
module to the LMV5. This cable may be
purchased in 100’ or 500’ rolls.
AGG5.643(100) 100’ roll of CA
Nbus cable
AGG5.643 500’ roll of CANbus cable
Electrical Cable Cord Grips and Conduit Adapters – Qty (2) Required Per Actuator
SQM45…, SQM48…, and SQM91… actuators come with two M16 threaded electrical
connections. Various adapters are available to convert these connections to an English thread.
One short and one long adapter are recommended per actuator to offset conduit connections.
ADP-
M16XE500(5)
5-pack of short M16 to 1/2” NPSM metal conduit
adapters, compatible with liquid tight or EMT fittings
ADP-M16XE500-
LONG(5)
5 pack of long M16 to 1/2” NPSM metal conduit
adapters, compatible with liquid tight or EMT fittings
7466201040
M16 to 1/2” NPSM nylon conduit adapter,
compatible with liquid tight or EMT conduit fittings
7466200470
M16 nylon cord grip
