TechnicalInstructions  LMVSeries
DocumentNo.LV5‐1000
Section5 Page8 SCCInc.



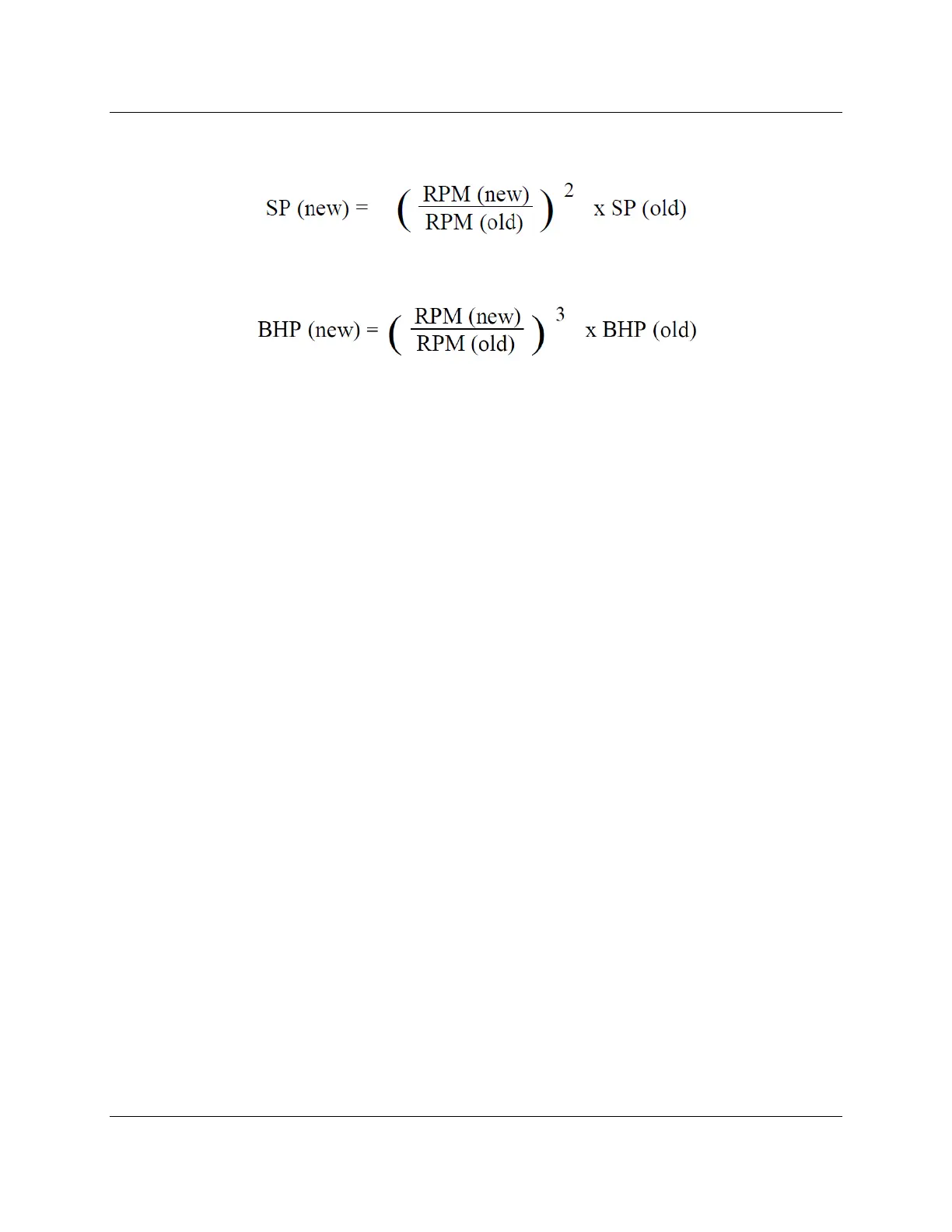

2. Thestaticoutputpressureoftheblower(SP)variesbythesquareofthechangeinRPM:



3. Therequiredbrakehorsepoweroftheblower(BHP)variesbythecubeofthechangeinRPM:



Example:Ablowerspinningat1750RPMproduces10inWCofstaticpressure,4500CFMofflow,and
requires20BH
P.WhathappensiftheRPMisincrea
sedto2750RPM?

Assumptions:Airdamperiswideopen,andsystemeffects(suchastherestrictionduetotheboiler's
heatexchanger,theburner’s diffuser,etc...)arenottakenintoaccount.

Flow:  CFM(new
)=(2750/1750)*4500=7071CFM

Pressure: SP(new)=(2750/1750)
2
*10=24.7inWC

Power: BHP(new)=(2750/1750)
3
*20=78BHP

ConfiguringVFDsforusewiththeLMV52

ModernVFDstypicallyhavehundredsofparametersthatcanbesettotailortheVFDtoaspecific
application.Asmentionedearlier,therearealsoatleastahundreddifferentmanufacturersofVFDs,
eachofwhichhavetheirownuniqueparameterlist.Duetothesetwofa ctors,SCCInc.offerspre‐
programmedVFDsthatcanbepurchasedwiththeVFDparameterssetupforusewithanLMV52.

IfaVFDforusewithanLMV52ispurchasedandpr
ogrammedindependently,thefollowingpointswill
serveasageneralguidelineforprogrammingtheVFDfortheLMV52application.Notethatthis
guidelineisnecessarilygeneralduetothevarietyofVFDs offeredinthemarketplace.

1. IfaVectorVFDisused(rec
ommended),setthe"ControlMethod"toOpenLoopVectormodeor
equivalent.

2. Thestoppingmethod(aftertherun/stopcontactisopened)shouldbesetto"CoasttoStop"tolet
themotorcoasttoastopafterpost‐purge.

3. Reverseoperation(theabi
litytoreversethemotorwith an input)shouldbedisabled.

4. ConfiguretheVFDtoacceptanexternalrun/stopsignalviathedrycontactontheLMV52.


