TechnicalInstructions  LMVSeries
DocumentNo.LV5‐1000
Section6 Page12SCCInc.






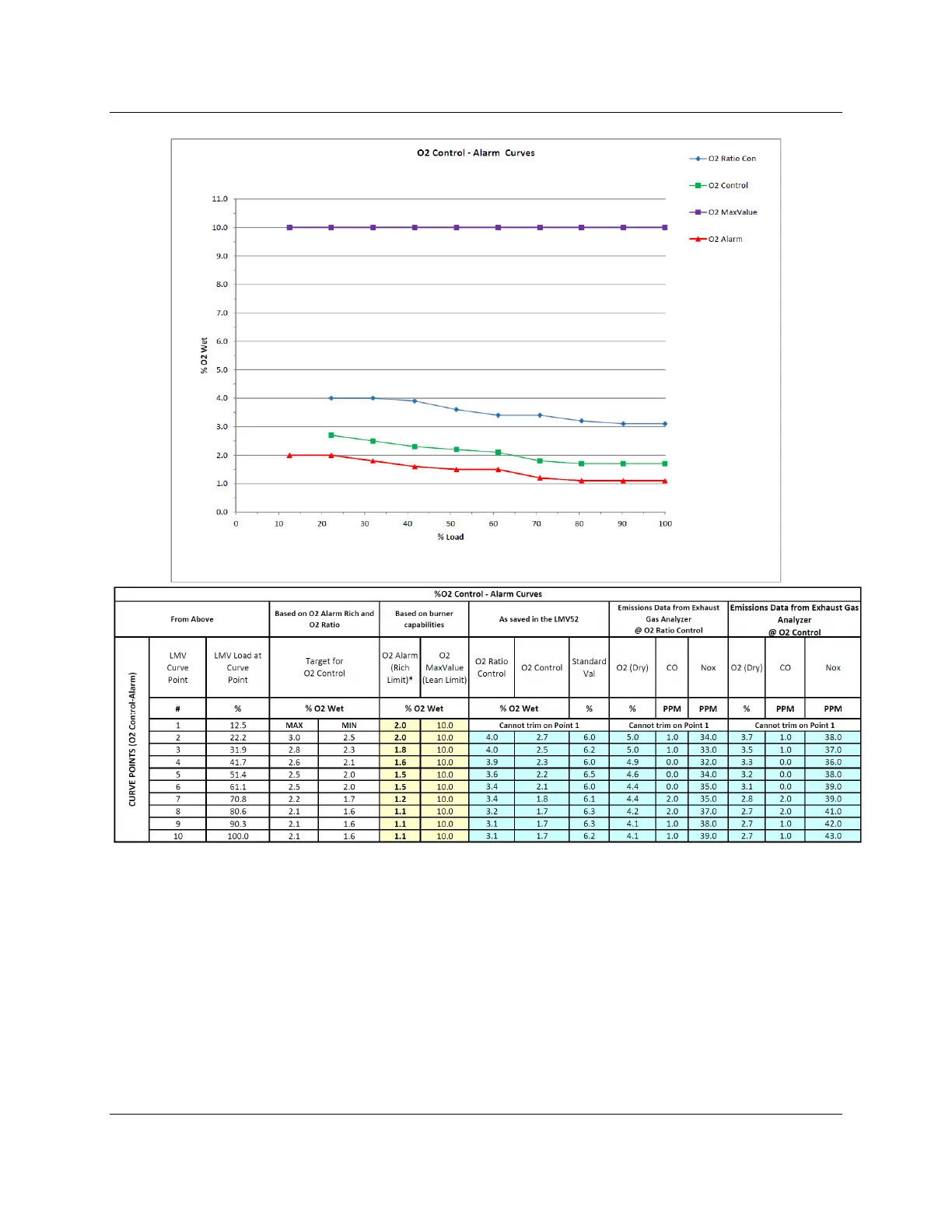

Figure6‐4:ExampleofTypicalO
2
ControlCurves‐NozzleMixingBurner(NoorLow%FGR)

Thecurvesaboveillustratetraitsthatarecommontomostnozzlemixingburners.Theseare:

 Widestabilityband‐8%O
2
ormorebetweentherichandleanlimits
 Curvesdecreasein%O
2
fromlowfiretohighfire
 1%O
2
ormorebetweentheO
2
RatioControlCurveandtheO
2
ControlCurve(accurateLambda
Factor)
 O
2
ControlCurveclosetorichlimit(minimize%O
2
tomaximizeburnerefficiency)
 Curvesaresetupforefficiency(NOxemissionsarenotapriority)
 LMV52.240O
2
trimsystemadequateforthistypeofsetup

