Siemens LMV51.140C1 Technical Instructions

TechnicalInstructions  LMVSeries
DocumentNo.LV5‐1000
Section6 Page30SCCInc.


3. Ifthefixedairinletdampe rand/ orthefixedstackdamperareadjustedtoprovideadequate
differentialpressureacrosstheFGRvalveatlowfire,pressuredropsacrossthesefixeddampersat
highfirewillbehigh,re quiringalargerblower.

Smallpressurechanges(pressureinsideaboilerroomvsthepressureinthestack)arecommon.These
aretypicallyduetodoorsbeingopenedandclosedin
theboilerroomandconvectiveeffectsinthe
stack.Dependingontheinstallation,thesechangesmightbenon‐existentortheymightbeaslargeas
2”WC.WiththearrangementshowninFigure6‐12,evensmallpressurechangescancausetheFGR
flowtobenon‐repeatable.A
fewexamplesaregivenbelow:

Example:Atlowfire,thedifferentialpressureacrosstheFGRcontrolvalveis0.2"WC.Someexternal
changeincreasesP1by0.2”WC.Thisrepresentsaverysmallabsolutechangeinpressure,buta100%
changeinth
edifferentialpressureacrosstheFGRcontrolvalvewhichwillleadtoalargepercentage
changeinFGRflow.

Example:Athighfire,thedifferentialpressureacrosstheFGRcon trolvalveis6.0"WC.Someexternal
influenceincreasesP1by0.2”WC.Thisrepresentsaverysmallabsolutechangeinpressureanda3.3%
changeindifferentialpressureacrosstheFGRcontrolvalve.Thiswillleadtoanegligib
lepercentage
changeinFGRflow.




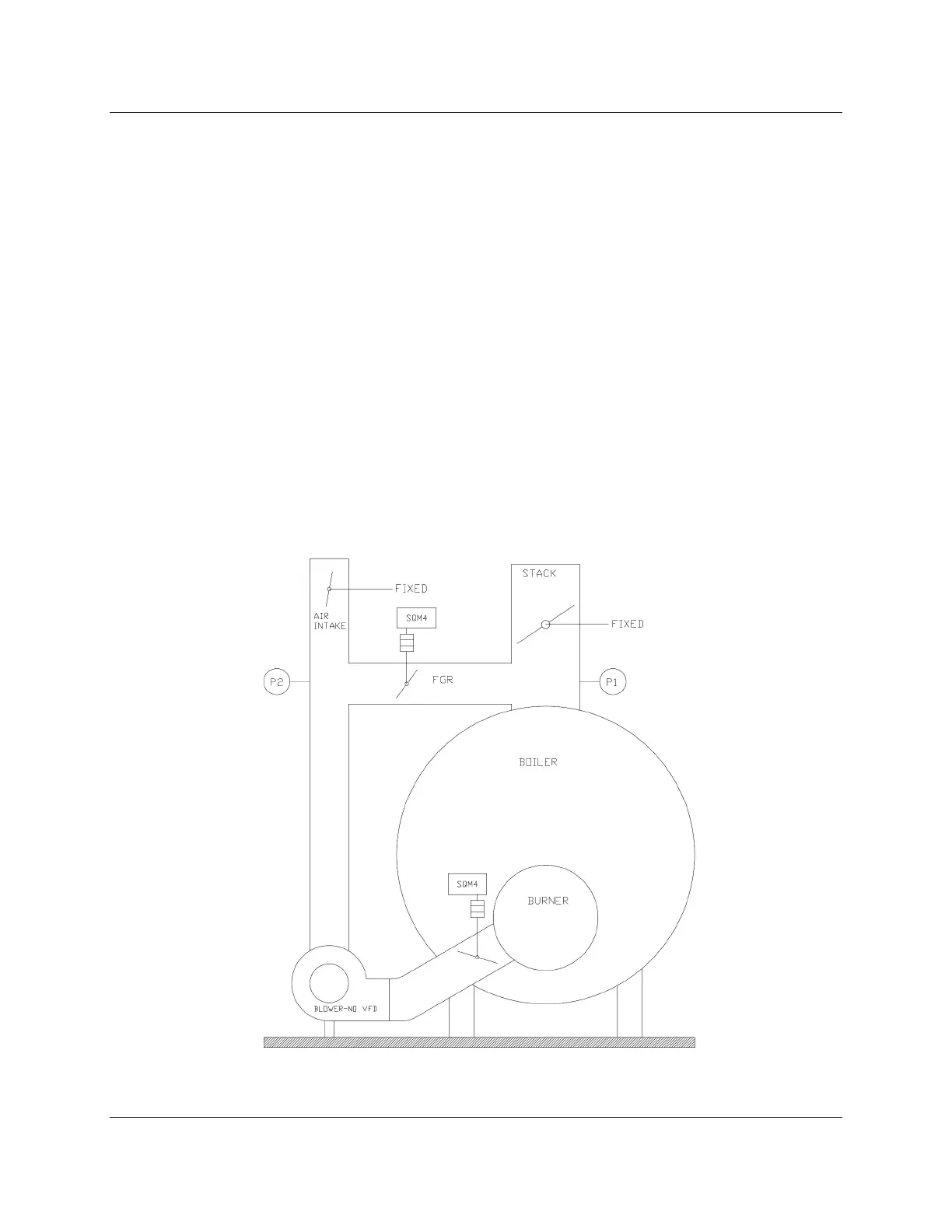

Figure6‐12:FGRBurnerwithnoVFDandanAirDamperontheBlowerOutlet

