Technical Instructions LMV Series
Document No. LV5-100
0
Section 1 Page 18 SCC Inc.

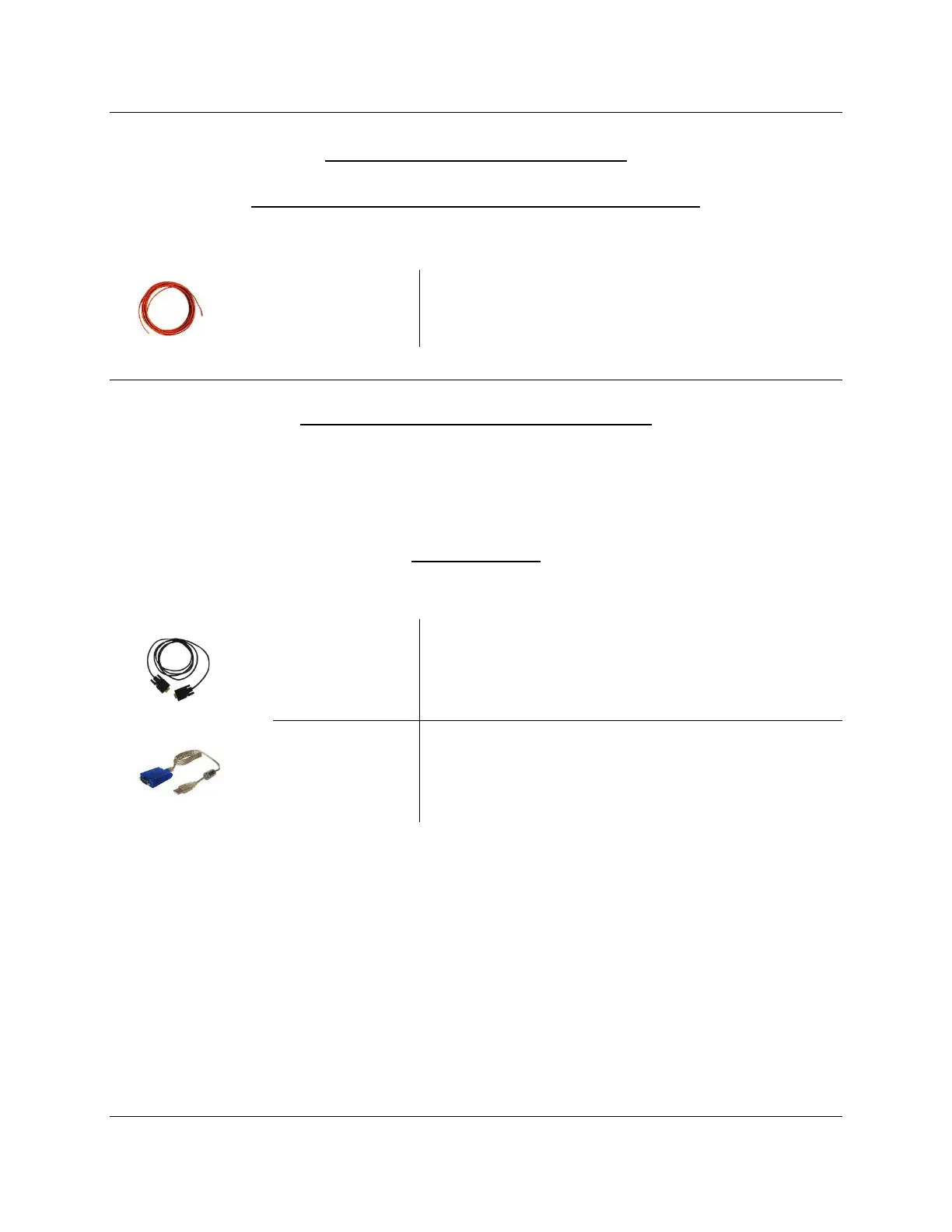

O2 Trim Components (continued)
O2 Sensor Cable – Qty (1) Recommended But No
t Required
An optional cable is available to easily con
nect the O
2
sensor (QGO…) to the O
2
module (PLL…).
C8120(35)
6-conductor, 18 AWG, shielded cable t
o connect the
O
2
sensor to the O
2
module, 35 feet long
ACS450 Software for Laptop (Optional)
The ACS450 software for the LMV5
offers many features including parameter backups, startup
reports, AZL software updates, and trending. The software may be downloaded at
www.scccombustion.com.
Cables - Optional
To use the ACS450 software, cables are necessary
to connect the AZL display to a PC.
P454-006
Null modem cable, 6 feet long, 9-pin male to 9-pin
female DB9 connection, connects AZL to PC serial
port
ACS-AC-
FTDIUSB1
USB-to-serial adapter with FTDI chipset,
used in
conjunction with null modem cable to connect AZL
to PC USB port for PCs with no DB9 serial port
