5.2 Airless Oven Heaters
The airless oven configuration uses the medium power relay configuration. There are two
heaters located in each oven. They slide in from the front of the oven through a diagonal shaft
in each side of the oven. The wiring connections are located on the top end of the heater which
sticks out of the top of the oven in the purged area of the mezzanine. A threaded retainer cap
is inserted in the shaft after the heater to keep it in place. Apply a small amount of Loctite silver
Grade Anti-Seize 76732 or equivalent to the heater retainer cap.
Heaters
Left Oven
Heaters
Right Oven
Heater
Retainer Caps
Heater
Retainer Caps

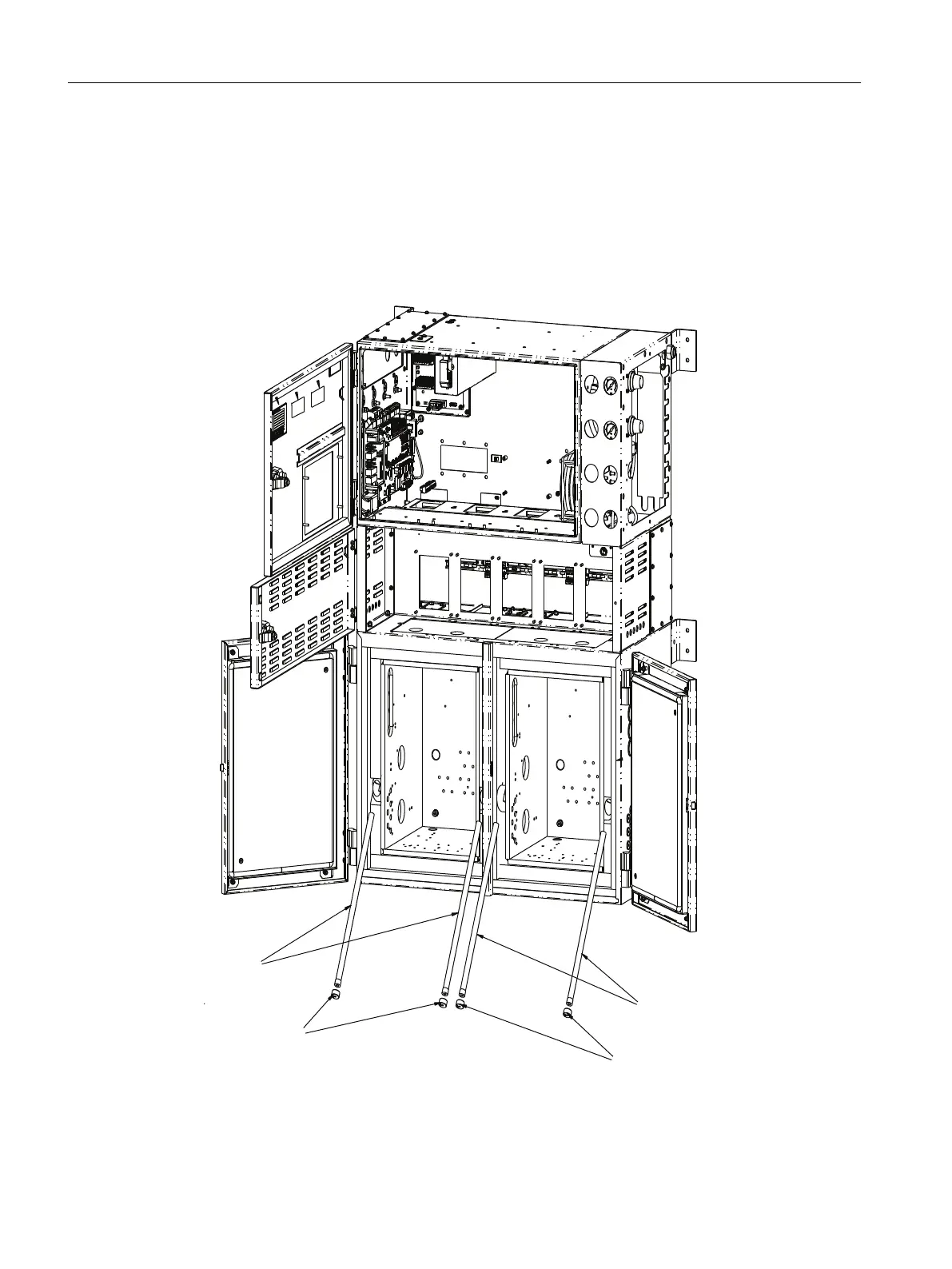

Figure 5-3 Airless Oven Heater Locations
Heaters
5.2 Airless Oven Heaters
Maxum II Valves and Oven Components
106 Service Manual, 10/2018, A5E42019844001
